Originals
9
1
v Exposure glass
v ADF
Note
r When you copy custom size originals, make sure you specify the size of the
originals. If not, the image may not be copied properly. See p.14 “Placing cus-
tom size originals”.
Sizes difficult to detect
It is difficult for the machine to detect the sizes of the following originals, so se-
lect the paper size manually.
• Originals with indexes, tags, or other projecting parts
• Transparent originals such as OHP transparencies or translucent paper
• Dark originals with a lot of text and drawings
• Originals which partially contain a solid image
• Originals which have solid images at their edges
Missing Image Area
Even if you place originals in the ADF or on the exposure glass correctly, 3 mm
(0.1”) margins on all four sides might not be copied.

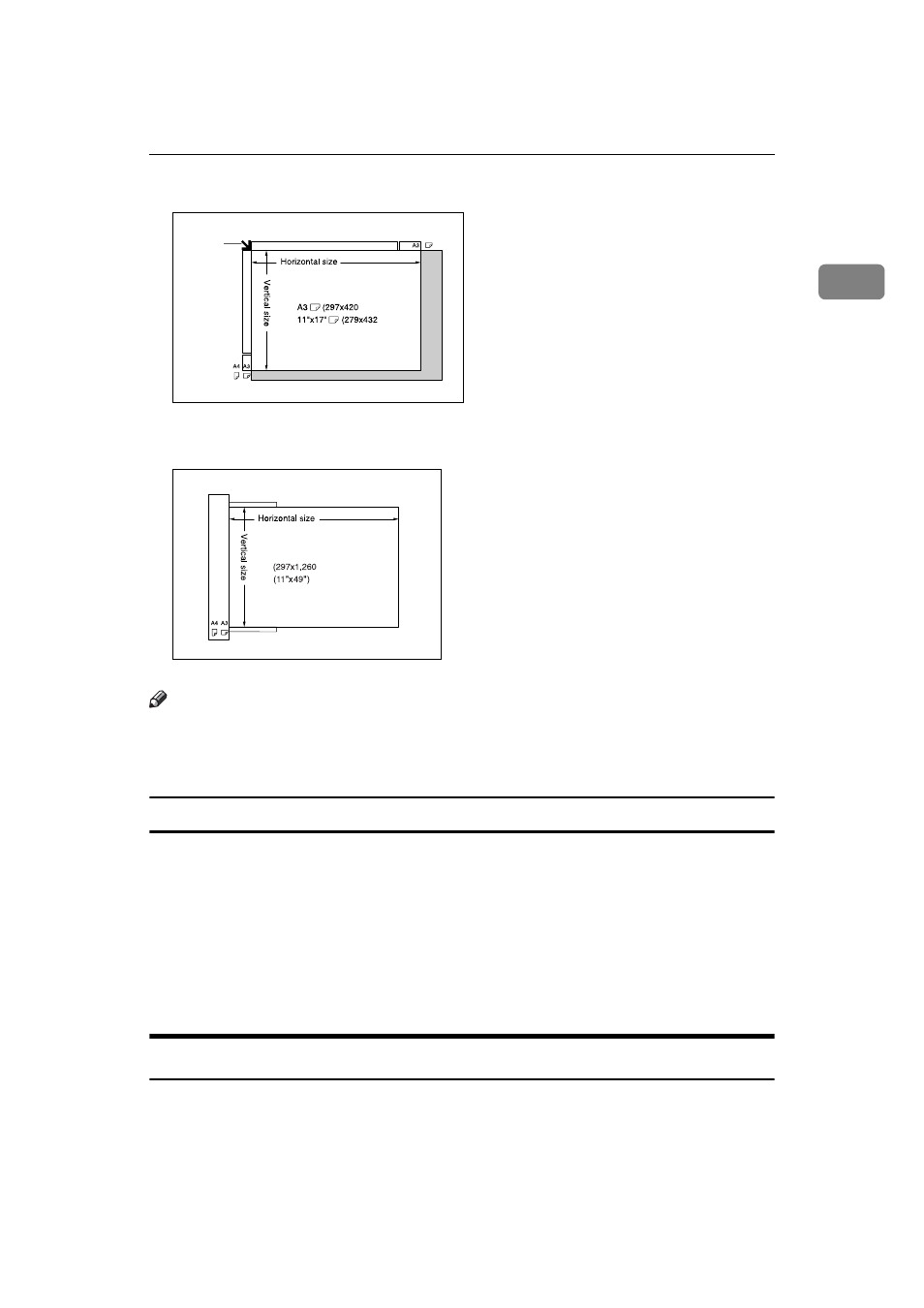

GCSIZE1E
Positioning
mark
Maximum scanning area
mm)
mm)
GCSIZE2E
Maximum scanning area
mm)
