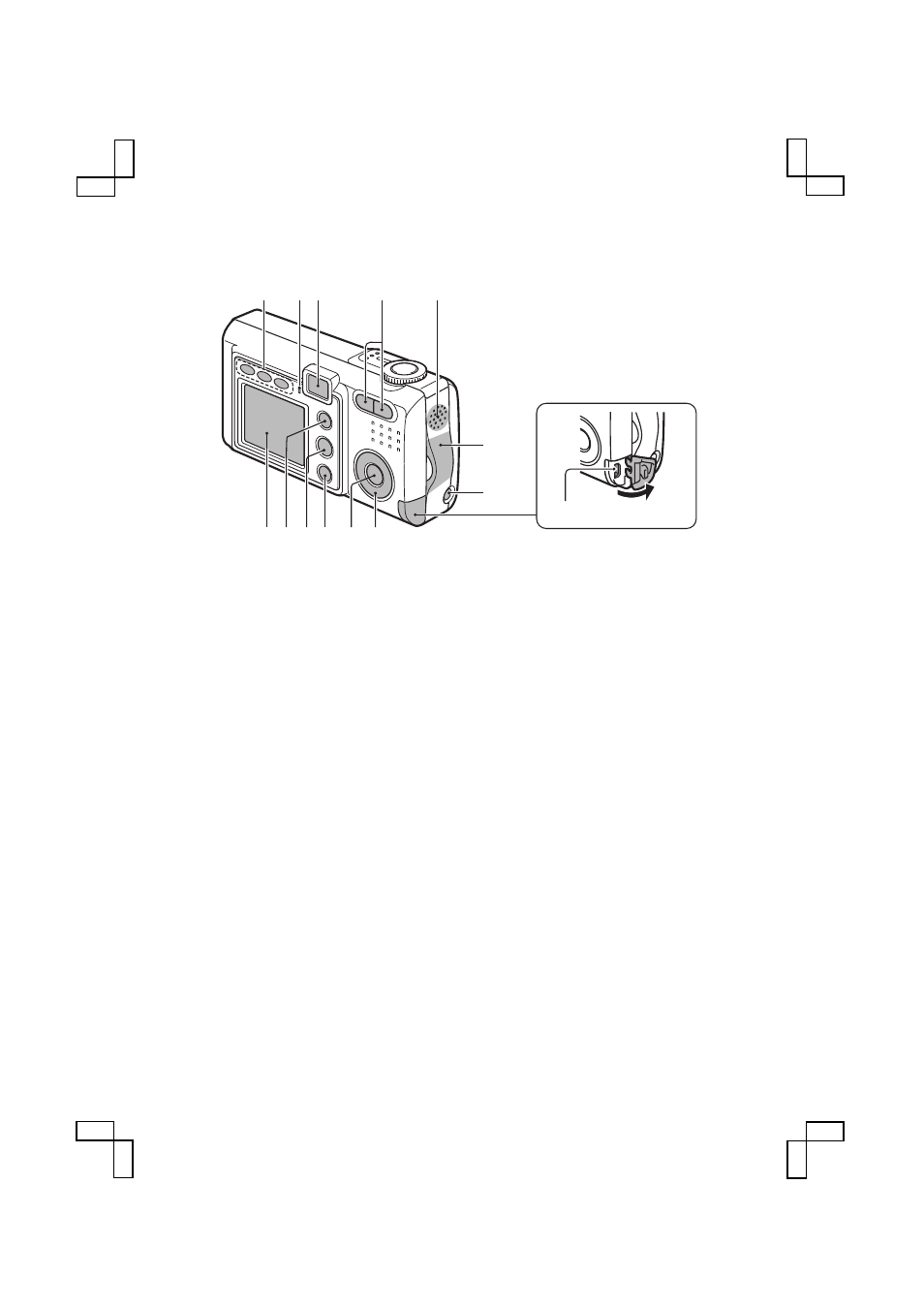

Rear
1 Mode indicator
Ï
: Still image mode
Ñ : Sequential shots mode
Ò
: Video clip mode
2 Accessing indicator
(red/green/orange)
Red flashing:
œ When charging the flash; when no card,
an unformatted card, or a locked card is
installed (indicates that image or sound
cannot be recorded); or when recording
using the self-timer (page 64)
Red steady:
œ When the memory is full (indicates that
image or sound cannot be recorded),
when recording using the self-timer, or
when the battery power is consumed
Green flashing:
œ When using the exposure correction or
digital zoom functions (indicates that
image and sound can be recorded), or
when the power save function is activated
Green steady:
œ When images and sound can be
recorded, when connected to a PC or
printer, when printing, or when set to the
PC camera mode
Orange steady:
œ When recording images or sound
3 Viewfinder
4 Zoom switch
5 Speaker
6 Handstrap holder
7 DC IN (external DC power
input) terminal
œ For connecting a separately sold AC
adapter (model VAR-G6EX for the
VPC-J1EX, model VAR-G6E for the
VPC-J1EX [for U.K.] and model
VAR-G6U for the VPC-J1)
8 DIGITAL/AV terminal
œ Used as both the USB connector and AV
output terminal.
9 Arrow button
F SET button
G Flash button
H MENU button
I MODE button
J LCD monitor
1 23 4 5
6
7
8
9 F G H I J
