5-1 Preparations for Playback
An FPU (Field Pickup Unit) allows the playback
signal from this unit to be radioed back to a
broadcasting station.
MODE switch
The MODE switch must be in the PB/EE position.
Audio signals
Audio signals from the DVW-250/250P to the FPU are
output through channels 3 and 4 of the AUDIO OUT
connectors.
Connections and settings
The following figure illustrates example connections
for transmitting the playback signals by means of an
FPU.

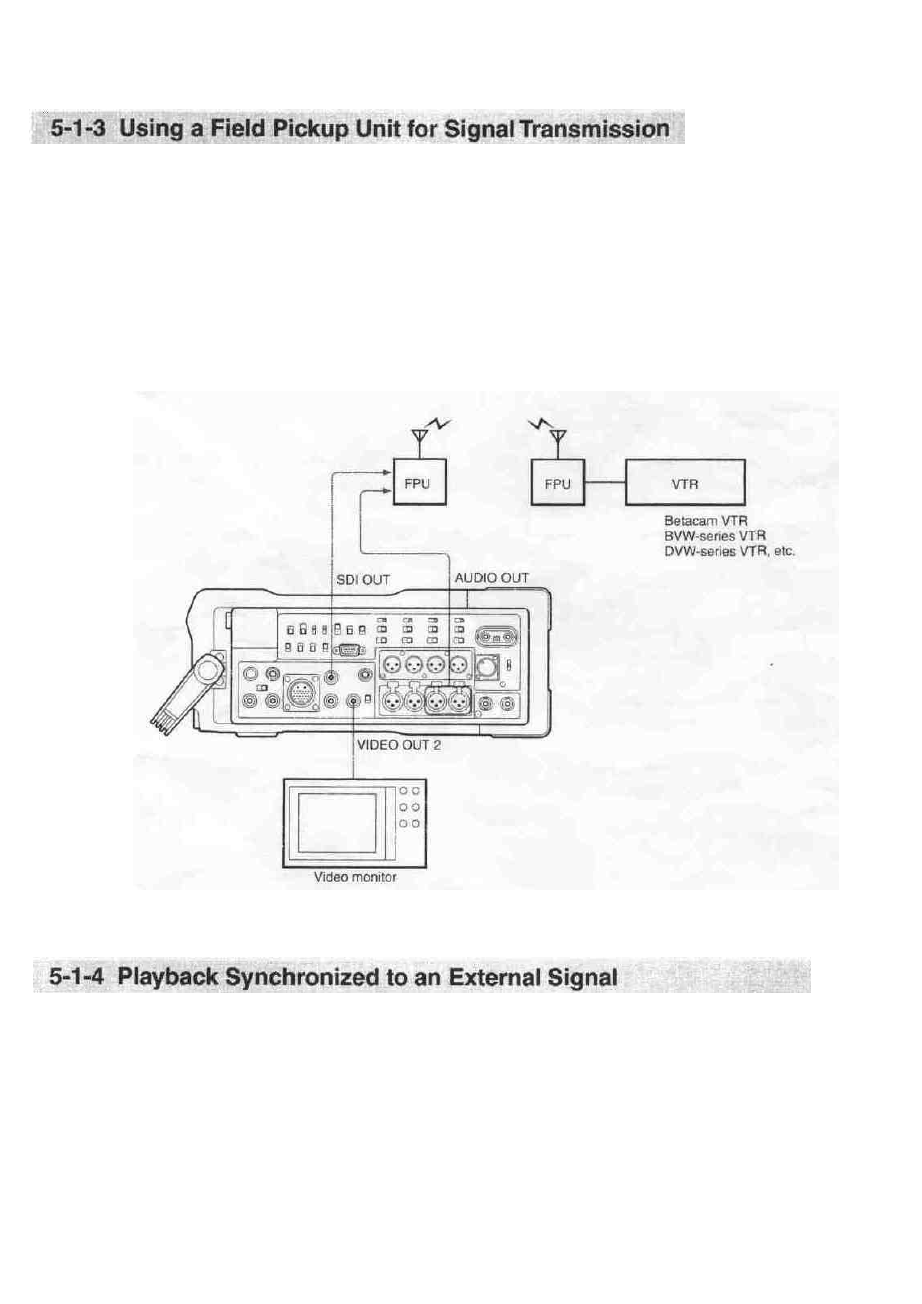

Example connections for transmitting the playback signals via an FPU
Connect the synchronizing input signal to the VIDEO
IN or SDI IN connector, and select the corresponding
connector with the video input selector switch. This
synchronizes playback on this unit to the input signal.
5-2 Chapter SPIayback
