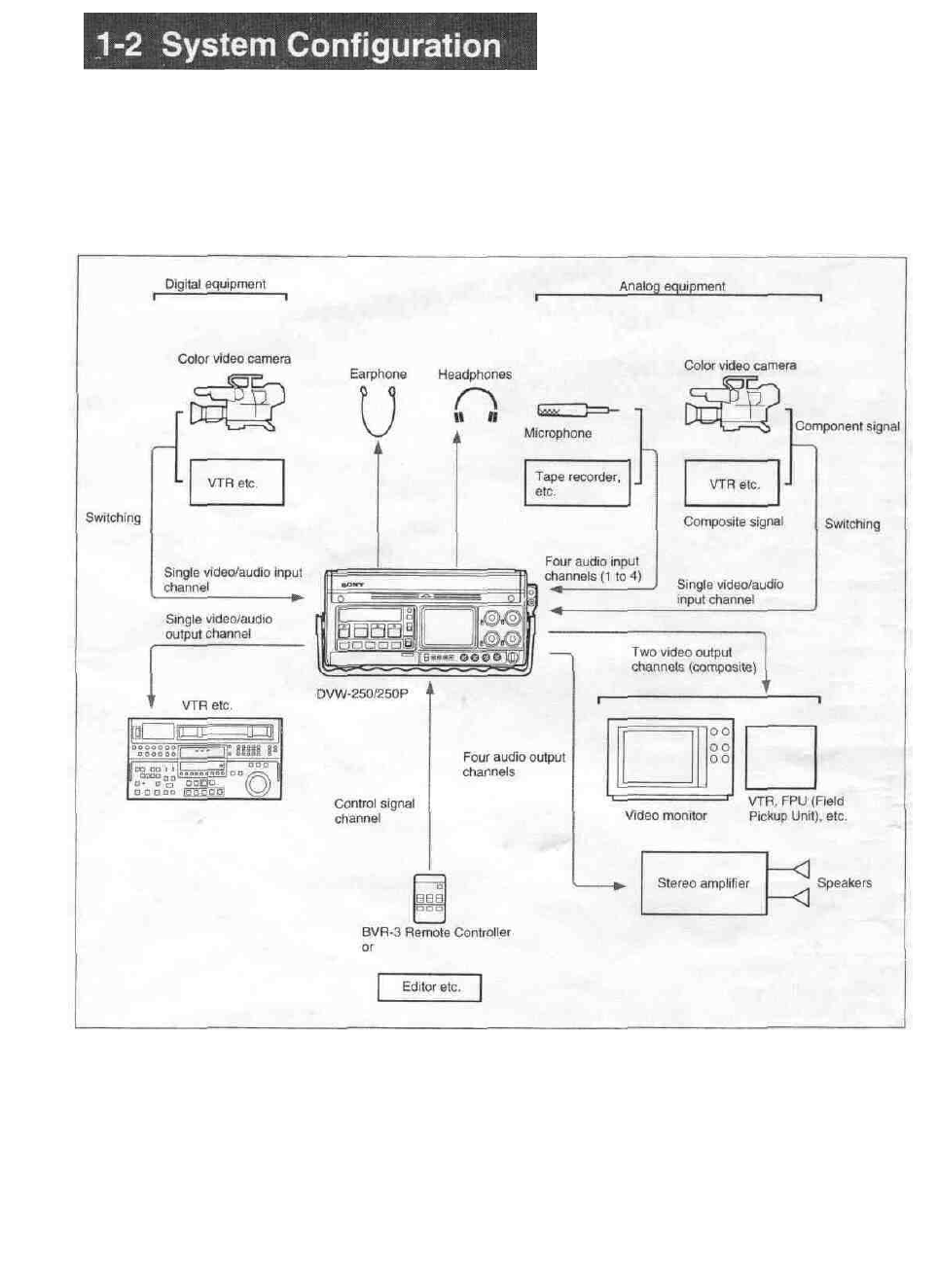

The following figure shows the configuration of a
typical system centered on the DVW-250/250P.

For details, such as the connector names, see Section 4-1-1

"Connecting Digital Equipment" (page 4-1) and Section 4-

1-2 "Connecting Analog Equipment" (page 4-2).

Typical DVW-250/250P system configuration
