Section 2: Installation
GT Series Operator’s Manual Page 2-19
2.3 LOADING LABELS AND TAGS (CONT’D)
2.3.3 Loading Fanfold Paper under the printer

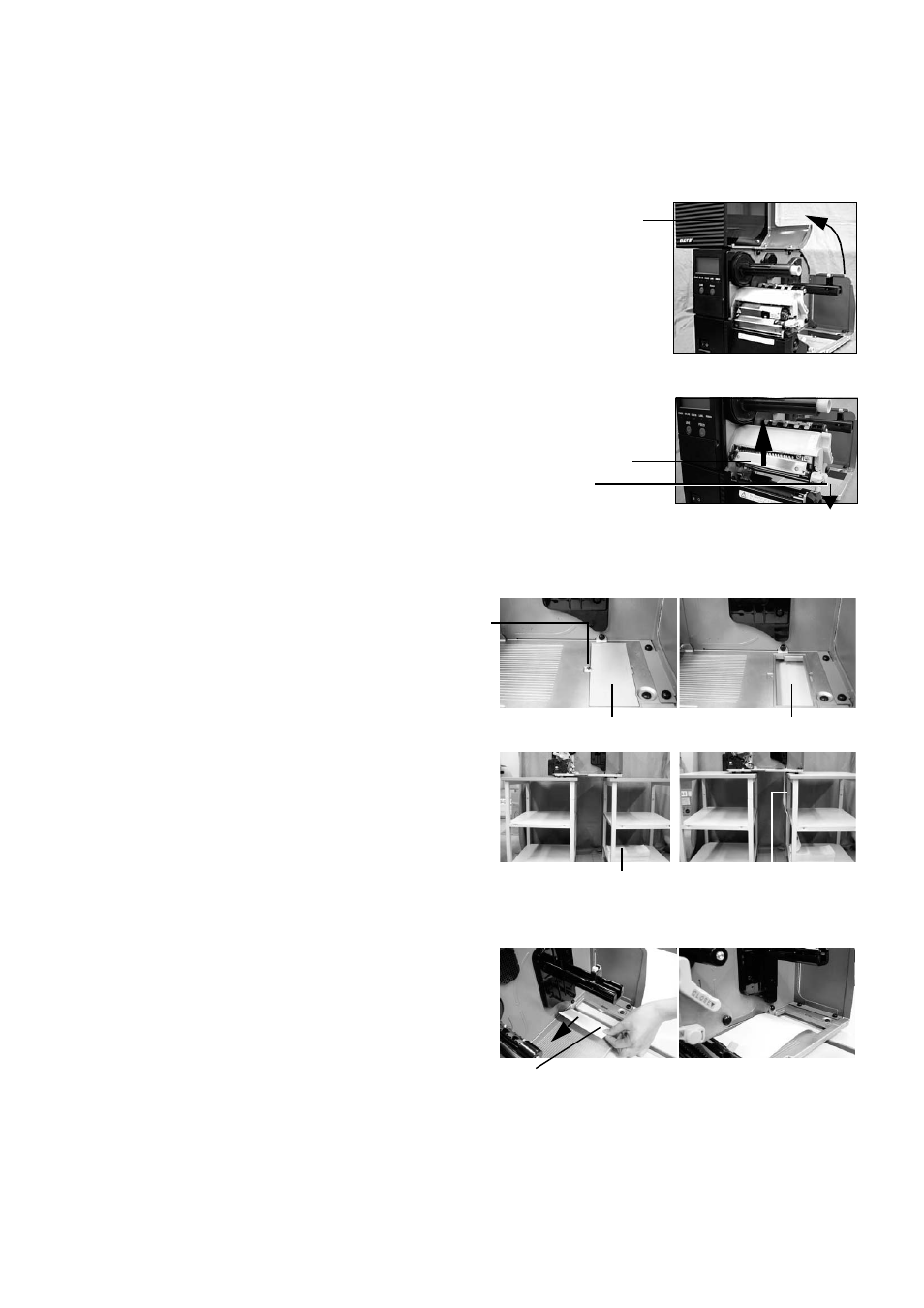

1. Lift up the main cover. Make sure that the cover rests
firmly on the top of the printer so that it will not fall
forward and injure your hands.
Note:
It is assumed that the printer is supported on stands to
allow fanfold paper to be loaded from beneath the
printer.
2. Release the purple head release lever by pushing it
downwards. The print head assembly will be lifted up
to allow label loading later.
3. Unscrew the fanfold cover and remove
it. Keep the cover and the screw in a
safe place for future use.
4. Load the stack of fanfold paper straight
through the fanfold loading slot.
5. Pass the paper through the fanfold
loading slot and pull it into the chassis
near the print head assembly.
Front Cover
Print head
Head
release lever
(purple)
Fanfold
cover
screw
Fanfold cover Fanfold loading slot
Fanfold paper
before loading Fanfold paper
loaded into slot
Pull the paper
into the chassis Paper is now ready to
load under print head
