SECTION 2: INSTALLATION
Page 2-14 GT Series Operator’s Manual
2.3 LOADING LABELS AND TAGS (CONT’D)

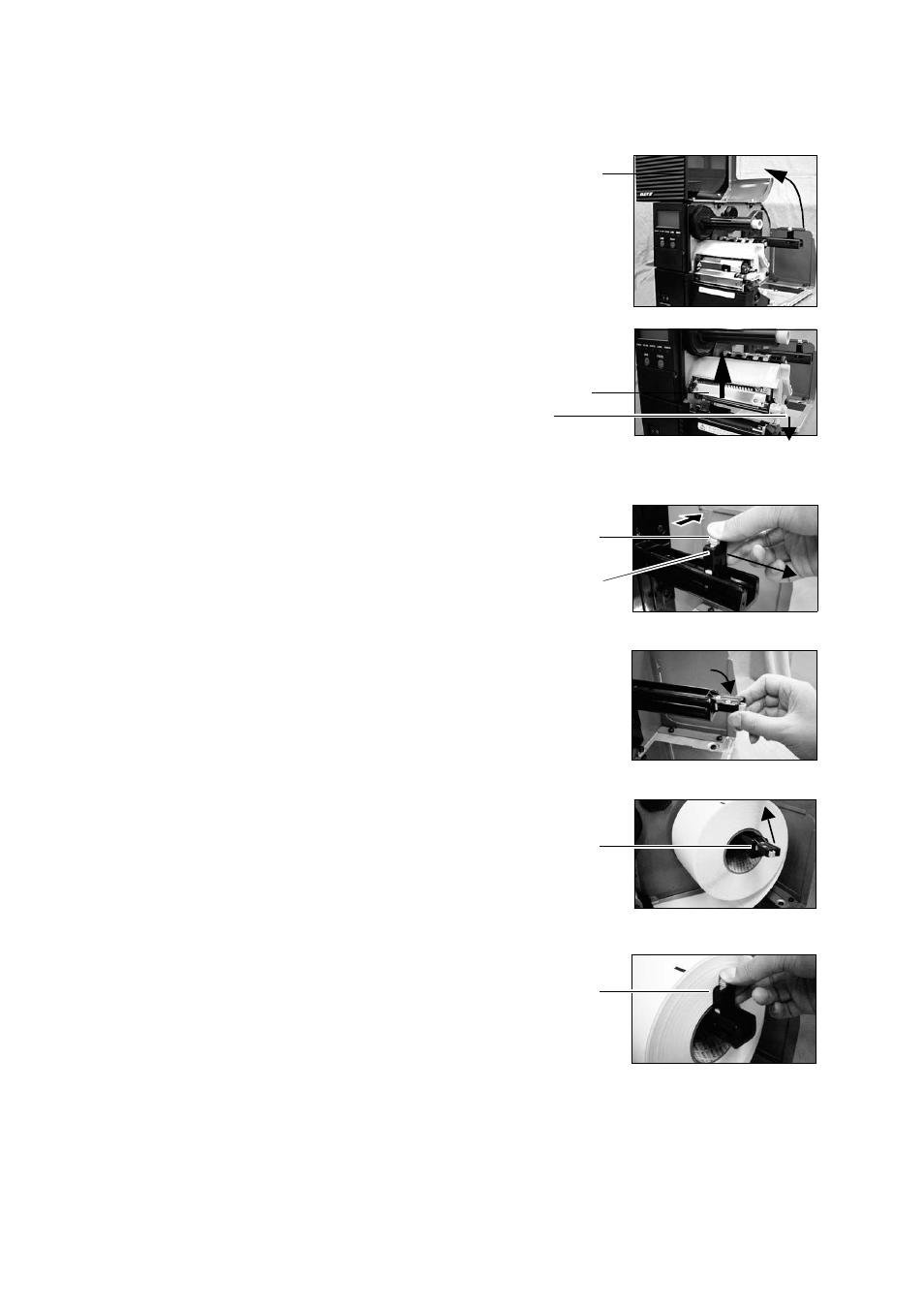

2.3.1 Loading Roll Paper
1. Lift up the main cover. Make sure that the cover
rests firmly on the top of the printer so that it will not
fall forward and injure your hands.
2. Release the purple head release lever by pushing
it downwards. The print head assembly will be
lifted up to allow label loading.
3. Push the spring-loaded purple Roll Guide lever
sideways (to the right) to release the Roll Guide.
Pull the Roll Guide outwards to the edge. Once the
Roll Guide is moved to the edge, it will tilt
backwards to allow a label roll to be inserted easily.
4. Insert the label roll and push the Roll Guide back
into place. Make sure that the Roll Guide pushes
snugly against the label roll to prevent label drift
during printing.
Front Cover
Print head
Head
release lever
(purple)
Roll Guide
Roll Guide
Lever
Release the
Lever to lock
the Roll Guide
in place.
Lift up the
Roll Guide.
Push the
purple lever to
the right and
move the Roll
Guide toward
the label roll.
