7
English
Thank you for your attention.
We hope our Weatherproof monitors are to your satisfaction.

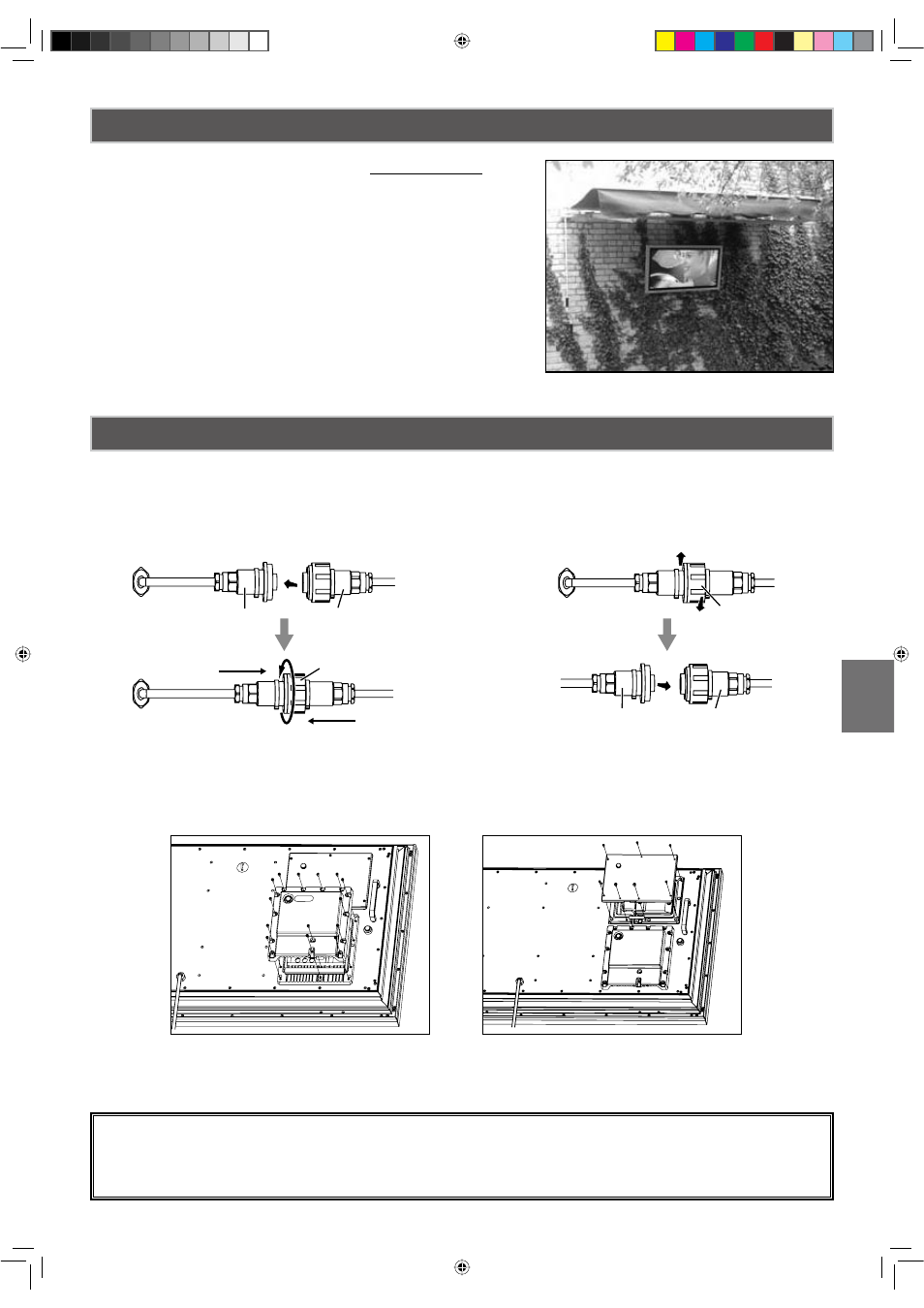

When the monitor installed outside, it SHOULD NOT set
in a position where the screen is subjected to direct sun
light.
If it can’t be done, please prepare adequate shading. Di-
rect sun light can cause the screen surface temperature
WRULVHDERYHWKHPD[LPXPRSHUDWLQJUDQJH
This causes a black shadow to appear on the screen,
which will disappear when the screen temperature returns
WRZLWKLQVSHFLÀFDWLRQ
1. Connect the in-line waterproof AC cord, line up and push together connectors A & B so they are
tight and then twist C until A & B cannot be pulled apart. To disconnect unscrew C and pull con-
nector A & B apart.
2. Remove the covers A for access to connect required cables. Re-position the covers and replace
screws.
If LD Net connection is required remove cover B and connect cable, then re-position cover B and
replace screws.
INSTALLING POSITION
WIRE ASSEMBLY
B
A
B
A
A B
C
A B
C
DO NOT REMOVE SILICA GEL SACHETS FROM INSIDE LD-NET TERMINAL COVER (B)
AND TERMINAL COVER (A).
To Connect To Disconnect
