Installation

38970

The following list is the procedure required to install
the Phillips head screw and tamper-resistant screws:

1. Remove the Phillips head screw from service

door (refer to Figure 19).

2. Remove two screws holding control panel to

control hood (refer to Figure 19).

3. Tilt control panel forward and lay on a protective

pad to prevent scratching of cabinet top.

4. Insert Phillips head screw down through double

“D” hole in left rear corner of cabinet top (inside
control hood) until it engages retainer nut located
on left rear corner gusset of cabinet (refer to
Figure 19).

5. Finger tighten screw.

IMPORTANT: Do not use a power driver to tighten
screw. Torque of a power driver could over-tighten
screw causing damage to cabinet assembly.

NOTE: Tamper-resistant screws, bits and bit
holder are available as optional equipment at extra
cost.

6. Secure control panel to control hood using two

No. 8 tamper-resistant screws, Part No. 35528.

7. Remove two screws holding front panel to base

of washer and install two No. 12 tamper-resistant
screws, Part No. 35527.

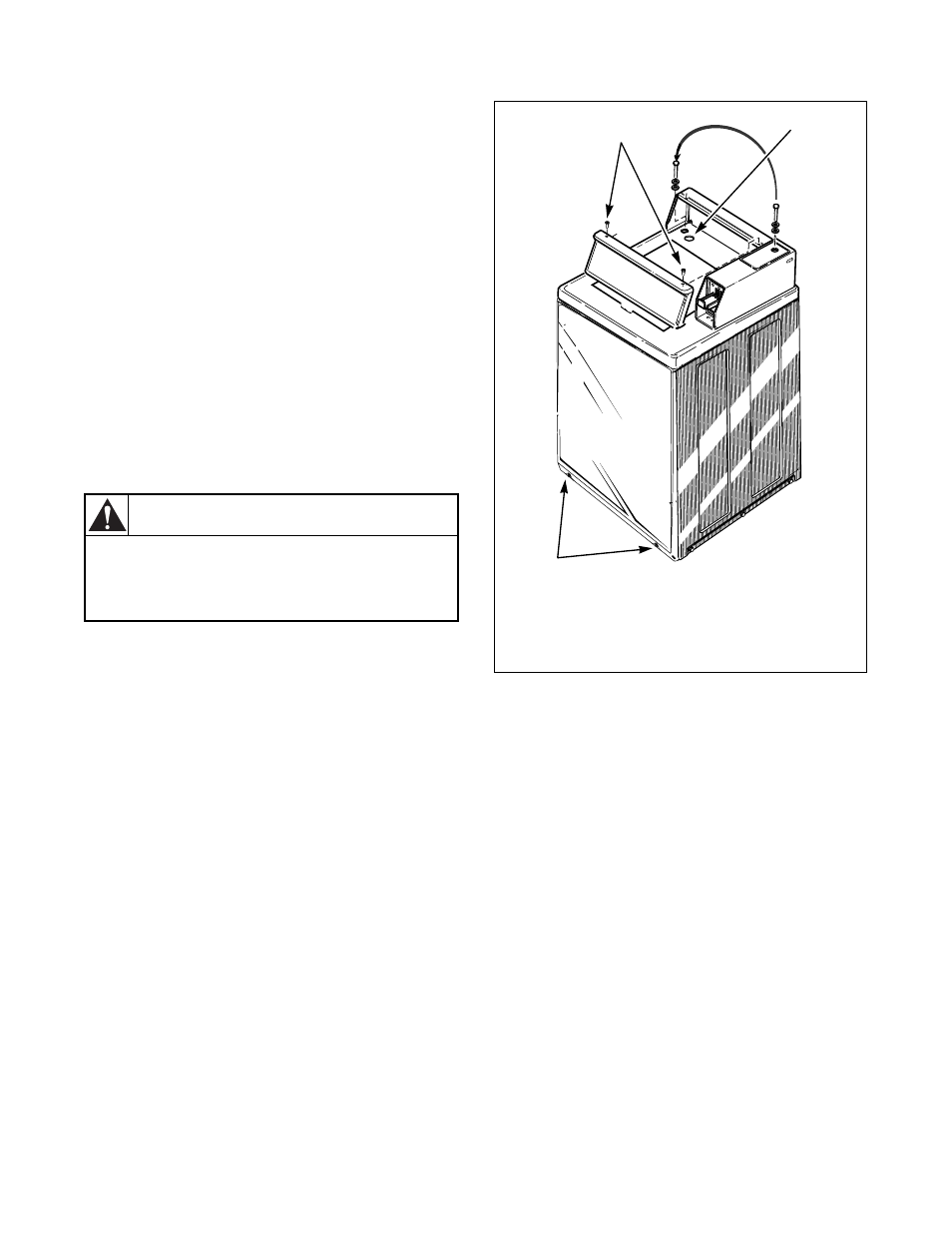

Figure 19

Bit (No. 8 screws) Part No. 281P4

Bit (No. 12 screws) Part No. 282P4

Bit Holder (3/8 drive) Part No. 24161

Control Panel Tamper-Resistant Screw, Part No. 35528

Front Panel Tamper-Resistant Screw, Part No. 35527

Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.

W299

WARNING

W276I

35528 No. 8 Screws

Double “D” Hole

35527 No. 12 Screws

W276I
