Installation
38970 14

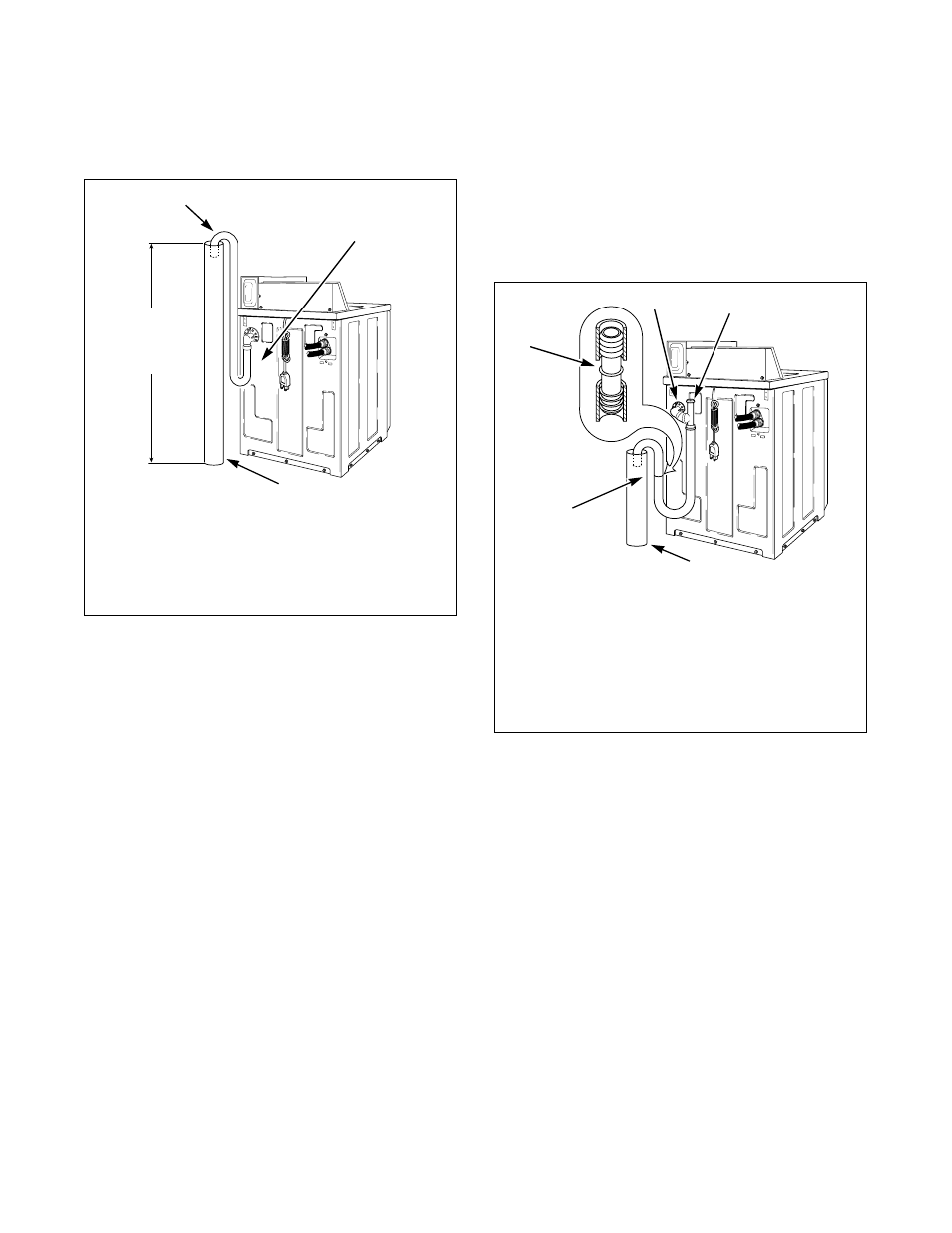

High Standpipe Installation
No. 562P3 Siphon Break Kit and No. 25863 Hose
Coupling are not required for this type of installation.
Figure 7
Low Standpipe Installation
No. 562P3 Siphon Break Kit and No. 25863 Hose
Coupling are required for this type of installation. This
kit is available (as optional equipment at extra cost)
through an authorized dealer or parts distributor.
Installation instructions are supplied with the kit.
OPTIONAL: Raise the standpipe to the recommended
height of 92 cm (36 inches).
Figure 8
W296I
1 Drain Hose
2 Cut drain hose off this end to fit the washer
installation.
3 Standpipe
{
W296I
3
1
MAXIMUM
STANDPIPE
HEIGHT NOT TO
EXCEED 1,5 m
(5 feet)
2
W295I
1 Drain Hose Elbow
2 562P3 Siphon Break Kit
3 Standpipe
4 Cut hose in this area and install No. 25863
hose coupling.
5 25863 Hose Coupling
W295I
{
2
1
5
4
3
