Installation

17

38970

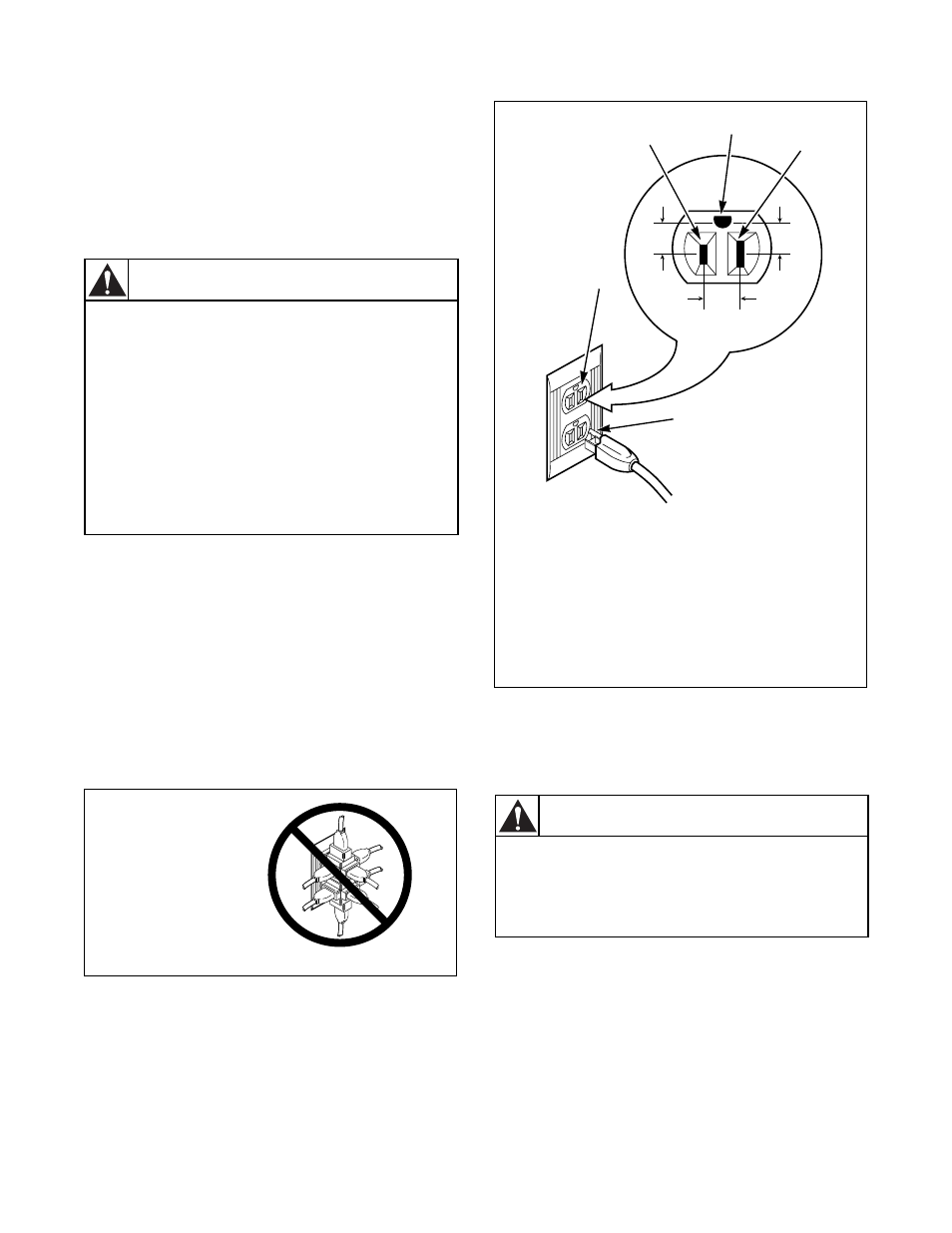

Electrical Requirements

NOTE: The wiring diagram is located in the
control hood.

NOTE: Refer to the washer nameplate for proper
voltage and Hertz the washer is designed to operate
on. Refer to Figure 51
for nameplate location.

120 Volt, 60 Hertz with 3-Prong Grounding Plug

The washer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current), circuit
protected by a 15 ampere fuse, equivalent fusetron or
circuit breaker.

The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 110/120 Volts
AC (alternating current) 15 Amps. Refer to Figure 14
to determine correct polarity of the wall receptacle.

Figure 13

Figure 14

DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT. DO NOT OVERLOAD
CIRCUITS!

D009I

To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA No. 70, and such local
regulations as might apply. It is the
customer’s responsibility to have the
wiring and fuses checked by a qualified
electrician to make sure the laundry room
has adequate electrical power to operate
the washer.

W227

WARNING

DO NOT OVERLOAD

CIRCUITS

DO NOT USE

ADAPTER

DO NOT USE AN

EXTENSION CORD

D799I

1

L1

2

Ground

3

Neutral Side

4

Round Grounding Prong

5

Neutral

1

2

3

4

5

STANDARD 120 VOLT, 60 HERTZ,

3-WIRE EFFECTIVELY GROUNDED CIRCUIT

120 ± 12

V.A.C.

120 ± 12

V.A.C.

0

V.A.C.

To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the washer to the
electric power source.

W082

WARNING
