Chapter 7: BIOS

7-5

IDE Channel 0 Master/Slave, IDE Channel 1 Master/Slave, IDE

Channel 2 Master, IDE Channel 3 Master

These settings allow the user to set the parameters of IDE Channel 0 Master/

Slave, IDE Channel 1 Master/Slave, IDE Channel 2 Master, IDE Channel 3 Master

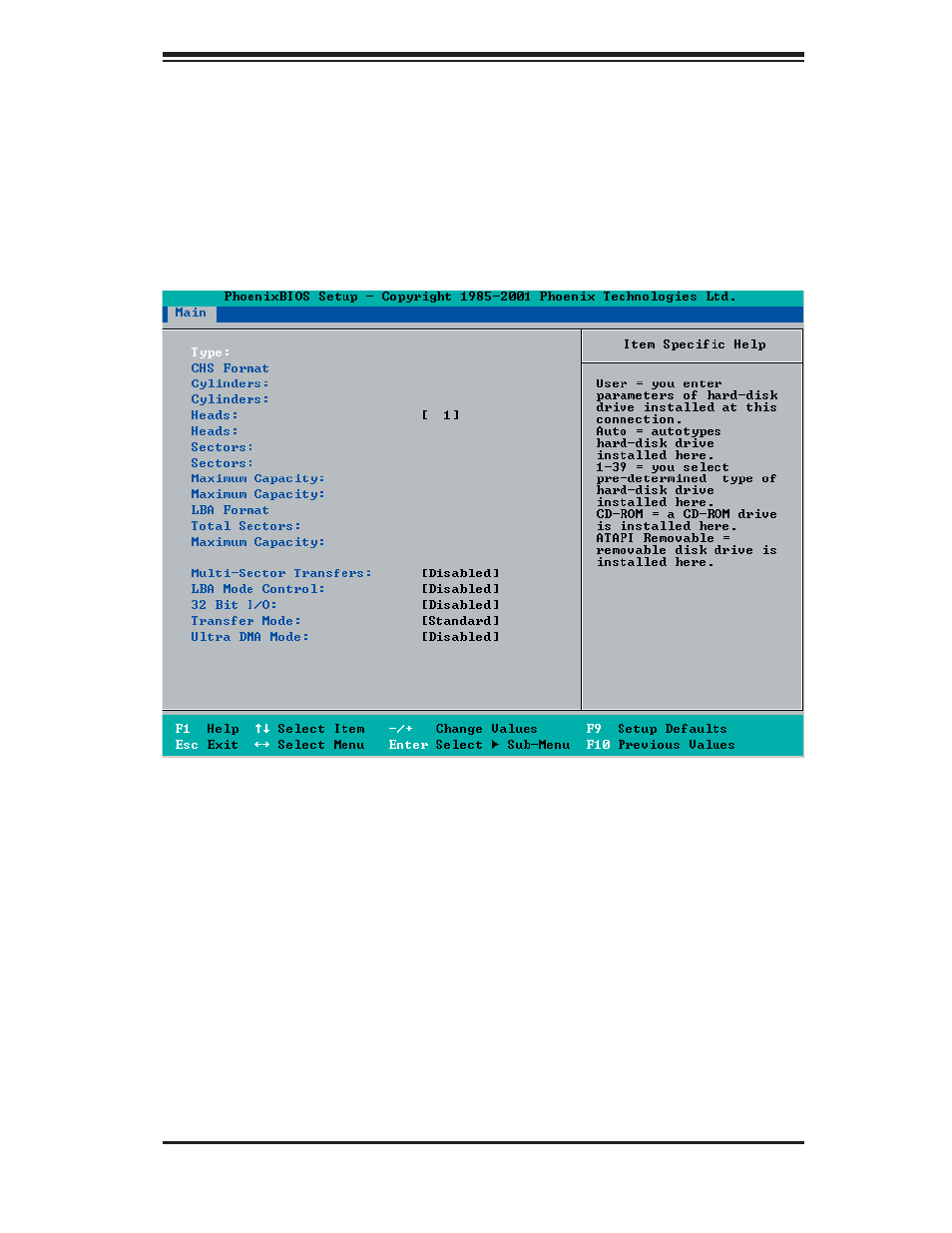

slots. Hit to activate the following sub-menu screen for detailed options

of these items. Set the correct confi gurations accordingly. The items included in

the sub-menu are:

Type

Selects the type of IDE hard drive. The options are Auto, (which allows BIOS

to automatically determine the hard drive's capacity, number of heads, etc.), a

number from 1-39 to select a predetermined type of hard drive, CD-ROM and

ATAPI Removable. The "User" option will allow the user to enter the parameters

of the HDD installed at this connection. The "Auto" option will allow BIOS to

automatically confi gure the parameters of the HDD installed at the connection.

Choose the option 1-39 to select a predetermined HDD type. Select CD-ROM if a

CD-ROM drive is installed. Select ATAPI if a removable disk drive is installed.
