UNPACKING
Remove all parts from the shipping crate and verify that the following parts were included in your shipment:
Description Qty.
Frame Assembly w/ Motor Shroud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Top Rail with Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Neck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Side Rail w/ S
TOP Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Side Rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Button, Plastic** . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Screw, Button Head Socket Cap, 1/4”-28 UNC x 3/8”* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Screw, Socket Head Cap, 5/16”-18 UNC x 1.0”* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Bolt, Hex-head, 5/16”-18 UNC_ x 3.0”** . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Washer, Flat, 5/16” I.D. x 1.5" O.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Washer, Flat, 5/16” I.D. x 1.2” O.D.** . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Washer, Split Lock, 5/16”** . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Screw, 5/16”-18 x 7.5”** . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Hex (Allen) key, 1/4”** . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Hex (Allen) key, 5/32”** . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Screwdriver, Phillips, #2** . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Screwdriver (blade-tip), 3/32”** . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Owner’s Manual with Warranty Registration Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
*Pre-inserted into frame assembly
**Part of included STAR TRAC tool kit.
Should any component not be present or if you have any operational questions, please call Star Trac’s Service department at (800)
503-1221 or USA 1-714-669-1660. Specifically refer to your treadmill serial number and model number listed below:
Serial No._________________________________________________________________________
Model No._________________________________________________________________________
NOTE : The following assembly procedure applies to the PRO S, PRO and PRO ELITE Treadmills. Illustrations show the PRO
ELITE Treadmill only.
ASSEMBLY
The following toools are required for assembly: Hex (Allen) Key, 1/4”; Hex (Allen) Key, 5/32”; Screwdriver, Phillips; Wrench, 1/2”
(not provided). To assemble your STAR TRAC
PRO S / PRO / PRO ELITE TREADMILL , just follow these steps.
NOTE : Don’t fully tighten bolts and screws until all parts are assembled.

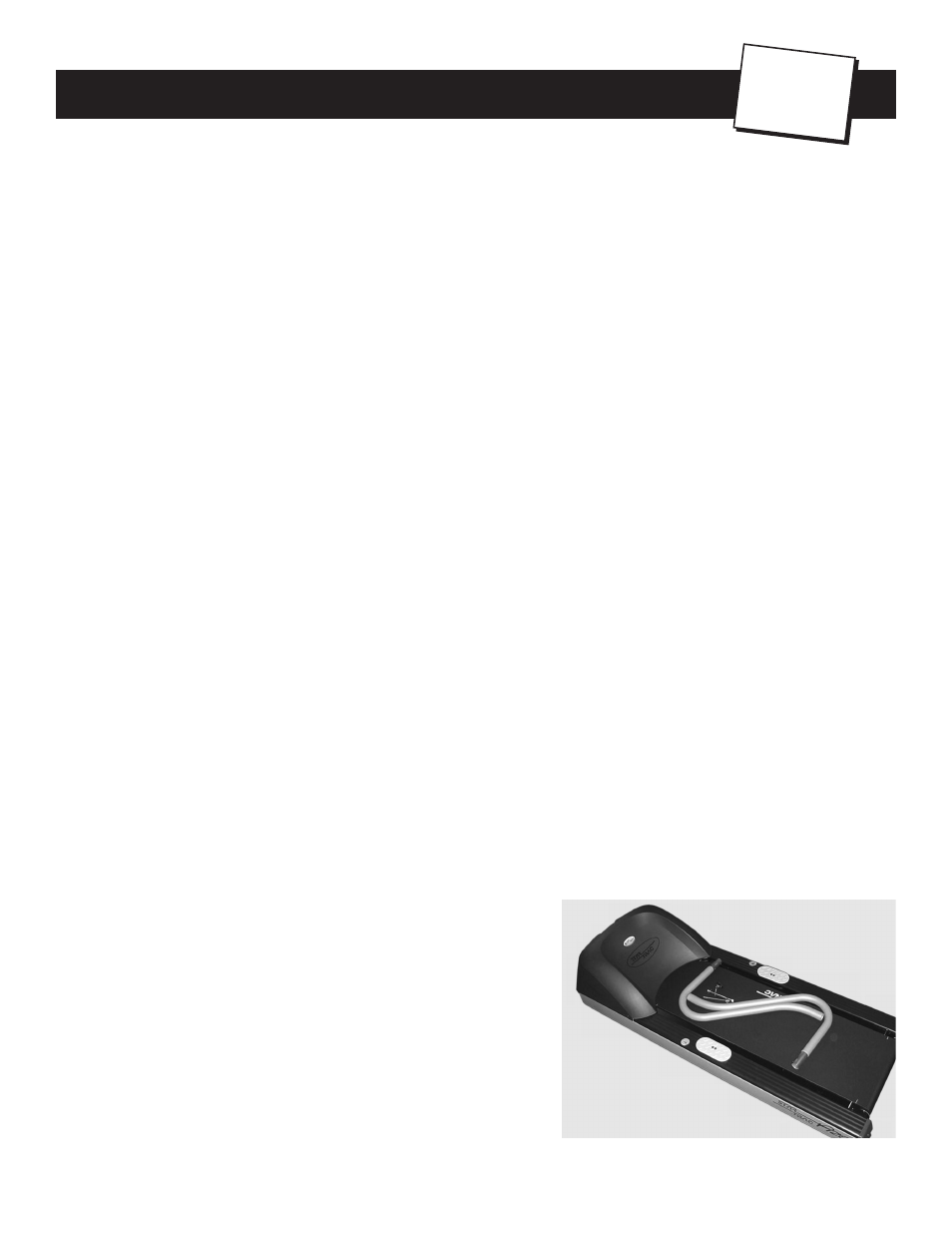

1. Unpacking and Positioning the Frame
Assembly
Remove all the packaging material so the treadmill is sitting,
ready for assembly, on the shipping crate platform. With a helper,
lift the treadmill frame assembly from the shipping crate platform
and place it in the location where it will be used. Make sure the
unit is placed near a power outlet.
Caution: The motor shroud end of the frame assembly is very
heavy. Two people may be needed to lift this end when moving the
frame assembly.
A
SSEMBLY AND
S
ETUP
C
HAPTER
2
STAR TRAC PRO S / PRO / PRO ELITE TREADMILL O
WNER
’
S
M
ANUAL
11
Step 1
