PREPARATION

■

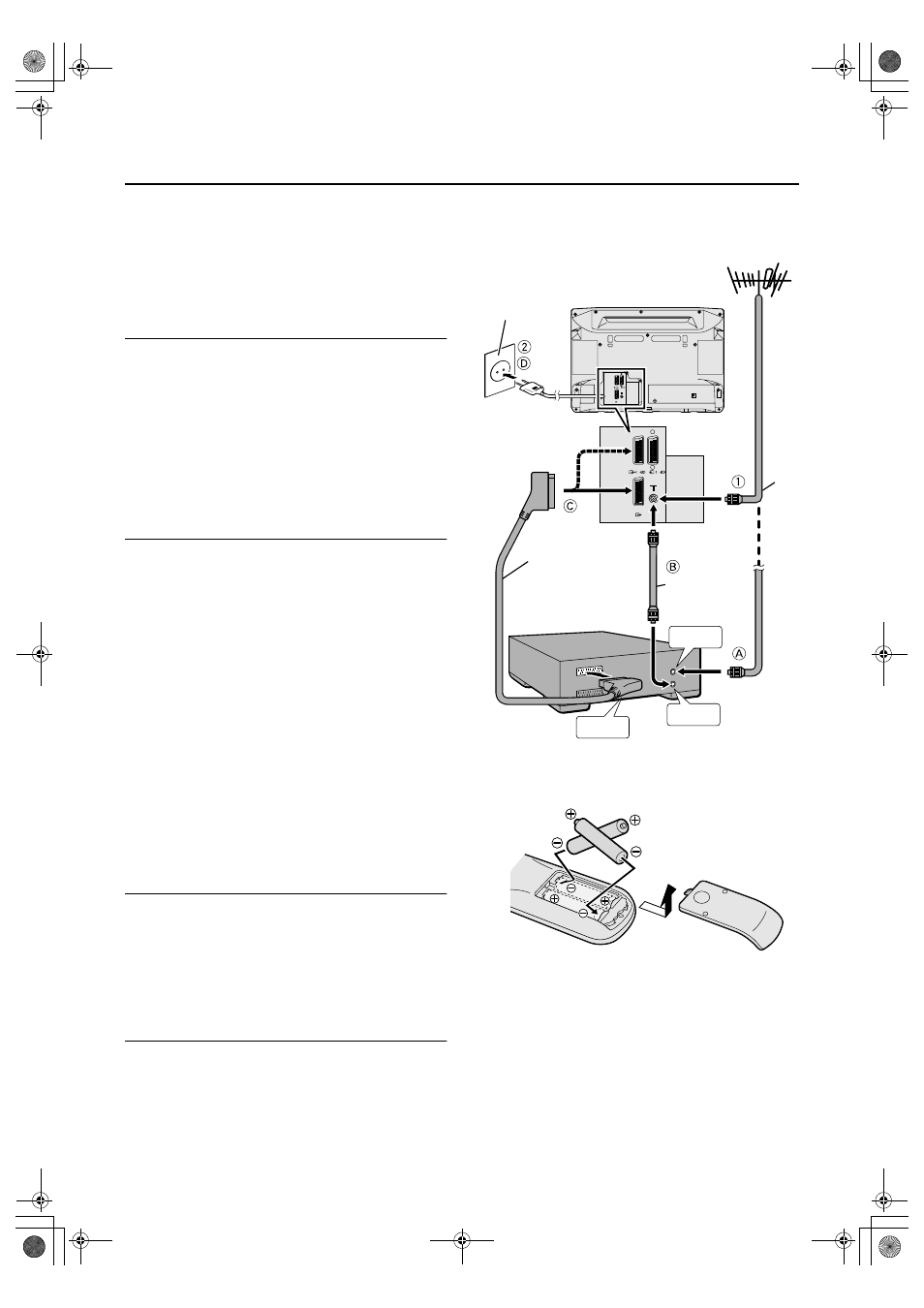

Connecting the Aerial and VCR

If connecting a VCR, follow A

→ B → C → D.

If not connecting a VCR, follow 1

→ 2.

*1: To operate T-V LINK functions, a T-V LINK compatible

VCR must be connected to the EXT-2 terminal on the TV.
For details about T-V LINK functions, see “T-V LINK
FUNCTIONS” on page 5.

Note:
• For further details, refer to the manuals provided with the

devices to be connected.

• The connecting cables are not provided.
• A video can be viewed from the VCR without performing

C. For details, refer to your VCR instruction manual.

• To connect additional external devices, please see “AD-

DITIONAL PREPARATION” on page 30.

• When a decoder is connected to a T-V LINK compatible

VCR, set the DECODER (EXT-2) function to ON. For de-
tails, see “Using the DECODER (EXT-2) function” on
page 28. Otherwise, you will not be able to view scram-
bled channels.

■

Putting Batteries into the Remote Control

Use two AAA/R03 dry cell batteries.
Insert the batteries from the - end, making sure the + and -
polarities are correct.

To open the battery compartment, slide the door downwards
and lift off. Replace the door by sliding it upwards until it is se-
cure.

Note:
• Follow the warnings printed on the batteries.
• Battery life is about six months to one year, depending on

your frequency of use.

• If the remote control does not work properly, replace the

batteries.

• The batteries we supply are only for setting up and test-

ing your TV, please replace them as soon as necessary.

• Always use good quality batteries.

EXT-

VCR

EXT-

VHF/UHF

Aerial

75-ohm Coaxial

Cable

AC Outlet

(AC 220 - 240 V,

50 Hz)

21-pin SCART Cable

75-ohm
Coaxial

Cable

AV IN/OUT

Terminal

To Aerial

Output

To Aerial

Input
