advanced features 37
Auto Satellite
Programme Recording
Auto Record from Satellite Receiver
This facility allows a programme timer-recorded using the satellite receiver to be
recorded on the VCR.

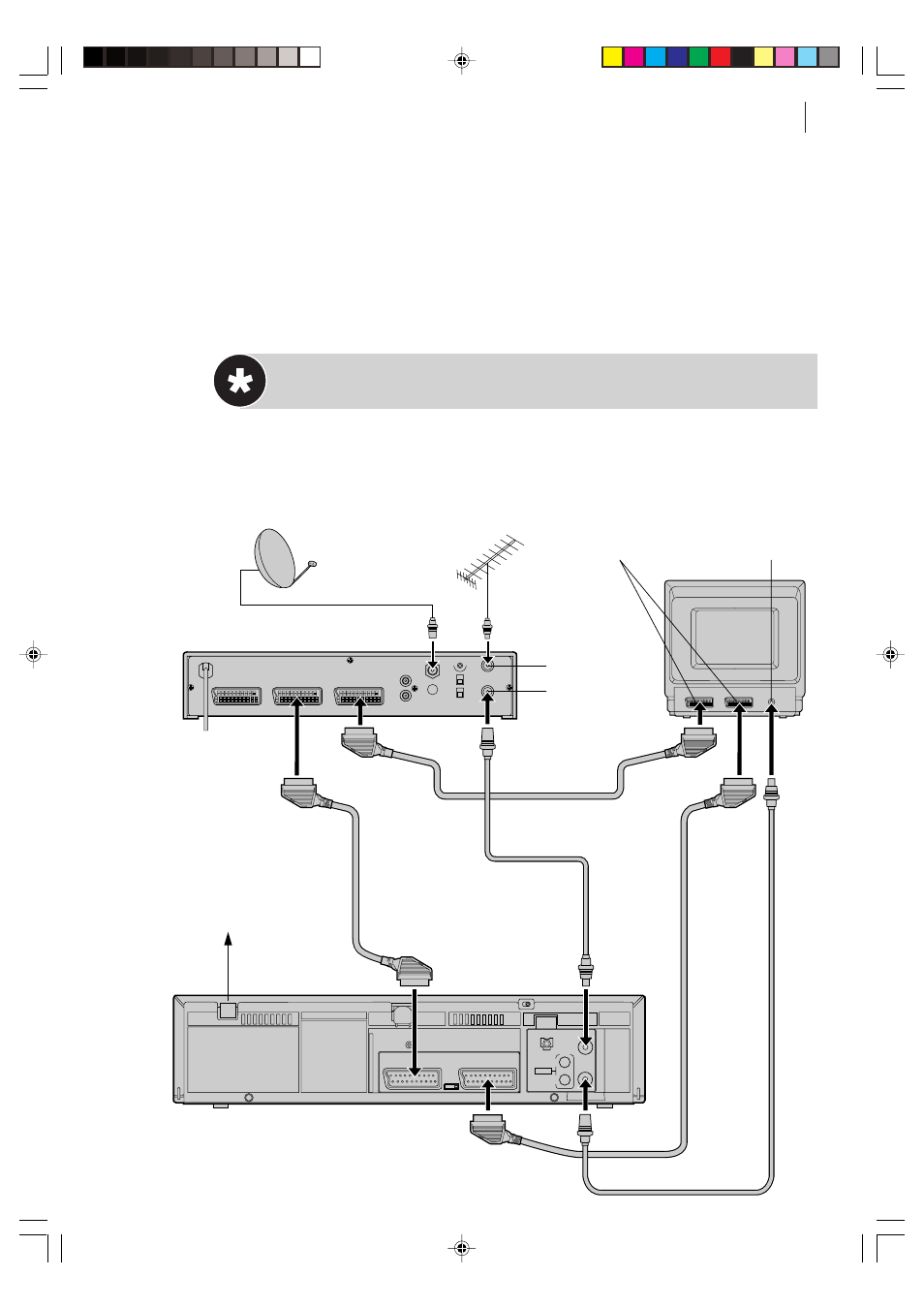

connect up Connect your satellite receiver, TV and VCR (see diagram below).
ENTREE
ANT. IN
ENTREE/DECODEUR
IN/DECODER ENTREE/SORTIE
IN/OUT
SORTIE
RF OUT
ANTENNE
SORTIE
OUT
R
L
AUDIO
CONTROLEUR SAT
SAT CONTROL
L-1 L-2
010
DECODER VCR TV
EXT.2 EXT.1
010
Outdoor Unit
Satellite Cable
TV Aerial
TV Aerial Cable
ANT. IN
RF OUT
Mains Outlet
21-pin AV Input
Connectors
(SCART)
Aerial
Connector
Satellite Receiver
Back of VCR
Back of TV
*DECODER function is not available in the UK.
