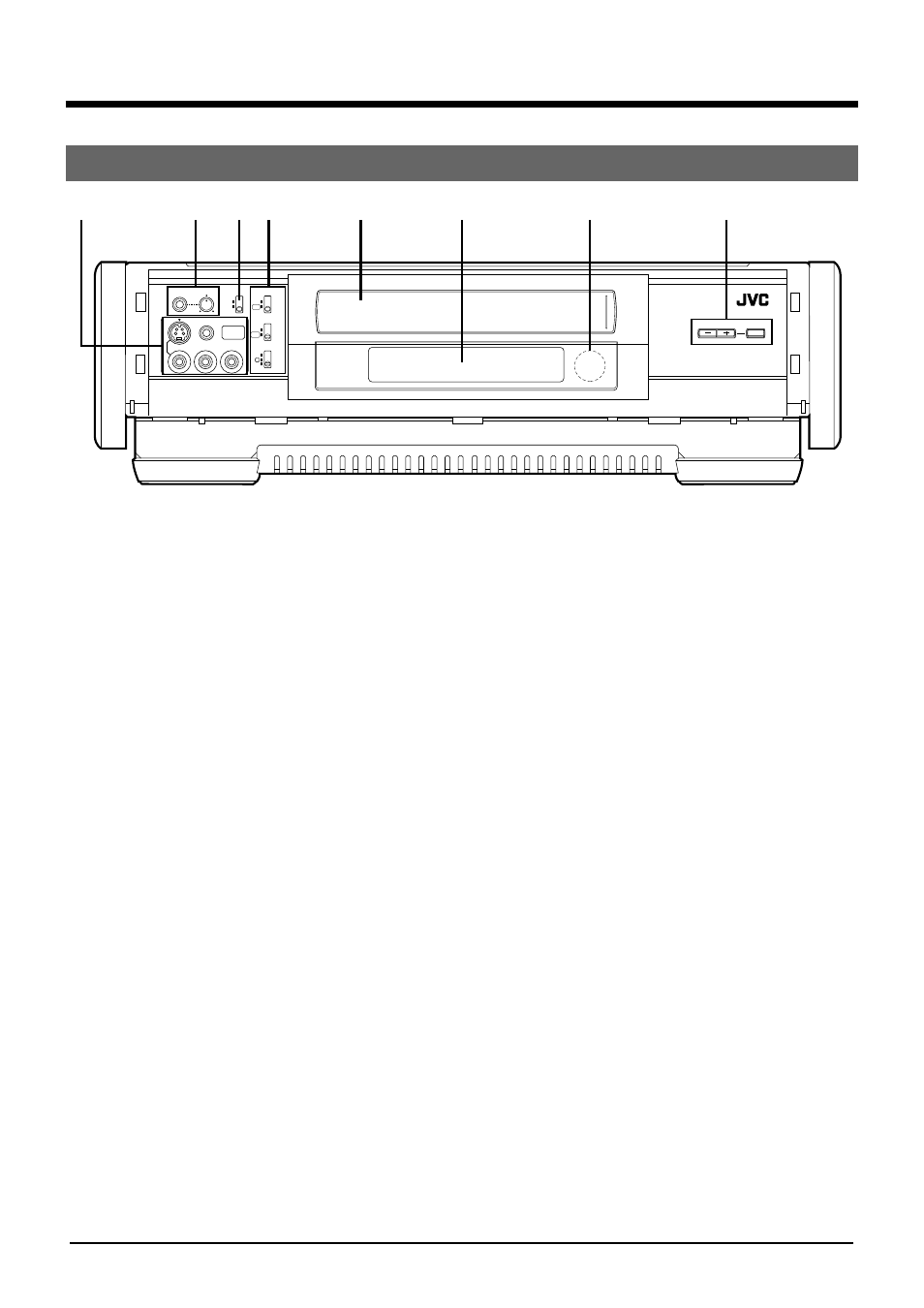

Front Panel

2 CONTROLS AND CONNECTORS

PHONES

VOLUME

INPUT

LINE4

VIDEO

L– AUDIO –R

REMOTE

PAUSE

MIN

MAX

REC LEVEL IR REMOTE

TRACKING

AUTO

Y/C TIMING

EDIT(HD REC)

NR(W-VHS PLAY)

MANUAL

AUTO

OFF

ON

R
C

L

ON

OFF

2

1

3 4

5

6

7

8

1

[S-VIDEO/VIDEO/AUDIO INPUT 4] connectors
Connect to the S-VIDEO/VIDEO/AUDIO OUTPUT
connectors on the playback deck or camcorder
with the S-VIDEO/VIDEO/AUDIO cable when this
machine is used as a recording unit for editing.
If the sound is monaural, plug it to the AUDIO L
connector. Identical audio sound will be recorded
for left and right channels.

[REMOTE PAUSE] connector
When editing with a JVC camcorder, connect the
mini-plug cord to this connector.

2

[PHONES] connector
Accepts the mini plug type headphone.

[VOLUME] adjust knob
Adjust the sound level of headphone connected to
the PHONES connector.

3

[REC LEVEL] switch

MANUAL: Set to this position when adjusting the

Hi-Fi recording level and the volume balance
between left and right audio channels manually.
AUTO : Normally set to this position.

4

[IR REMOTE] switch
OFF : Set to this position when not operating with a

wireless remote control unit.

ON : Normally set to this position.

[EDIT(HD REC)/NR(W-VHS PLAY)] switch
When using W-VHS tapes, adjust the picture to
the desired tone.
ON : • Set to this position when noise is noticeable

during playback of HD/SD recorded tapes.

• Set to this position when recording from Hi-

Vision video cameras and from professional
equipment.

OFF : • Normally set to this position during play-

back.

• Set to this position when recording from

another W-VHS VCR.

[Y/C TIMING] switch
Adjusts the horizontal color phase.
R : Set to this position when the color phase shifts

toward the left.

C : Normally set to this position.
L : Set to this position when the color phase shifts

toward the right.

* This function is not effective while playing back a

tape recorded in the HD mode.

5

Tape loading slot door

6

Video unit display window
Displays the operational state of the recorder,
counter and so on.

7

Infrared beam receiving window

8

[TRACKING –/+] button
Suppresses the disturbances appearing on the
picture when a tape recorded on another machine
is played back (or put on slow motion playback).

[AUTO] button
Turns on and off the auto tracking facility.
