Adjustment of Playback Picture
6 PLAYBACK
When there is too much noise in the playback
When auto tracking of this unit is not effective, adjust the
tracking manually.
1. Press the AUTO button during playback.
• AT display on the display panel of this unit disappears
and auto tracking is disengaged.
• Pressing it again returns to the auto tracking mode.
2. Adjust with the TRACKING–/+ button.
When noise appears during still picture/slow-
motion playback
1. Press PAUSE/STILL button for longer than 2 seconds to
perform slow-motion playback.
2. Adjust with the TRACKING–/+ button.
• Tracking adjustment may not be entirely effective when
playing back a tape with a poor quality recording.
To correct distortion of the picture
Press the 629TBC button to display " (TBC ON)" on
the front panel display window.
●
Every press of the button changes the display, (ON) [
(OFF) alternately.
● Depending on the type of signal recorded on the tape, the
playback picture may not be clearly visible. In that case,
the picture may be better by setting to "OFF".
● When playing back a W-VHS tape, TBC for W-VHS works
regardless of the "ON" or "OFF" setting.
This facility is helpful for the following occasions.
• Tape recorded with a camcorder.
• Tape used repeatedly.
• When using this unit as a playback machine during
dubbing.
To adjust the picture when the color phase shifts
from side to side during playback
When the color phase shifts toward the left, set the Y/C
TIMING switch to "R".
When the color phase shifts toward the right, set the Y/C
TIMING switch to "L".
Normally set to "C".
The Y/C TIMING switch has no effect when 629TBC is set
to "OFF".

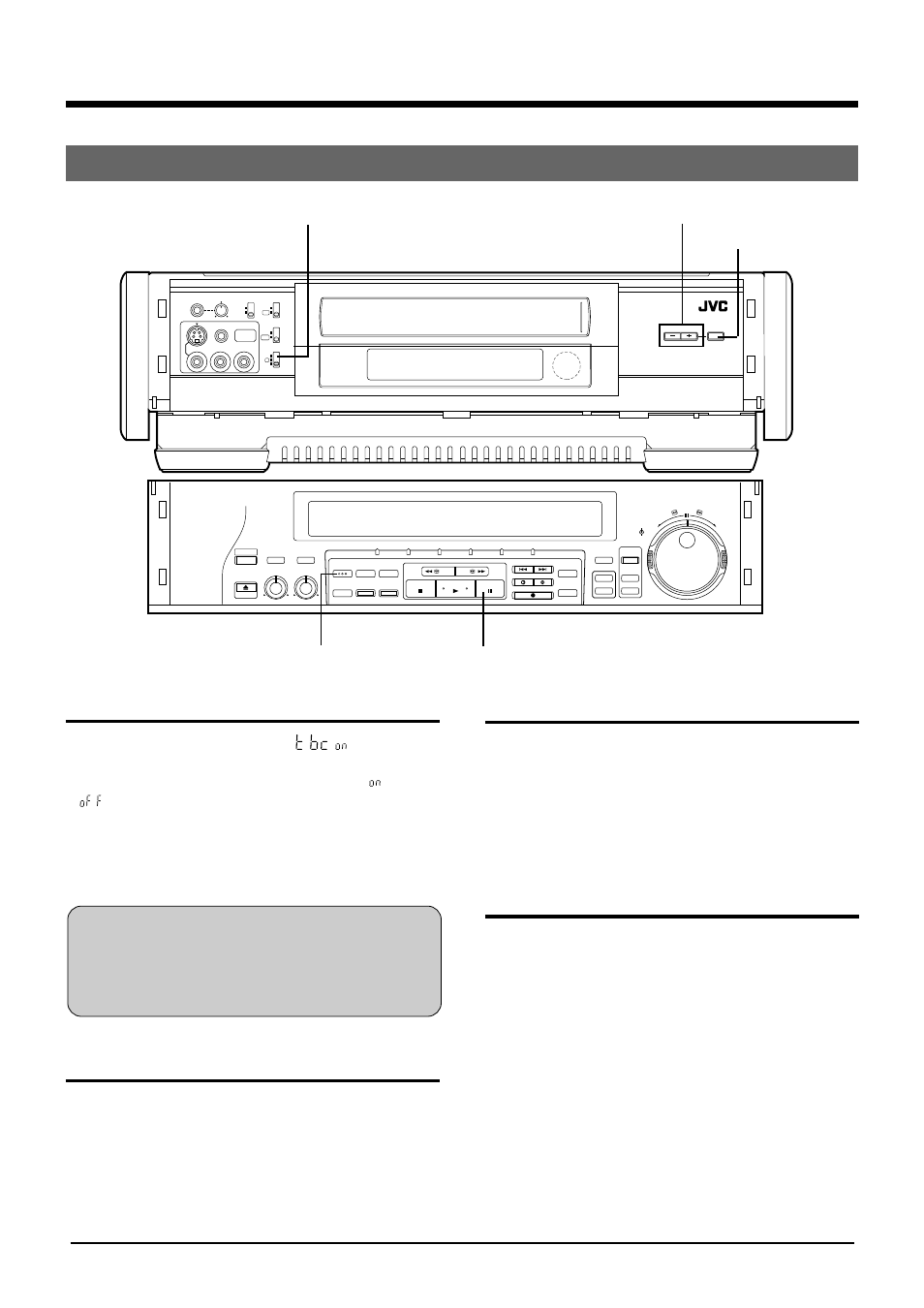

PHONES VOLUME
