Audio Dubbing
8 EDITING
When a W-VHS tape is used, audio dubbing is not possible since it has no normal audio soundtrack.
LINE 2
VIDEO
INPUT
AC
OUTPUT
MAX
100W
AC
INTPUT
120V
60Hz
AUDIO IN
HD/S3(W-VHS) HD(CAM/W-VHS) (HDTV/W-VHS) HD(HDTV/W-VHS) RGB(DISPLAY)
HD VIDEO IN HD VIDEO OUT1 HD VIDEO OUT2 AUDIO OUT3
OUTPUT
S R
R L R L Y P B P R Y P B P R
L VIDEO R.A. EDIT
PREROLL
S
REMOTE
R L
LINE 3
LINE 1 LINE 1
LINE 2
( )

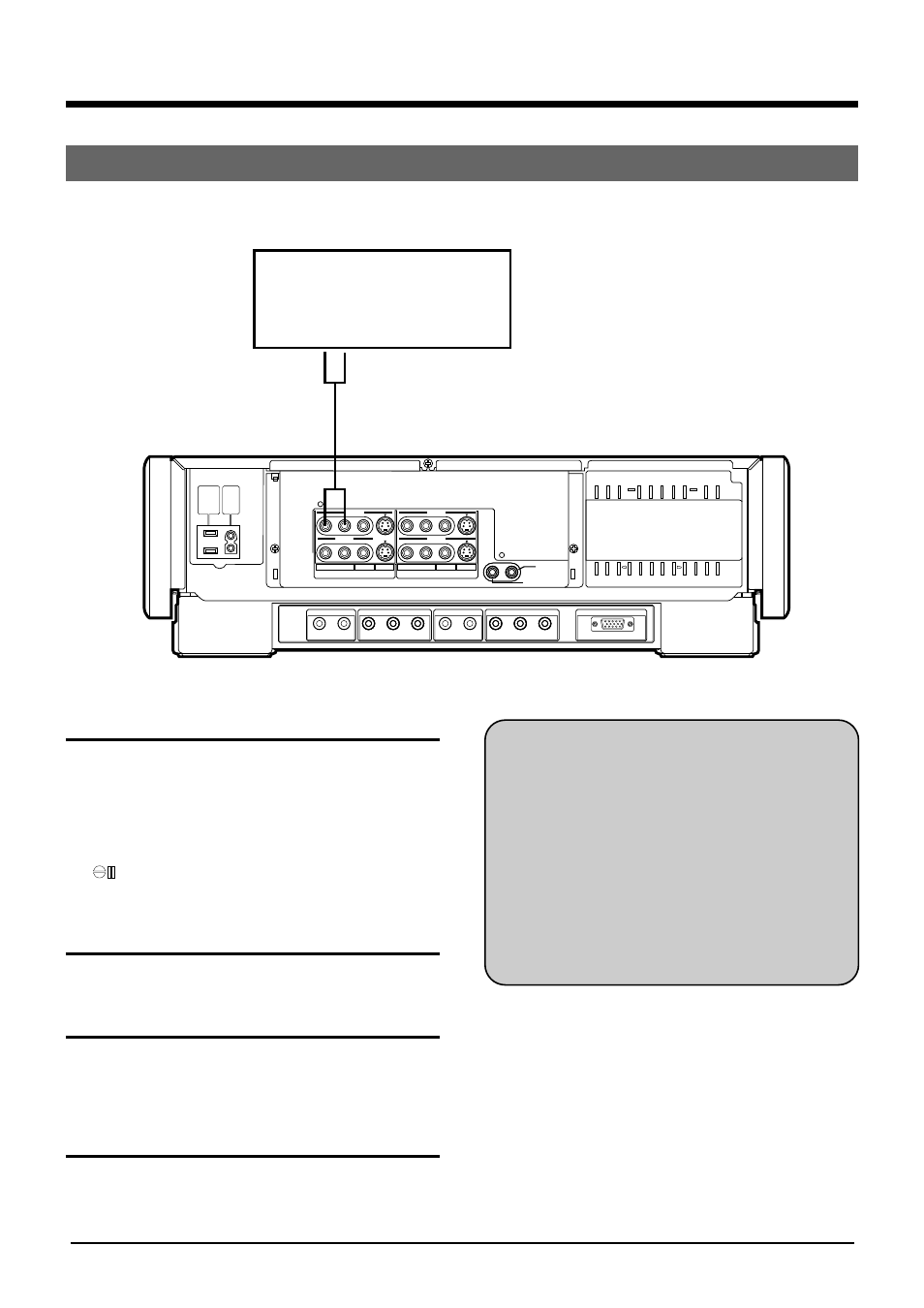

The unit (as a playback machine):
CD Player
To audio output connector
To audio input connector
The unit (as a recording machine)
The unit (as a recording machine)
1 Select the connected input with the INPUT SELECT
button.
2 Play back the tape and search for the beginning of
the section where you want to dub with JOG dial or
SHUTTLE ring and engage the still playback mode.
3 Press the A.DUB button
• is displayed on the front panel display window
and the unit enters the audio dubbing pause
mode.
The unit (as a playback machine)
4 Start playback shortly before the section you want
to dub.
The unit (as a recording machine)
5 Press the PLAY button at the section where you
want to dub.
• Audio dubbing starts.
6 Press the STOP button to finish.
The unit (as a playback machine)
7 Press the STOP button.
● Set the counter reading to 0:00:00 by pressing
COUNTER RESET button at the edit-out point
before step 2 in order to determine the edit-out
point and to dub.
Audio dubbing stops automatically when the
counter reading reaches 0:00:00 and enters
playback.
●
When monitoring the sound during or after audio
dubbing, select the desired soundtrack with the
AUDIO OUT SELECT button.
●
After audio dubbing, normal audio soundtrack is
selected. Return to the Hi-Fi soundtrack with the
AUDIO OUT SELECT button.
