16

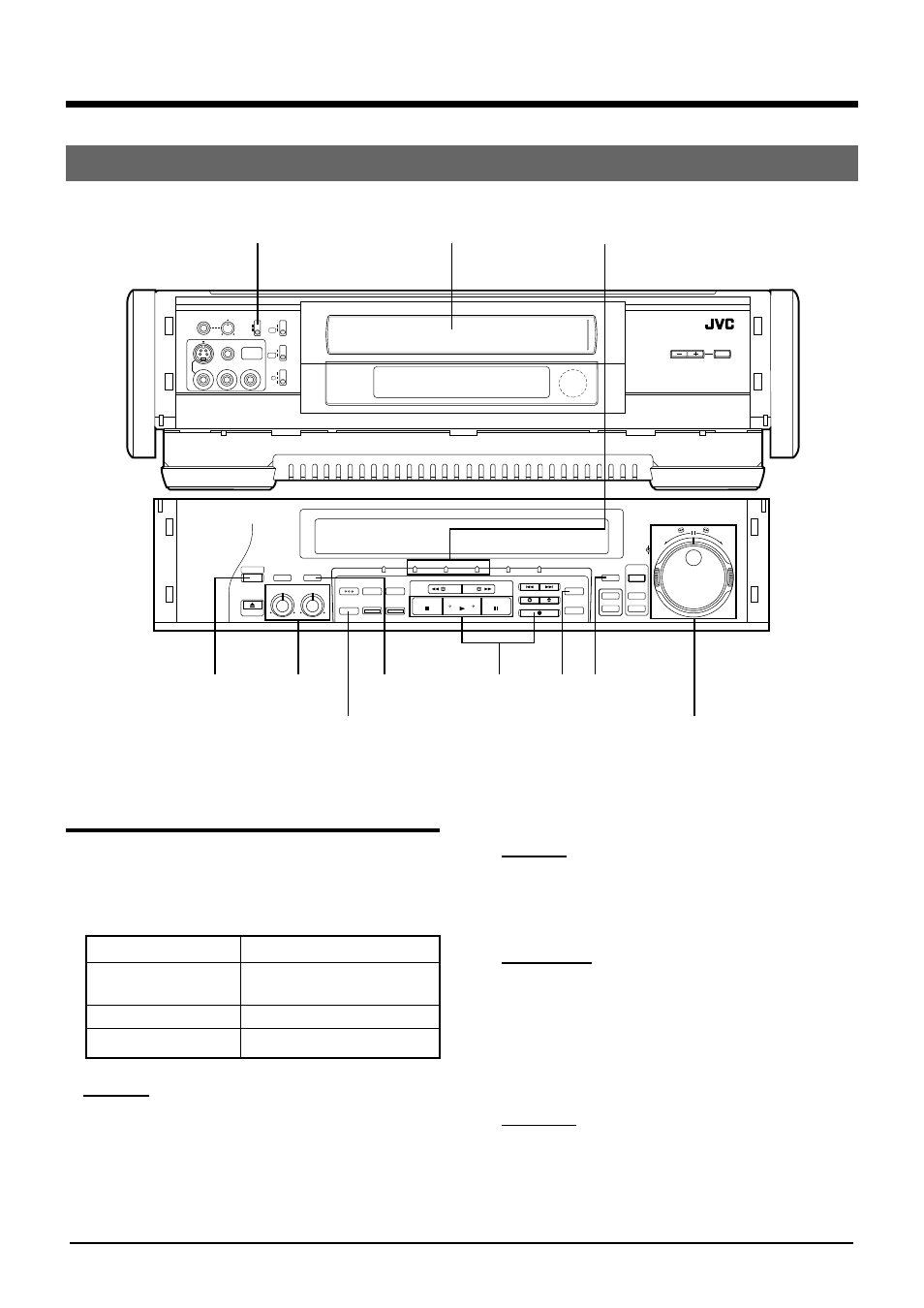

5 RECORDING
Basic Operations
Preparations
1 Turn the power on.
2 Select the recording mode.
Which mode is available depends on the type of the
cassette in use.
Cassette in use Recording mode
W-VHS HD mode
SD mode
S-VHS S-VHS mode
VHS VHS mode
HD mode
a. Load the W-VHS casssette.
b. Press the HD INPUT button. Then, HD lamp
lights and Hd is shown on the front window
display.
PHONES VOLUME
INPUT
LINE4
VIDEO L– AUDIO –R
REMOTE
PAUSE
MIN MAX
REC LEVEL IR REMOTE
TRACKING AUTO
Y/C TIMING
EDIT(HD REC)
NR(W-VHS PLAY)
MANUAL
AUTO
OFF
ON
R
O
L
ON
OFF
OPERATE HI-FI AUDIO
SELECT
EJECT
BALANCE REC LEVEL
L R 0 10
AUDIO OUT
SELECT
629
TBC
COUNTER
/REMAIN
COUNTER
RESET
ZERO
SEARCH
MARK ERASE
OPERATE HD SD S-VHS IN — R.A.E. — OUT
REW FF
INDEX SEARCH
INSERT A.DUB
REC SP/EP
HD INPUT R.A.EDIT
IN/OUT
REV
FWD
START
PREROLL EDIT
START
JOG
SHUTTLE
PAUSE
STOP PLAY PAUSE/STIL
INPUT
SELECT
INDEX
3
1 3 3 4 2 2
2 2
COUNTER/
REMAIN JOG DIAL/
SHUTTLE RING
SD mode
a. Load the W-VHS casssette.
b. Select L1, S1, L2, S3, L4 or S4 with INPUT
SELECT button. Then, SD lamp lights and Sd is
shown on the front window display.
S-VHS mode
a. Load the S-VHS cassette. The [S-VHS] lamp
lights.
b. Select L1, S1, L2, S3, L4 or S4 with INPUT
SELECT button.
c. Select recording speed with the SP/EP button.
Every pressing this button changes the SP [
EP [ SP.
VHS mode
a. Load the VHS cassette.
b. Select L1, S1, L2, S3, L4 or S4 with INPUT
SELECT button.
c. Select recording speed with SP/EP button.
