Preroll Editing
8 EDITING
(Ex.) Preroll Editing using 2 units of SR-W5U in the HD mode.
OPERATE
HI-FI AUDIO
SELECT
EJECT
BALANCE
REC LEVEL
L
R 0
10
AUDIO OUT
SELECT
629
TBC
COUNTER
/REMAIN
COUNTER
RESET
ZERO
SEARCH
MARK
ERASE
OPERATE
HD
SD
S-VHS
IN — R.A.E. — OUT
REW
FF
INDEX SEARCH
INSERT
A.DUB
REC
SP/EP
HD INPUT
R.A.EDIT
IN/OUT
REV
FWD
START
PREROLL EDIT
START
JOG
SHUTTLE
PAUSE
STOP
PLAY
PAUSE/STIL
INPUT
SELECT
INDEX
LINE 2
VIDEO
INPUT
AC
OUTPUT
MAX
100W
AC
INTPUT
120V
60Hz
AUDIO IN
HD/S3(W-VHS)
HD(CAM/W-VHS)
(HDTV/W-VHS)
HD(HDTV/W-VHS)
RGB(DISPLAY)
HD VIDEO IN
HD VIDEO OUT1
HD VIDEO OUT2
AUDIO OUT3
OUTPUT
S
R
R
L
R
L
Y
P
B
P
R
Y
P
B
P
R
L
VIDEO
R.A. EDIT
PREROLL
S
REMOTE
R
L
LINE 3
LINE 1
LINE 1
LINE 2
(
)
LINE 2
VIDEO
INPUT
AC
OUTPUT
MAX
100W
AC
INTPUT
120V
60Hz
AUDIO IN
HD/S3(W-VHS)
HD(CAM/W-VHS)
(HDTV/W-VHS)
HD(HDTV/W-VHS)
RGB(DISPLAY)
HD VIDEO IN
HD VIDEO OUT1
HD VIDEO OUT2
AUDIO OUT3
OUTPUT
S
R
R
L
R
L
Y
P
B
P
R
Y
P
B
P
R
L
VIDEO
R.A. EDIT
PREROLL
S
REMOTE
R
L
LINE 3
LINE 1
LINE 1
LINE 2
(
)

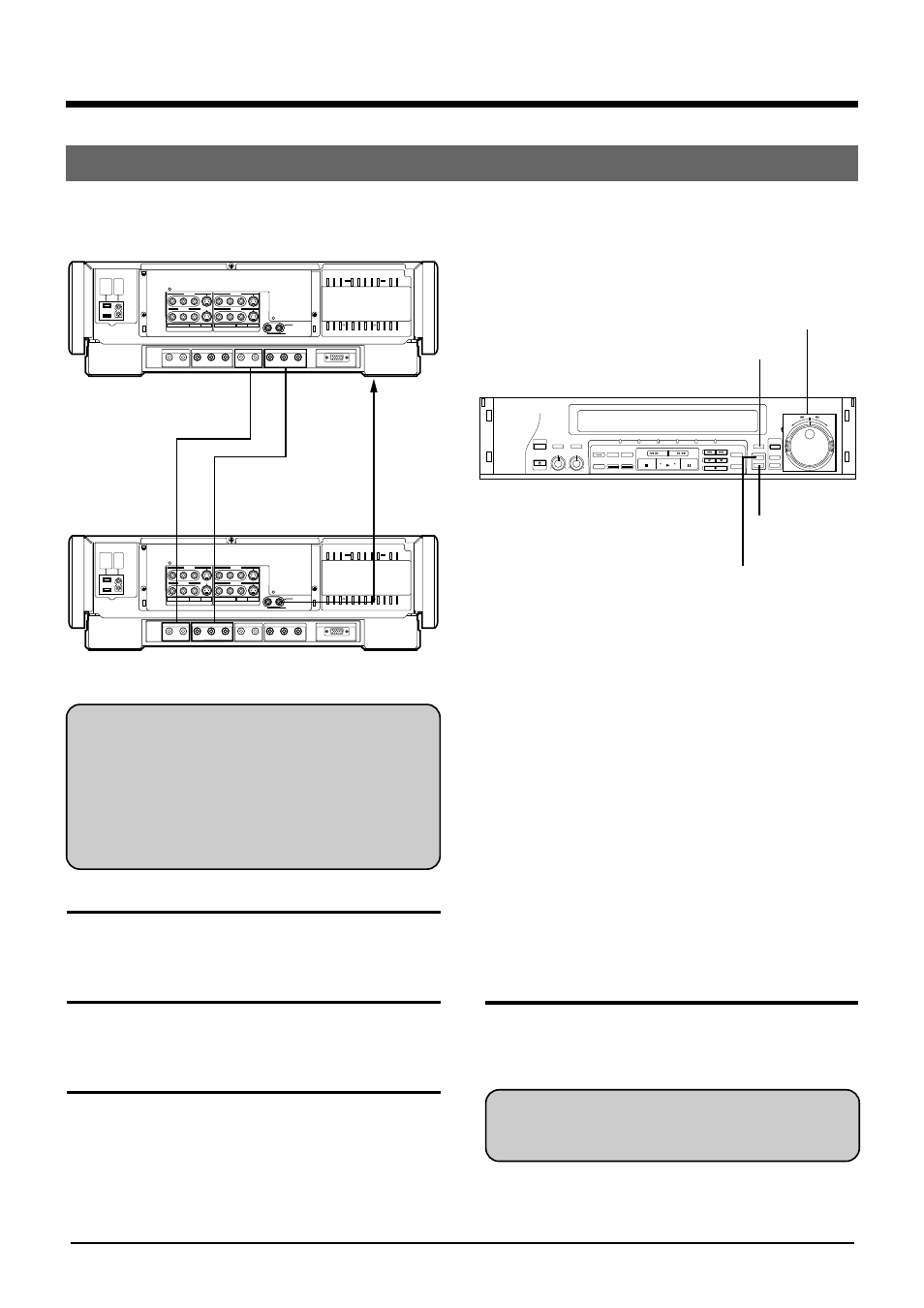

The unit as a playback machine
The unit as a recording machine
To AUDIO OUT 3
connector
To HD
VIDEO
OUT 1
connector
To AUDIO IN
(HD/S3)
connector
To HD
VIDEO IN
connector
5 Press the PREROLL EDIT START button.
• Editing starts.
• The unit (as a playback machine): after prerolling
for 5 seconds, playback starts.
The unit (as a recording machine): starts
recording at the edit-in point.
6 Press the PREROLL EDIT PAUSE button at the
edit-out point.
• The unit (as a playback machine): the still picture
playback mode is engaged 2 seconds after the
button is pressed.
• The unit (as a recording machine): enters recording
pause mode.
7 Press the STOP button.
The unit as a playback machine
8 Press the STOP button.
●
When record pause remains for longer than 5
minutes, the machine automatically stops to protect
the tape and video heads from damage.
Preroll Editing is a function which starts playback after
automatically rewinding the unit (as a playback
machine) to a position located a few seconds before
(approx. 5 seconds) the editing start point, and starts
recording on the unit as a recording machine at the edit
-in point.
Since the editing is done between this unit and another
one after the tape has stabilized, the connected section
on the tape appears smoothly.
The unit as a recording machine
1 Select the connected input(Hd) by pressing HD
INPUT button.
The unit as a playback machine
2 Play the tape back and set the player to the still
picture playback mode at the edit-in point.
The unit as a recording machine
3 Play the tape back to determine the recording start
point with JOG dial/SHUTTLE ring and engage the
still playback mode.
4 Press the REC button.
Recording pause mode is engaged.
JOG DIAL/
SHUTTLE RING
PREROLL EDIT
PAUSE
PREROLL EDIT
START
HD INPUT
To REMOTE
PAUSE
connector on
the front
panel
To R.A.EDIT/
PREROLL
connector
