JVC SR-W5U User Manual
Page 25
25
LINE 2
VIDEO
INPUT
AC
OUTPUT
MAX
100W
AC
INTPUT
120V
60Hz
AUDIO IN
HD/S3(W-VHS)
HD(CAM/W-VHS)
(HDTV/W-VHS)
HD(HDTV/W-VHS)
RGB(DISPLAY)
HD VIDEO IN
HD VIDEO OUT1
HD VIDEO OUT2
AUDIO OUT3
OUTPUT
S
R
R
L
R
L
Y
P
B
P
R
Y
P
B
P
R
L
VIDEO
R.A. EDIT
PRE ROLL
S
REMOTE
R
L
LINE 3
LINE 1
LINE 1
LINE 2
(
)

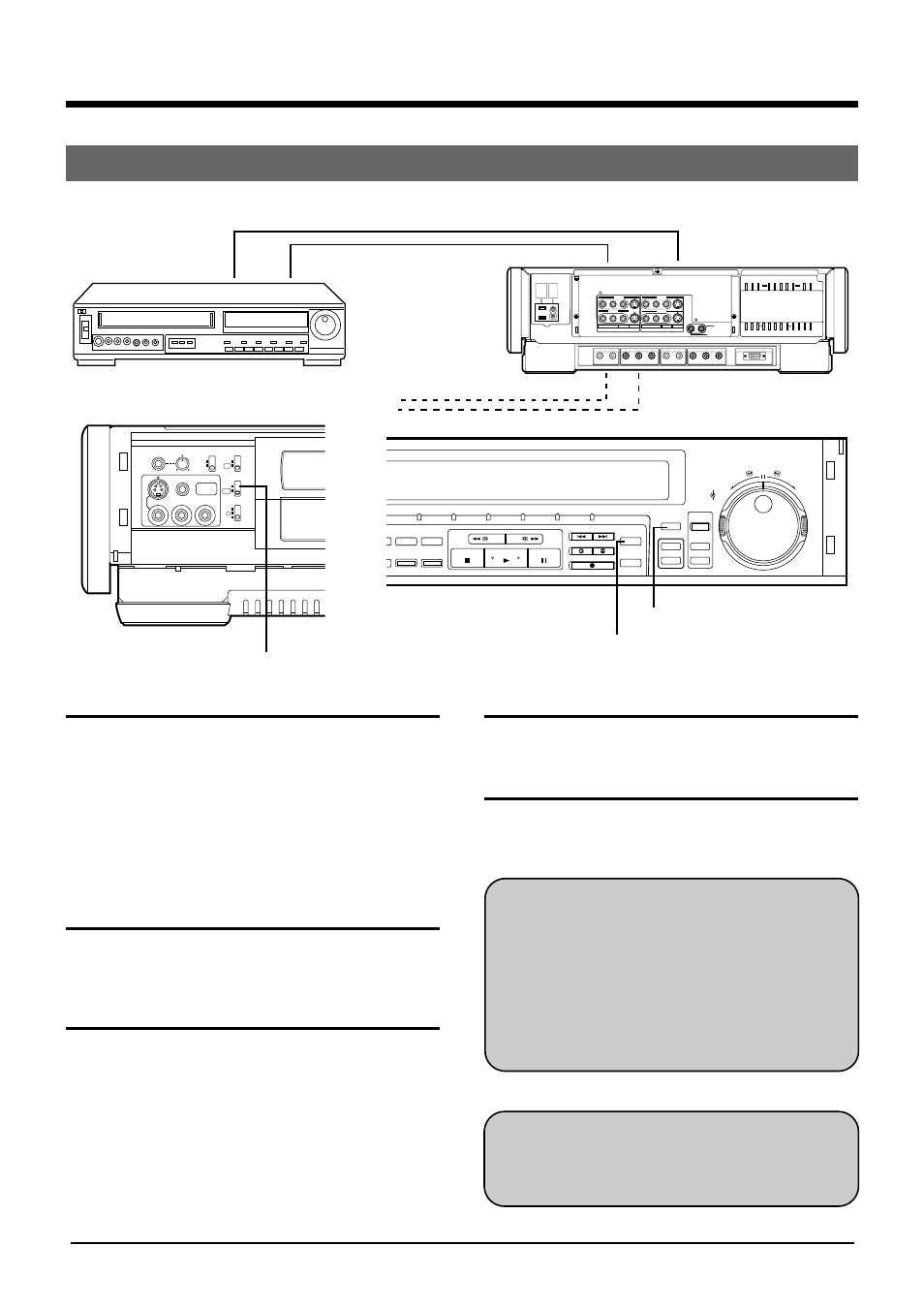

When Playing Back on Another Unit and Recording on SR-W5U
7 TAPE DUBBING
PHONES
VOLUME
INPUT
LINE4
VIDEO
L– AUDIO –R
REMOTE
PAUSE
MIN
MAX
REC LEVEL IR REMOTE
Y/C TIMING
EDIT(HD REC)
NR(W-VHS PLAY)
MANUAL
AUTO
OFF
ON
R
C
L
ON
OFF
Audio output
To audio input connector
To S Video (Video) input
S Video (Video)
output
EDIT
INPUT SELECT
HD INPUT
SR-W5U (as a recording machine)
1 Select the input in connection by pressing the
INPUT SELECT button.
• You can change the input quickly by pressing HD
INPUT button.
• Set the EDIT switch to "ON" when connecting to
high vision camera and recording in HD mode.
2 Press the REC button while pressing the PAUSE
button to bring recording to a pause.
Another unit (as a playback machine)
3 Start playback shortly before the section where you
want to dub.
SR-W5U (as a recording machine)
4 Press the PLAY button at a section where you want
to dub.
5 To bring recording to a pause, press the PAUSE
button.
6 To finish, press the STOP button.
• Extra recording can be avoided by stopping the
SR-W5U then the playback machine.
Another unit (as a playback machine)
7 Press the STOP button.
SR-W5U (as a recording machine)
8 If EDIT switch was set to "ON" in step 1, set it back
to "OFF".
●
When dubbing a high vision video, use the HD
video cable, provided that the recording VCR is
equipped with the HD video output and HD audio
output connectors.
●
When dubbing from an audio unit, record the
video together with the audio.
●
When record pause stays for longer than five
minutes, the machine automatically stops to
protect the tape and video heads from damage.
●
What you have recorded on the video cassette
recorder cannot be used without approval of the
copyright holder, except that it is solely for
personal amusement.
ER
IN
COUNTER
RESET
ZERO
SEARCH
MARK
ERASE
OPERATE
HD
SD
S-VHS
IN — R.A.E. — OUT
REW
FF
INDEX SEARCH
INSERT
A.DUB
REC
SP/EP
HD INPUT
R.A.EDIT
IN/OUT
REV
FWD
START
PREROLL EDIT
START
JOG
SHUTTLE
PAUSE
STOP
PLAY
PAUSE/STIL
INPUT
SELECT
INDEX
(To HD video/audio input)
(HD video/audio output)
