This camera is designed to be used with
high-defi nition or NTSC-type color television
signals. It cannot be used with a television of
a different standard.

Connection with TV

You can output videos from the HDMI
connector, COMPONENT connector, or AV
connector. Select the connector that best suits
your television.

Preparation: Turn off all units.
8 To connect using the HDMI connector

NOTE

Change the settings in [HDMI OUTPUT],
[HDMI COLOR SETTING] or [HDMI
ENHANCE SETTING] according to the
connection. (

੬ p. 70)

8 To connect using the COMPONENT

connector

NOTE

Change the settings in [COMPONENT
OUTPUT] according to the connection.
(

੬ p. 70)

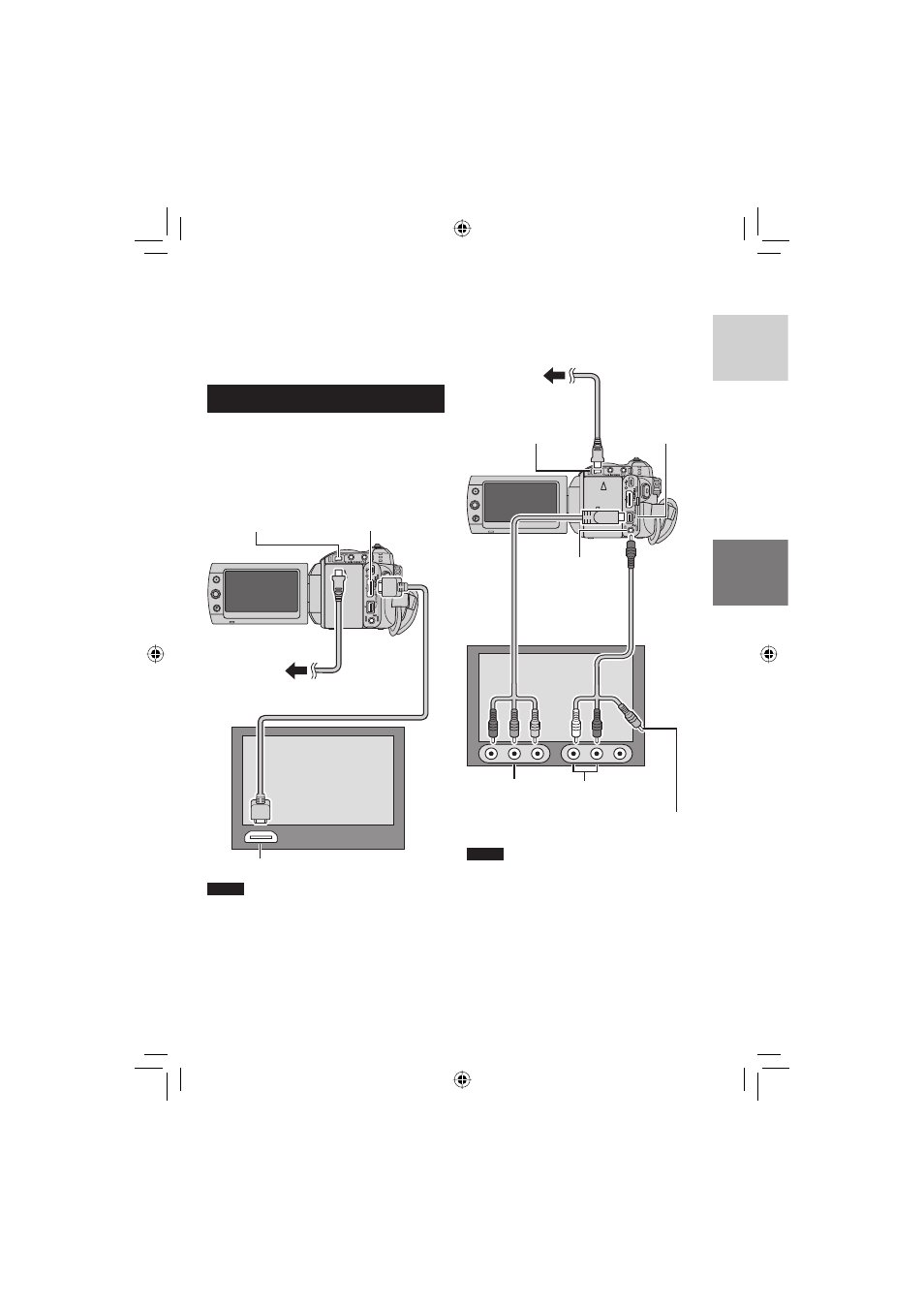

HDMI Connector

AC Adapter

DC Connector

HDMI Connector

HDMI Cable
(optional)

To AC Outlet

AV Cable

AC Adapter

To AC Outlet

Video Connector
is not in use.

AV Connector

Component
Cable

DC Connector

COMPONENT
Connector

Audio L/R Input
Connector

COMPONENT
Input Connector
