14
English
Connecting Audio/Video Components
You can connect the following audio/video components to this receiver using cables
with RCA pin plugs (not supplied). Refer also to the manuals supplied with your
components. If you want to connect a component not listed in the table below, refer to
the manual supplied with it.

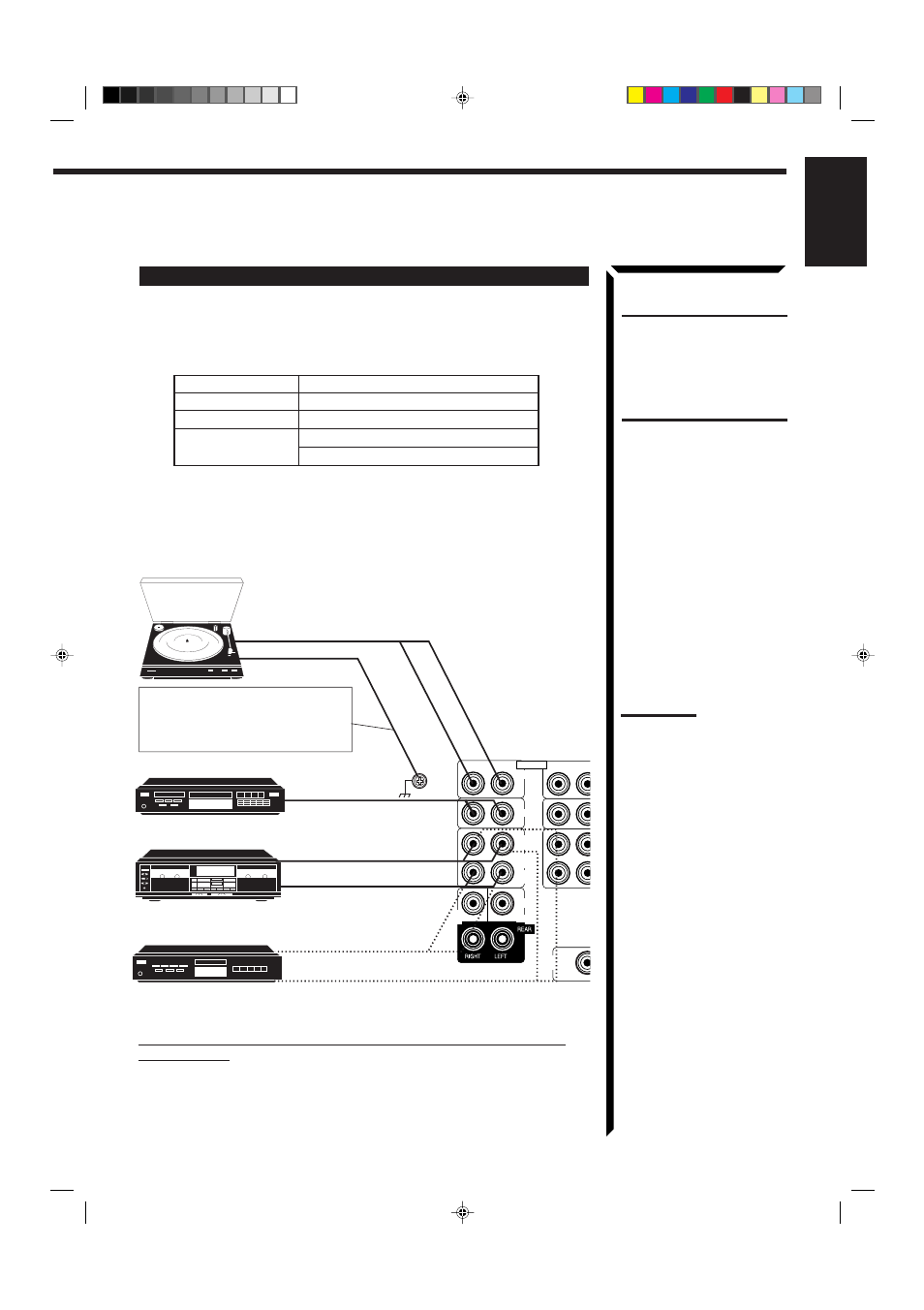

Audio component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, and the red plug to the audio right jack.
Audio Components Video Components
• Turntable • DVD (Digital Video Disc) player
• CD player • TV
• Cassette deck • DBS (Direct Broadcasting Satellite) tuner
(or MD recorder) • VCR
CAUTION:
If you connect a sound-
enhancing device such as a
graphic equalizer between the
source components and this
receiver, the sound output
through this receiver may be
distorted.
To audio output
To audio input
GND
RIGHT LEFT
IN
(PLAY)
OUT
(REC)
CENTER
DVD
CD
PHONO
RIGHT LEF AUDIO
SUBWOOFER
OUT
SUB
WOOFER
TAPE
/MD
To audio output
CD player
Turntable
To audio output
To audio output
To audio input
Cassette deck
or
MD recorder
If your audio components have a COMPU LINK-3 or TEXT COMPU
LINK terminal
• See also page 54 for detailed information about the connection and the COMPU
LINK-3 remote control system.
• See also page 55 for detailed information about the connection and the TEXT
COMPU LINK remote control system.
If an earth cable is provided for your
turntable, connect the cable to the
screw marked GND on the rear panel. Notes:
• Any turntables incorporating a
small-output cartridge such as
an MC (moving-coil type) must
be connected to this receiver
through a commercial head
amplifier or step-up
transformer. Direct connection
may result in insufficient
volume.
• You can connect either a
cassette deck or an MD
recorder to the TAPE/MD
jacks. When connecting an
MD recorder to the TAPE/MD
jacks, change the source
name, which will be shown on
the display when selected as
the source, to “MD.” See page
23 for details.
• When connecting an audio/
video component (ex.: Video
CD player) with “karaoke” —
singing along — function, use
the audio signal attenuating
cord supplied with this
receiver. If not, sound may be
distorted.
