72
EN

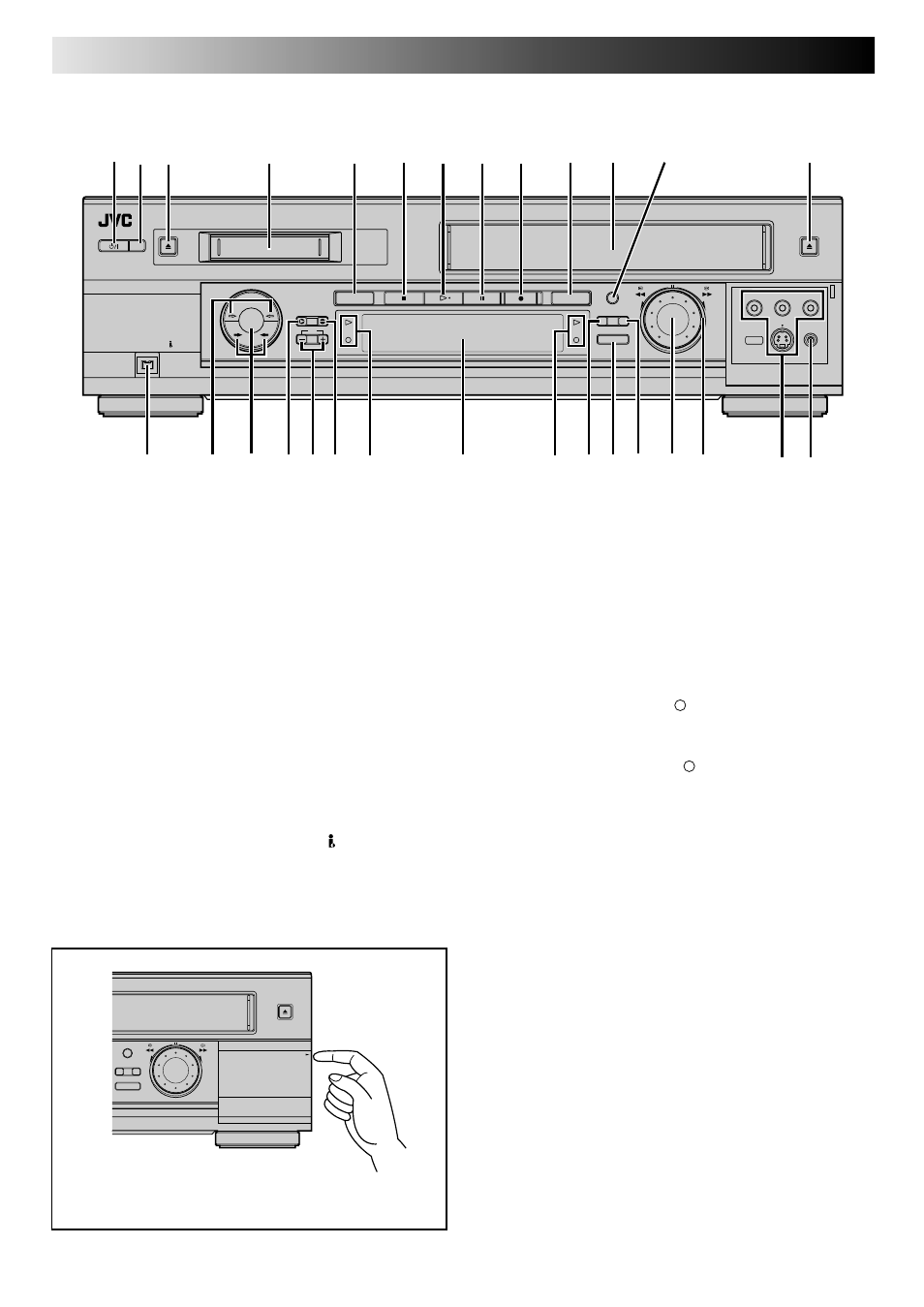

INDEX (cont.) FRONT VIEW
DV IN/OUT
S-VHS DV
S-VIDEO
PAUSE
VIDEO (M) L —AUDIO— R
A.DUB INSERT
CH
DV S-VHS
START R.A.EDIT
IN/OUT
S-VHS ET
F – 1
DUB
POWER EJECT
STOP PLAY PAUSE REC
EJECT
% $ & ^ e ( ) q w
2 7 1 5 4 8 9 0 ! # @
rt
3
y u i o
6
*
INDEX
1 Power On/Off Button ( ੬
pg. 9)
2 Remote Control Sensor
3 DV EJECT Button ( ੬
pg. 21)
4 Mini DV Cassette Loading Slot
5 DV Button ( ੬
pg. 21)
6 STOP Button ( ੬
pg. 21)
7 PLAY Button ( ੬
pg. 21)
8 PAUSE Button ( ੬
pg. 22, 23, 24)
9 Record [REC] Button (੬ pg. 22, 23)
0 S-VHS Button ( ੬
pg. 21)
! VHS Cassette Loading Slot
@ S-VHS ET Button ( ੬
pg. 38, 39)
# VHS EJECT Button ( ੬
pg. 21)
$ DV IN/OUT connector (i.Link*) ( ੬
pg. 54)
* i.Link refers to the IEEE1394-1995 industry specifi-
cation and extensions thereof. The logo is used for
products compliant with the i.Link standard.
* It is possible to connect digital video appliances or
PCs to this connector. However, PC operations are
not guaranteed, especially in the S-VHS/VHS mode.
% Dubbing Direction [DV →/← S-VHS] Indicators
(
੬
pg. 50)
^ Dubbing (DUB) Button ( ੬
pg. 50)
Dubbing Direction [ →/←] Buttons ( ੬
pg. 50)
& INSERT Button ( ੬
pg. 60)
* CH +/– Buttons ( ੬
pg. 22, 23)
( Audio Dubbing [A. DUB] Button ( ੬
pg. 58)
) DV Play Indicator (#) ( ੬
pg. 21)
DV Record Indicator ( ) (
੬
pg. 23)
q Display Panel ( ੬
pg. 73)
w VHS Play Indicator (#) ( ੬
pg. 21)
VHS Record Indicator ( ) (
੬
pg. 22)
e R.A.EDIT Button ( ੬
pg. 52)
r IN/OUT Button ( ੬
pg. 52)
t START Button ( ੬
pg. 51, 53)
y JOG Dial ( ੬
pg. 24)
u SHUTTLE Ring ( ੬
pg. 21, 24)
i S-VIDEO/VIDEO/AUDIO Input Connectors
(
੬
pg. 54, 58, 60)
o Remote PAUSE connector ( ੬
pg. 54)
START R.A.EDIT
IN/OUT
S-VHS ET
PULL-OPEN
To access covered connectors, pull and open the
connector cover.
