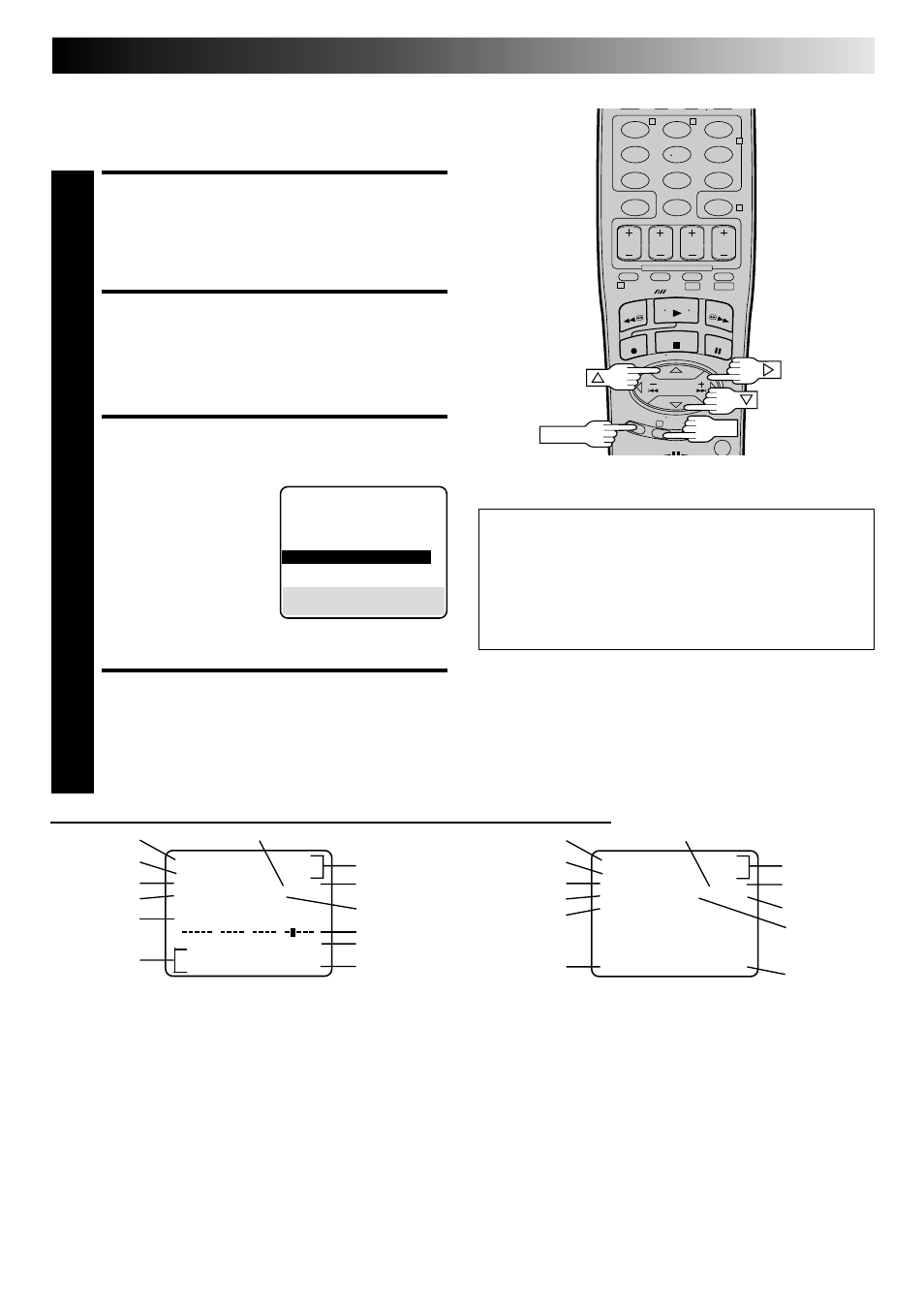

The superimposed indication on the TV screen tells you what the VCR is doing.
This function, switchable between ON and OFF, determines
whether or not operational indicators will appear on screen.
ACCESS MAIN MENU
SCREEN
1
Press MENU.
ACCESS MODE SET
SCREEN
2
Move the highlight bar (arrow) to "MODE SET" by
pressing
%fi, then press OK or #
.
SELECT SUPERIMPOSE SET
MODE
3
Move the highlight bar
(arrow) to "SUPERIMPOSE"
by pressing
%fi, then press
OK or
#
to select the
desired mode:
a– Select "ON" if you want
the superimposed
operational indications
on the TV screen.
b– Select "OFF" if you do not want the superimposed
operational indications on the screen.
RETURN TO NORMAL
SCREEN
4
Press MENU.
NOTES:
● If you engage the Record Pause mode, RECORD/PAUSE is
displayed regardless of the Superimpose mode setting.
● If you select a channel on which no signal is received, the
channel number is displayed regardless of the Superimpose
mode setting.
To recall an indication
1
Press OSD.
Ⅲ All indications corresponding to the current status are
displayed for 5 seconds. After that, the counter
information and RECORD/PAUSE if in the Record Pause
mode, are left displayed on the screen.
2
Press OSD again to clear the display.
Ⅲ The RECORD/PAUSE indication is left displayed on the
screen.
1– Tuned-in channel or AUX(iliary) mode
When the channel is changed, the new channel is
displayed on the screen for 5 seconds.
Dubbing Direction (DV
→ VHS/VHS → DV) indication
2– Clock time
3– Stereo program indication
4– Second Audio Program indication
5– VHS/DV indicator
6– Audio mode indications
7– "Cassette Loaded" mark
When a cassette is loaded, the mark is displayed for 5
seconds. It blinks when the VCR's EJECT button is pushed.
8– Operation mode
When the operation mode is changed, the new mode is
displayed — RECORD (5 sec.), PLAY (5 sec.), FF/REW (5
sec. when engaged from Stop mode), RECORD PAUSE (for
as long as Pause is engaged), and ITR *:** (5 sec.).
7
8
9
13
14
1
4
6
2
3
VHS
9– Tape speed indication
10– Sound Mode indicator (DV)
11– S-VHS ET indication (VHS)
ERROR indication (DV)
12– Tape position indicator (VHS)
13– INDEX indication (VHS)
14– Counter reading (VHS)
Switchable to the tape remaining time display
15– Time Code (DV)
5
CH 125 RECORD
THU 12:00 AM PAUSE
STEREO ] SP
SAP ERROR 12BIT
DV
L + R COUNT 0:00:00
8
9
10
1
4
6
2
3
5
12
7
15
11
DV
11
MODE SET
REAR AUX INPUT VIDEO
OUTPUT1 AUTO
2ND AUDIO RECORD OFF
AUTO TIMER OFF
=SUPERIMPOSE ON
SELECT WITH ( 5,∞) AND (OK)
PRESS (MENU) TO END
