INSTALLING YOUR NEW VCR
CHECK CONTENTS
1
Make sure the package contains all of the accessories
listed in “SPECIFICATIONS” (
੬
pg. 76).
SITUATE VCR
2
Place the VCR on a stable, horizontal surface.
CONNECT VCR TO TV
3
The connection method you use depends on the type of
TV you have.
a– Disconnect the TV antenna from the TV.
b– Connect the TV antenna cable to the
ANTENNA IN jack on the rear of the VCR.
c– Connect the supplied RF cable between the TV
OUT terminal on the rear of the VCR and the TV’s
antenna input terminal.
d– Connect an Audio/Video cable between the
AUDIO/VIDEO OUT 2 connectors on the rear of
the VCR and the Audio/Video input connectors on
the TV. Set your TV in video input mode or A/V
input mode. Refer to the TV Instruction Manual.
S-VIDEO Connection
● If you have a TV with S-VIDEO input terminals, see
"S-VIDEO Connection" on page 7.
CONNECT VCR TO
POWER SOURCE
4
Connect the AC power plug to an AC outlet.
● The clock and tuner channels will automatically be
set when the antenna is connected and when the AC
is first connected to the VCR (
੬
pg. 8).
(If "Auto" or "CH" is displayed on the front display
panel before the VCR is powered on, the clock and
tuner channels are being set automatically. Wait for
the time to be displayed on the front display panel
before powering on the VCR.)
FINAL PREPARATION FOR
USE
5
Power on the VCR.
You can now perform simple playback (
੬
pg. 21) or
simple recording (
੬
pg. 22, 23).
NOTES:
● For full identification of the VCR's rear panel, refer to the
Index (REAR VIEW
੬
pg. 73).
● It is not possible to view a TV program through the VCR by
the ordinary RF connection.

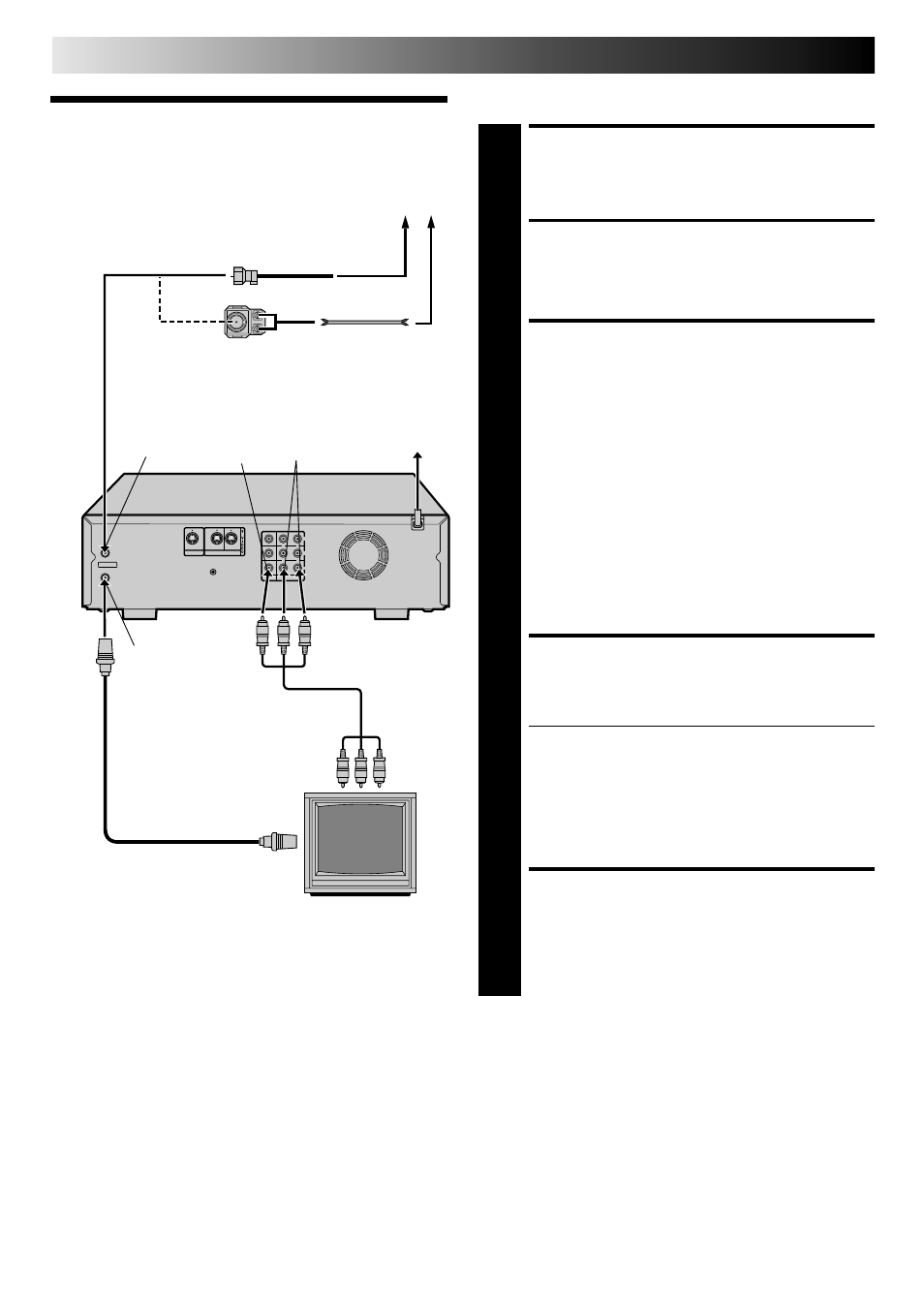

Connections
Antenna or Cable
Flat Feeder
Coaxial Cable
Back of VCR
AC Outlet
TV
Matching Transformer
(not supplied)
Audio/Video
Cable (supplied)
ANTENNA IN
(Antenna or
Cable input)
Basic Connections
AUDIO
OUT VIDEO
OUT
RF Cable
(supplied)
TV OUT
