VM8012
3
R (Red)
L (White)
(Yellow)
(Yellow)
IMPORTANT!
The pink parking wire MUST
be connected to the switched
side of the parking break
circuit (the part that becomes
grounded when the brake is
applied).
FRONT SP
Purple Purple/Black
Stripe
Gray Gray/Black
Stripe
White/Black
Stripe
White Green/Black
Stripe
Green
Left Speaker
(Front)
Right Speaker
(Front)
Left Speaker
(Rear)
Right Speaker
(Rear)
Black
Yellow
Blue
Red
REAR SP
Front r Line out R (Red)
L (White) Black
Power Antenna
Connect to power antenna or amplifier.
If not used, tape bare end of wire.
Accessory/Ignition
Connect to existing radio wire
or radio fuse.
Ground
Connect to ground terminal
or clean, unpainted part of chassis.
Memory/Battery
Connect to battery or 12 volt power
source that is always live. The radio will
not work if this wire is not connected.
Rear Line out R (Red)
L (White) Gray
A/V Media
Adapter Cable
Subwoofer Out
Parking SW (Active Low Level Input)
Aux-In (Black)
Video In
Video Out
Fuse (15A)
USB Slot

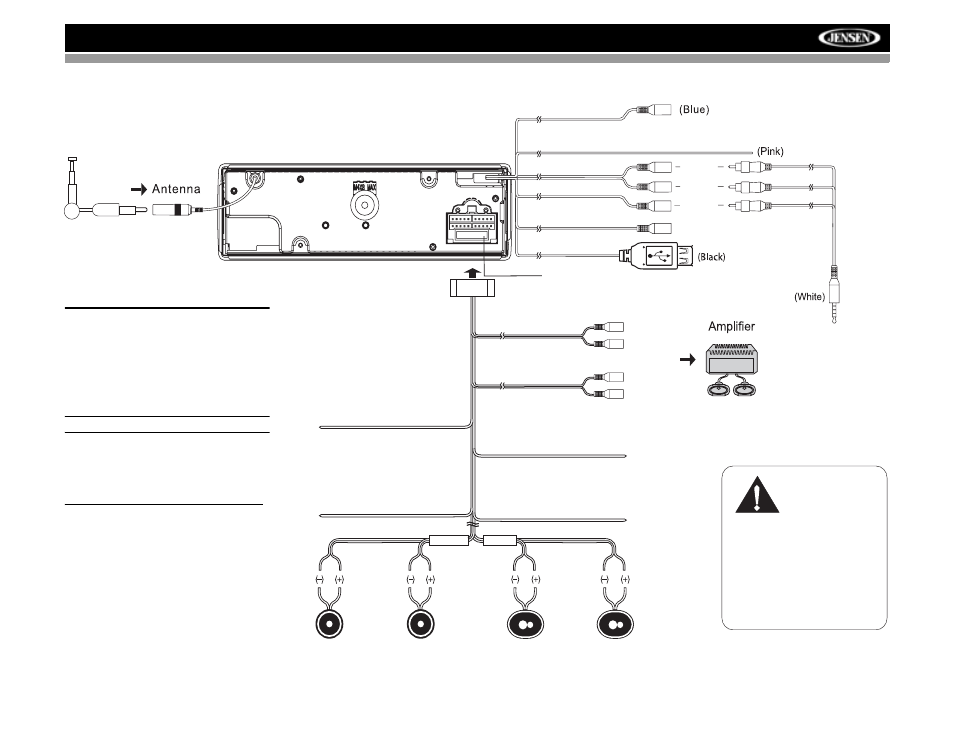

WIRING
NOTE: The amplifier in this radio is
only designed for use with four
speakers. Never combine (bridge)
outputs for use with two speakers.
Never ground negative speaker
leads to chassis ground. Failure to
wire exactly as shown may cause
electrical damage to the radio.
NOTE: Only connect speakers with
a nominal impedance of 4 ohms.
Speakers with a load impedance
less than 4 ohms could damage
the unit.
