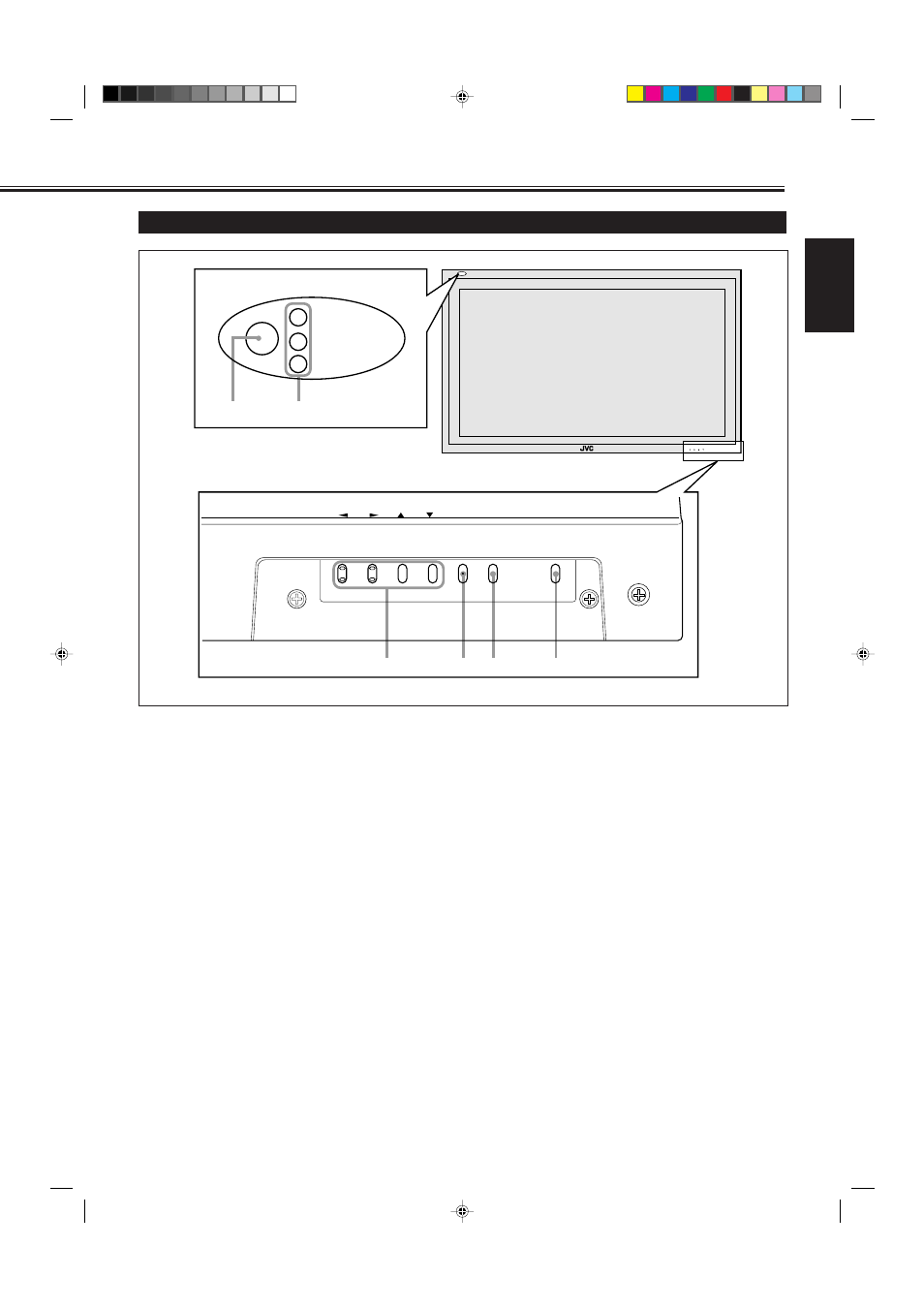

Monitor: Front View
1 Remote sensor/power lamp
Point the front end of the wireless remote control toward
here.
When the Monitor is turned on, the power lamp glows
green. It glows orange in standby mode.
2 Self-diagnostic lamps (page 37)
These lamps light/flash if something abnormal occurs
with the Monitor.
3 2 / 3 / 5 / ∞ buttons
Use these buttons to select menu items and to make
adjustments.
• When no menu is displayed, you can use the 2 / 3
buttons to adjust the volume level.
4 MENU button
Use this button to display or erase menus.
While a sub-menu is displayed, pressing this button will
move you one screen back to the preceding menu.
5 INPUT button (page 14)
Use this button to switch between inputs.
To select the correct RGB input, you have to set “RGB
INPUT” correctly on the menu (see page 23).
• Only for GD-V4210PCE, GD-V4210PCE-G and
GD-V4211PCE: Only RGB input can be reproduced.
To reproduce images through the other inputs, you need
to install video interface kit (IF-C421P1W), which is
separately purchased.
6 POWER button (page 14)
Use this button to turn on and off the Monitor.
MENU INPUT POWER
MENU INPUT POWER
3 4 5 6
1 2
Bottom View
