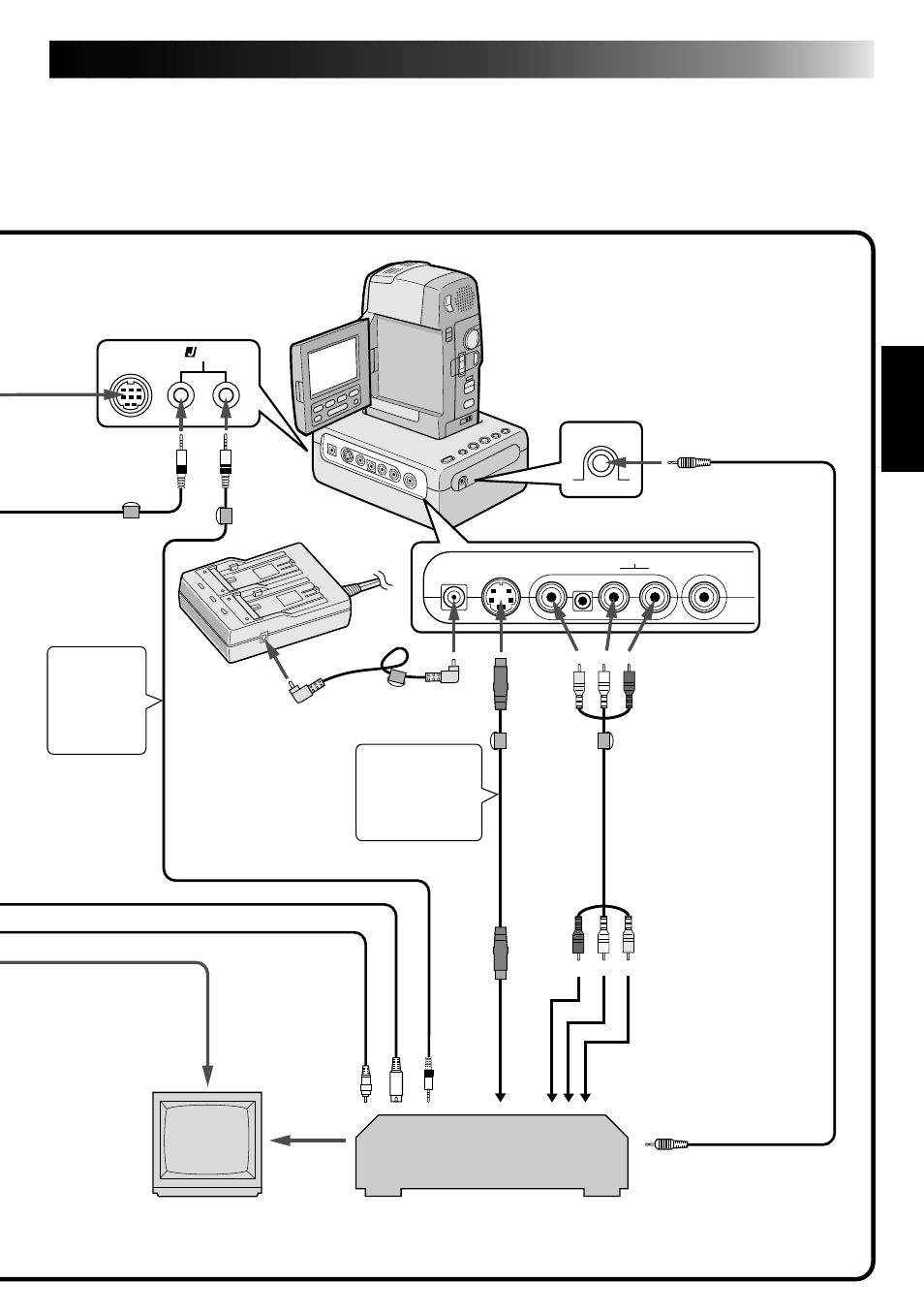

Digital camcorder
To JLIP
jack
Core
Filter
JLIP Video Capture
Docking station
To edit jack
To S
output
jack
Core
Filter
To video/
audio output
jack
(yellow) (white) (red)
S-Video
cable
(provided)
AUDIO/
VIDEO
cable
(provided)
(red) (white) (yellow)
To S-
VIDEO
input
jack
To
AUDIO
input
jacks
(L/R)
To
VIDEO
input
jack
To DC
output jack
Core
Filter
Connect to TV
To remote
pause jack
TV
Connect
to TV
JVC Video unit
(Recording deck)
EDIT cable
(provided)
Connect this
if the video
unit has an
S input jack
3.5 mm
diameter 4-
pole cable
(provided)
Connect this
if the video
unit has a
JLIP
connector
To S-Video output jack
To video output jack
DC
cord
Video cable
Core Filter
Ⅲ When using the Video Capture Docking Station, use the AA-V80U AC Adapter/Charger
(optional or provided with the camcorder).
AC Power
Adapter/Charger
JLIP
