42

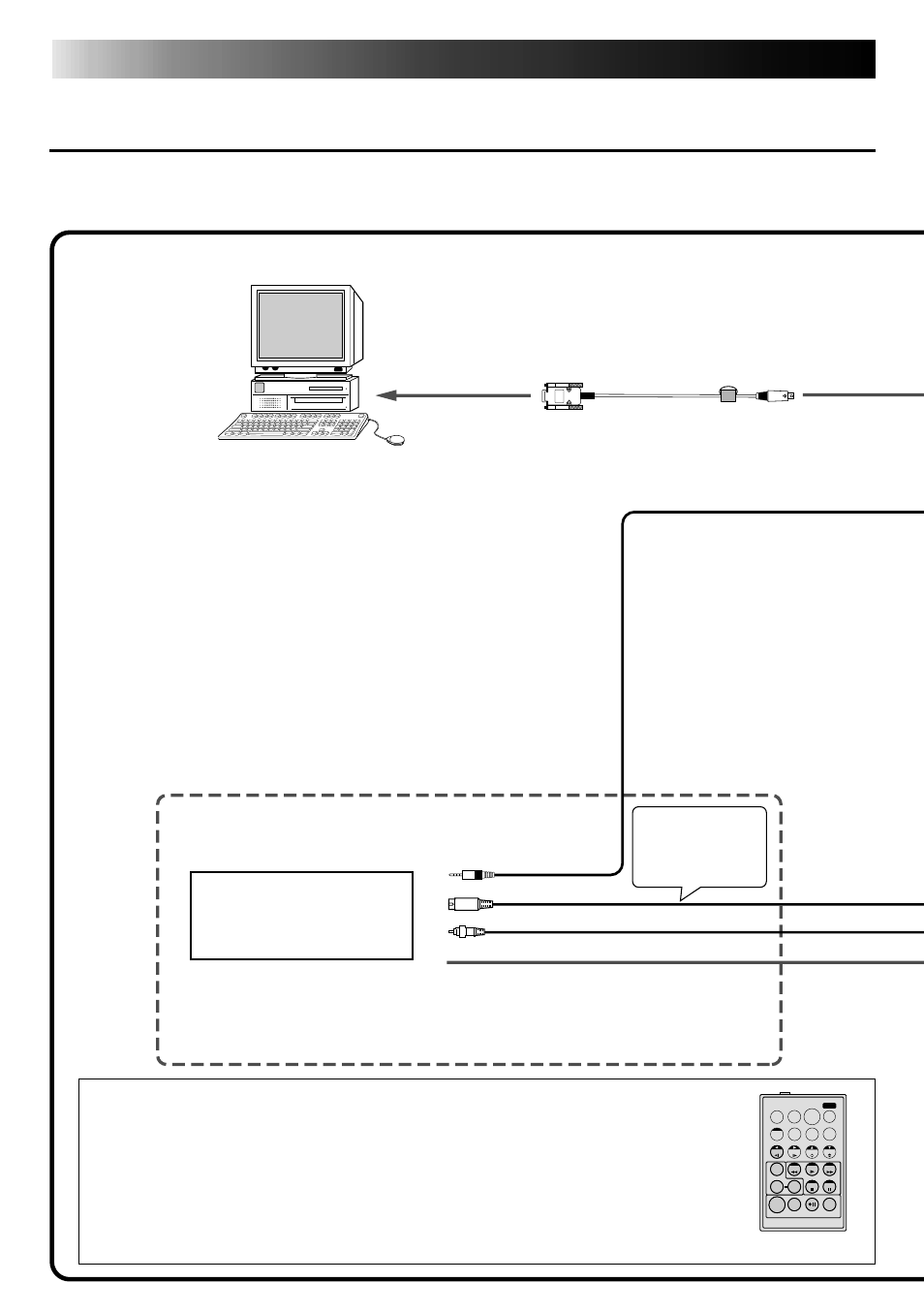

CONNECTIONS (When Using JLIP Player Software)
WHEN CONNECTING TO A VIDEO SOURCE UNIT WITH JLIP
CONNECTOR OR TO A VIDEO PRINTER
Ⅲ Be sure to turn off the power of all connected units before making any connections.
Ⅲ When connecting the provided cable, be sure to connect the plug with the Core Filter to the
Video Capture Docking Station.
T W
If you edit using a non-JVC VCR...
It is possible to use the remote control unit provided with the GR-DVM1.
Also refer to the GR-DVM1’s instructions on connection and operation
with your brand of VCR.
NOTE:
Some VCR brands or models cannot be operated.
When connected with the Video Printer
PC
To COM port
(RS-232C)
PC connection
cable (provided)
Core
Filter
To digital
connector
(8 pin)
3.5 mm diameter
4-pole cable
(provided)
S-Video
cable
To video input connector
To S-Video input connector
To JLIP connector
RM-V708U
Connect this if
the video unit has
an S-Video output
connector
Video Printer equipped
with a JLIP connector
