z10 EC Frame and I/O Confi guration Content: Planning for I/O

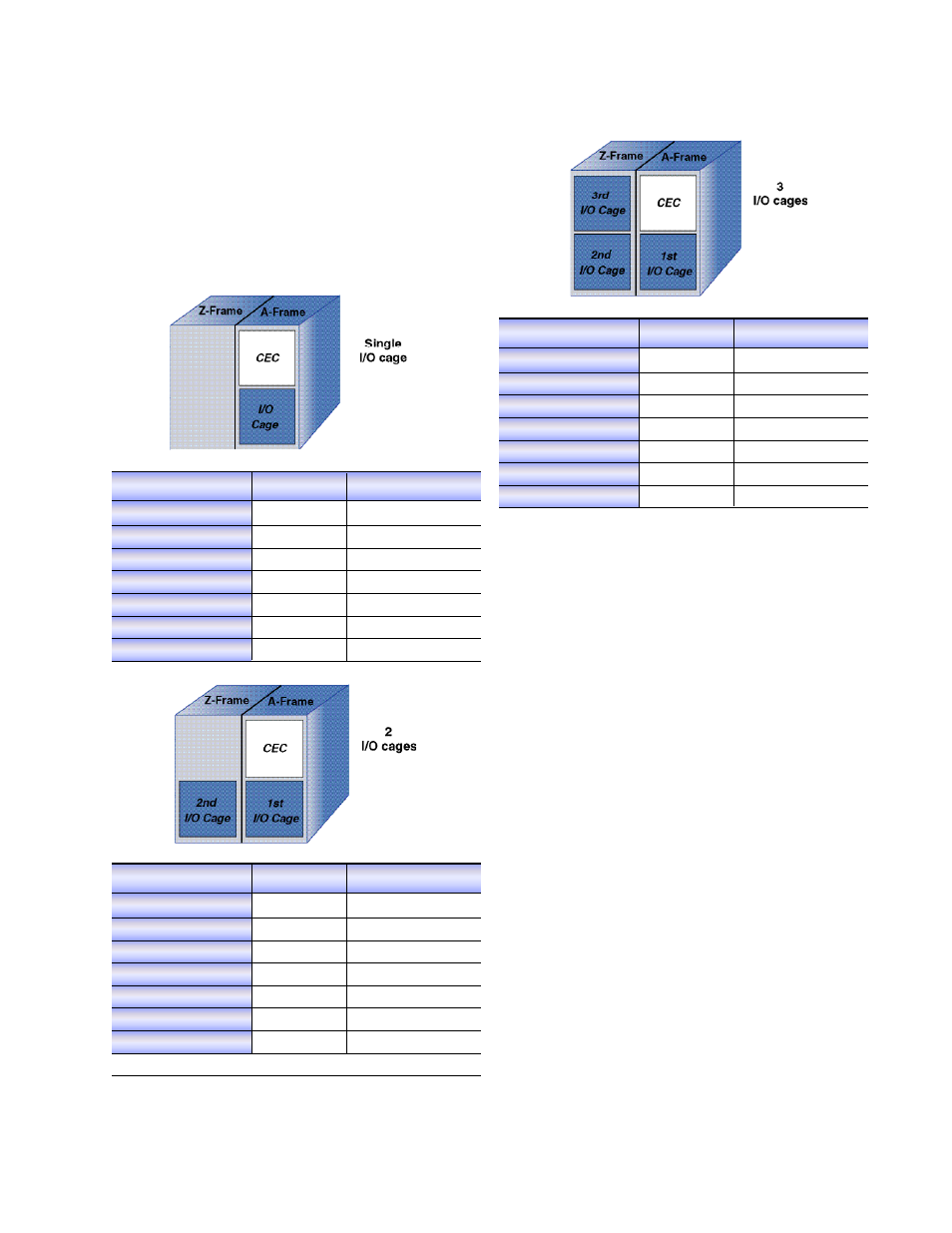

The following diagrams show the capability and fl exibility
built into the I/O subsystem. All machines are shipped with
two frames, the A-Frame and the Z-Frame, and can have
between one and three I/O cages. Each I/O cage has 28
I/O slots.
I/O Feature Type Features Maximum
ESCON 24 360 channels
FICON Express2/4 24 96 channels
FICON Express 24 48 channels
OSA-Express3 24 48/96 (2 or 4 ports)
OSA-Express2 24 48 ports
OSA-Express3 LR/SR 24 48 ports
Crypto Express2 8 16 adapters
I/O Feature Type Features Maximum
ESCON 48 720 channels
FICON Express2/4 48 192 channels
FICON Express 48 96 channels
OSA-Express3 24 48/96 (2 or 4 ports)
OSA-Express2 24 48 ports
OSA-Express3 LR/SR 24 48 ports
Crypto Express2 8 16 adapters
I/O Feature Type Features Maximum
ESCON 69 1024 channels
FICON Express2/4 84 336 channels
FICON Express 60 120 channels
OSA-Express3 24 48/96 (2 or 4 ports)
OSA-Express2 24 48 ports
OSA-Express3 LR/SR 24 48 ports
Crypto Express2 8 16 adapters
General Information:
• ESCON confi gured in 4-port increments. Up to a maxi-
mum 69 cards, 1024 channels.
• OSA-Express2 can be Gigabit Ethernet (GbE),
1000BASE-T Ethernet or 10 GbE.
• OSA-Express can be Gigabit Ethernet (GbE),
1000BASE-T Ethernet or Fast Ethernet.
• If ICB-3 is required on the system, it will use up a single
I/O slot for every 2 ICB-3 to accommodate the STI-3
card.
Note: In the fi rst and second I/O cage, the last domain in
the I/O cage is normally used for ISC-3 and ICB-3 links.
When the fi rst 6 domains in an I/O cage are full, additional
I/O cards will be installed in the next I/O cage. When all
the fi rst 6 domains in all I/O cages are full and no Coupling
link or PSC cards are required, the last domain in the I/O
cage will be used for other I/O cards making a total of 28
per cage.
