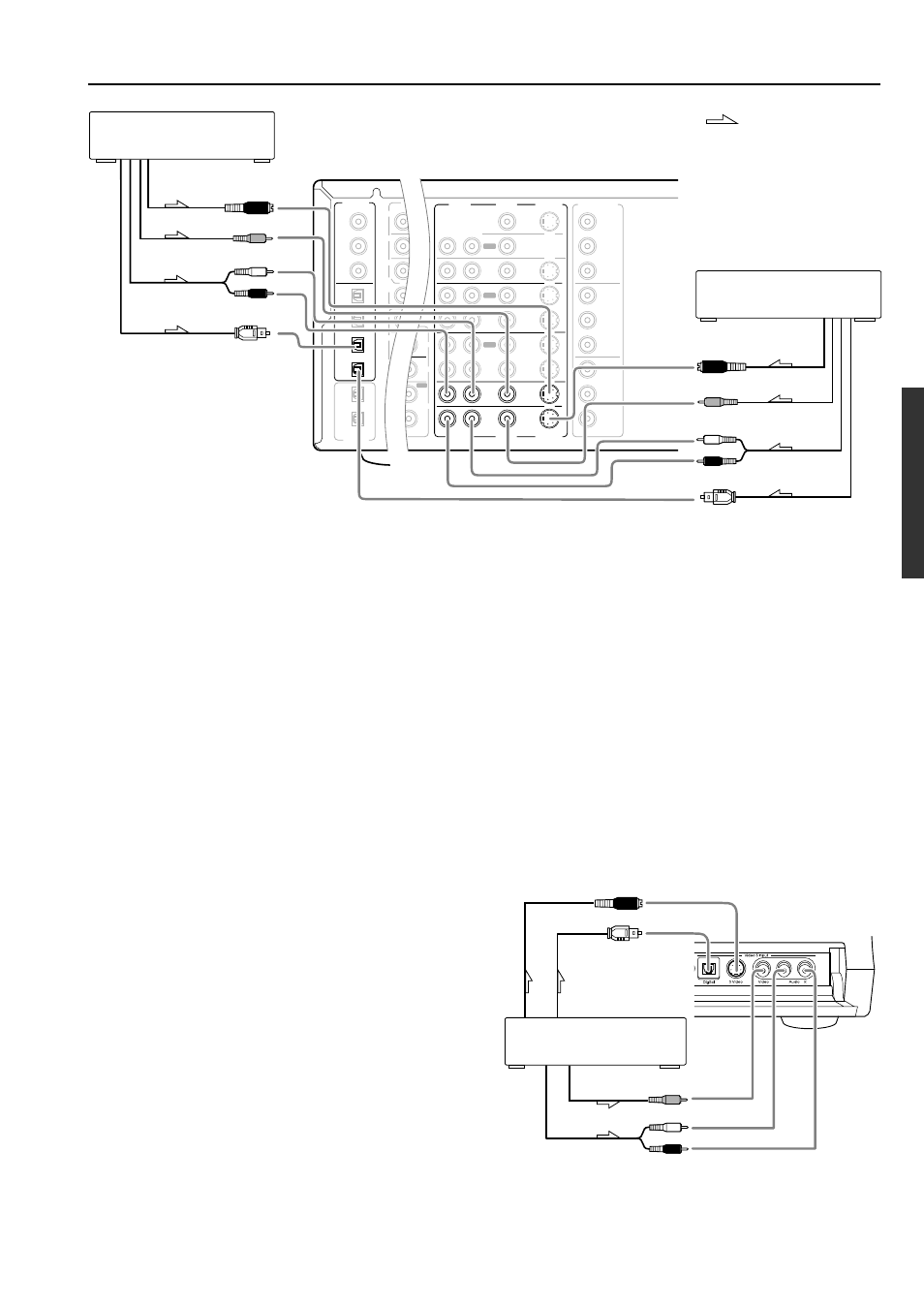

Connecting to Audio/Video equipment
S Video output
Digital output
(optical)
10. Video camera/ Video game
(VIDEO 5 INPUT)
Video output
Analog output
8, 9. Connecting a satellite tuner, television, or settop box
(VIDEO 3 or 4)
Using an RCA video cable, connect the video output jack
(composite) of the device to the VIDEO 3 (or 4) VIDEO IN jack of
the DTR-8.3. Or if the device has an S video output jack, connect it
to the VIDEO 3 (or 4) S VIDEO IN jack of the DTR-8.3 using an S
video cable. Or if the device has component video outputs, connect
them to one of the banks of COMPONENT VIDEO INPUT jacks on
the DTR-8.3.
With the initial settings of the DTR-8.3, the VIDEO 3 and 4 input
sources are set for the COMPONENT VIDEO INPUT 2 jacks.
If you connect the device to the COMPONENT VIDEO INPUT 1
jacks, this must be changed at Setup Menu
→ Input Setup → Video
Setup
→ Component Video (see page 51).
Using an RCA audio cable, connect the audio output jack of the
device to the VIDEO 3 (or 4) AUDIO IN jacks of the DTR-8.3.
Make sure that you properly connect the left channel to the L jack
and the right channel to the R jack.
If the device has a digital output, connect it to either the DIGITAL
INPUT COAX jack or DIGITAL INPUT OPT jack of the DTR-8.3
depending on the type of connector on the device.
With the initial settings of the DTR-8.3, the VIDEO 3 input source is
set for digital input at the OPT 3 jack, and the VIDEO 4 input
source is set for digital input at the OPT 4 jack.
If the digital connection is made at a different jack, this must be changed
at Setup Menu
→ Input Setup → Digital Setup (see page 49).
