20
Connecting to Audio/Video equipment
7. Connecting a DVD recorder or other digital video recording
device (VIDEO 2)
Using RCA video cables, connect the video output jack (composite)
of the device to the VIDEO 2 VIDEO IN jack of the DTR-8.3 and
connect the video input jack of the device to the VIDEO 2 VIDEO
OUT jack of the DTR-8.3. Or if the device has S video input and
output jacks, connect them to the VIDEO 2 S VIDEO IN and OUT
jacks of the DTR-8.3 using S video cables. Or if the device has
component video outputs, connect them to one of the banks of
COMPONENT VIDEO INPUT jacks on the DTR-8.3.
With the initial settings of the DTR-8.3, the VIDEO 2 input
source is set for the COMPONENT VIDEO INPUT 2 jacks.
If you connect the device to the COMPONENT VIDEO INPUT 1
jacks, this must be changed at Setup Menu
→ Input Setup → Video
Setup → Component Video (see page 51).
Using RCA audio cables, connect the audio output jacks of the
device to the VIDEO 2 AUDIO IN jacks of the DTR-8.3 and connect
the audio input jacks of the device to the VIDEO 2 AUDIO OUT
jacks of the DTR-8.3. Make sure that you properly connect the left
channels to the L jacks and the right channels to the R jacks.
If the device has a digital output, connect it to either the DIGITAL
INPUT COAX jack or DIGITAL INPUT OPT jack of the DTR-8.3
depending on the type of connector on the device.
With the initial settings of the DTR-8.3, the VIDEO 2 input
source is set for digital input at the COAX 3 jack.
If the digital connection is made at a different jack, this must be
changed at Setup Menu
→ Input Setup → Digital Setup (see page
49).
If the device has a digital input, connect it to the DIGITAL OUTPUT
OPT jack of the DTR-8.3 for digital recording of the REC OUT
signal from the DTR-8.3.
PRE
FRONT
SUB
SURR
R
GND
SURR
BACK/
ZONE 2
R
FRONT
SUB
SURR
SURR
BACK
R
R
DIGITAL
INPUT
DIGITAL
OUTPUT
OPT
OPT
2
1
2
3
4
1
2
1
3
COAX
AUDIO VIDEO S VIDEO
MONITOR
OUT
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO VIDEO S VIDEO
COMPONENT
VIDEO
Y
P B
P R
OUTPUT
INPUT 1
Y
P B
P R
INPUT 2
Y
P B
P R
R L
OUT
OUT
OUT PHONO
UDIO
L
CD
TAPE
L
UDIO
IN
OUT
AM
FM
75
R L
TENNA
P R
P B
Y
Note:
The output from the DIGITAL OUTPUT jack of the DTR-8.3 is
only the digital signal input to the DIGITAL INPUT jack.

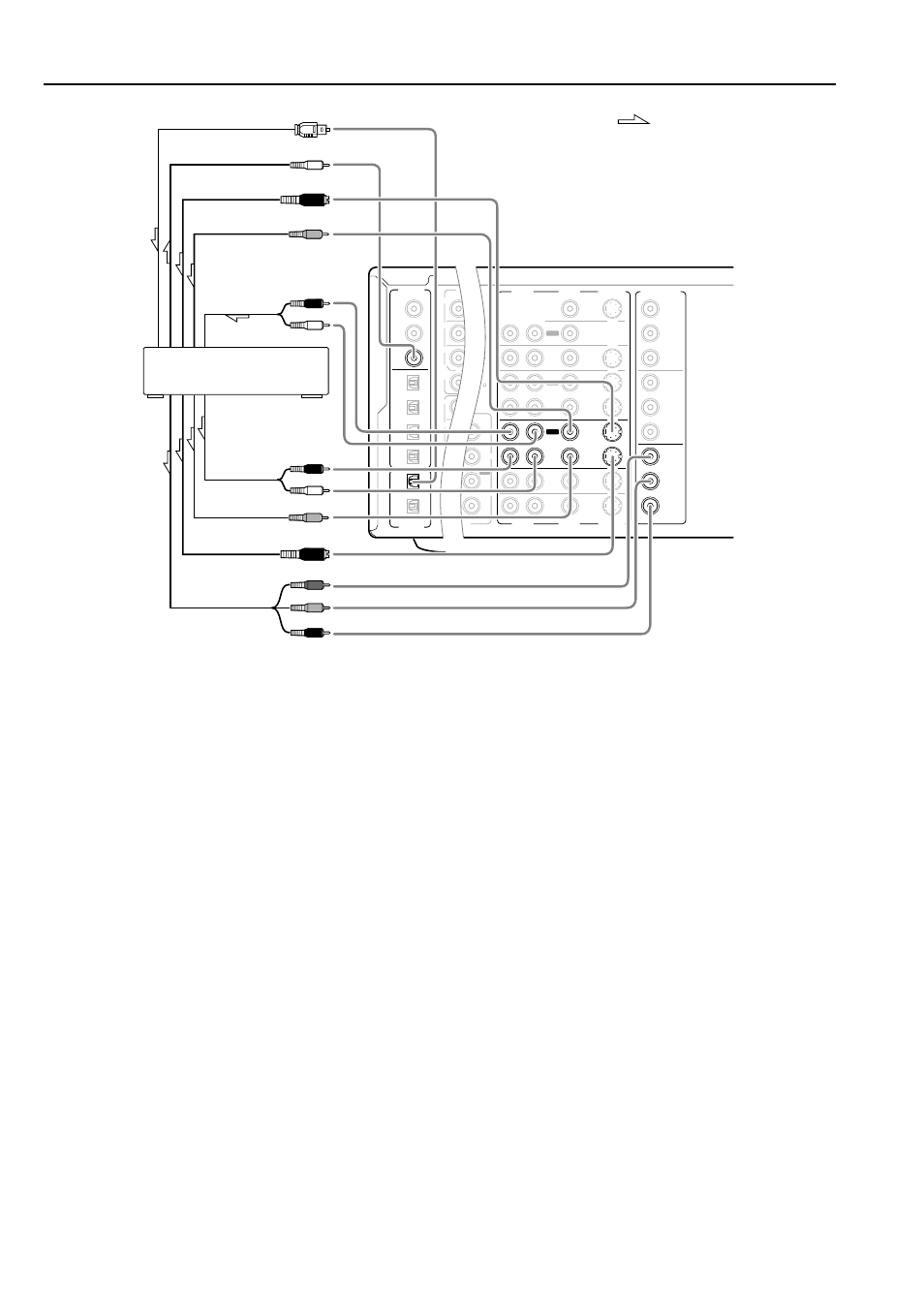

7. DVD recorder, other digital video
recording device (VIDEO 2)
Digital audio input (optical)
Digital audio output (coaxial)
S Video input
Video input
Analog audio
output
Video output
S Video output
Component video output
R (red)
L (white)
R (red)
L (white)
Analog audio
input
: Signal flow
