Figure 6-18 – Intel SGI Altix 450 User Manual
Page 154
132
007-4857-002
6: Maintenance and Upgrade Procedures
c.
Mount the card in the carrier, (see Figure 6-18) and ensure the following occurs:
– The card connectors protrude through the bulkhead where the metal filler plate was
located.
– The edge connectors fit between the bottom guides of the carrier.
– The top of the card fits under the clips on the guide bar.
d.
Tighten the three screws on the guide bar. Skip step 6 and proceed to step 7.

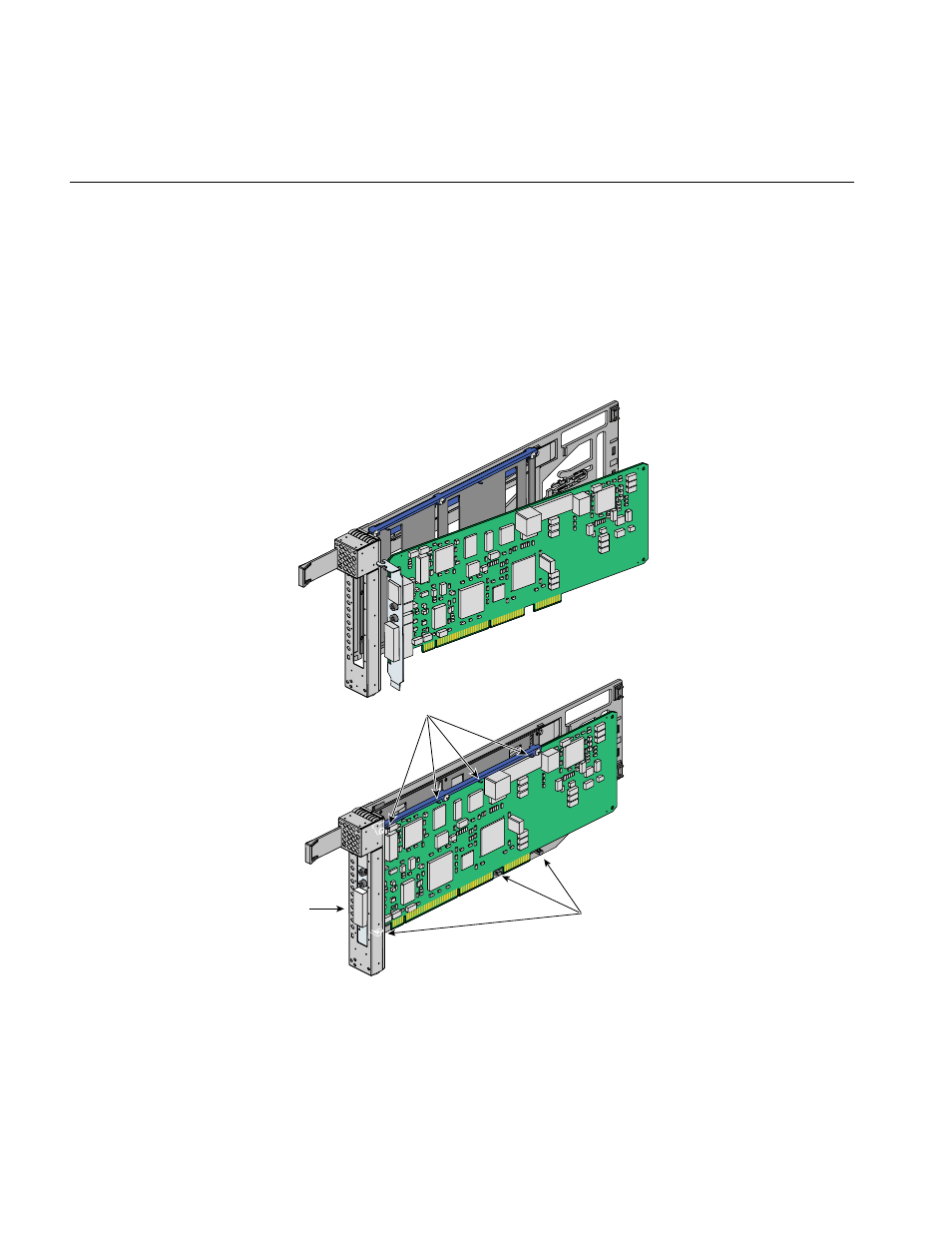

Figure 6-18
Mounting Card in Carrier
Guides
Bulkhead
Clips
