Appendix E: Supported Intel
®
Server Chassis Intel
®
Server Board S5000PAL / S5000XAL TPS
Revision 1.4
Intel order number: D31979-007
108
Appendix E: Supported Intel
®
Server Chassis
The Intel ® Server Board S5000PAL / S5000XAL is supported in the following Intel high density rack
mount server chassis:
• Intel ® Server Chassis SR1500
• Intel ® Server Chassis SR1550
• Intel ® Server Chassis SR2500
This section provides a high level descriptive overview of each chassis. For more detail, please
reference the appropriate Technical Product Specification (TPS) available for each.
TP02154
A
B
E
C
D
F
H
I
J
K
L
A
O
N
M
G
P

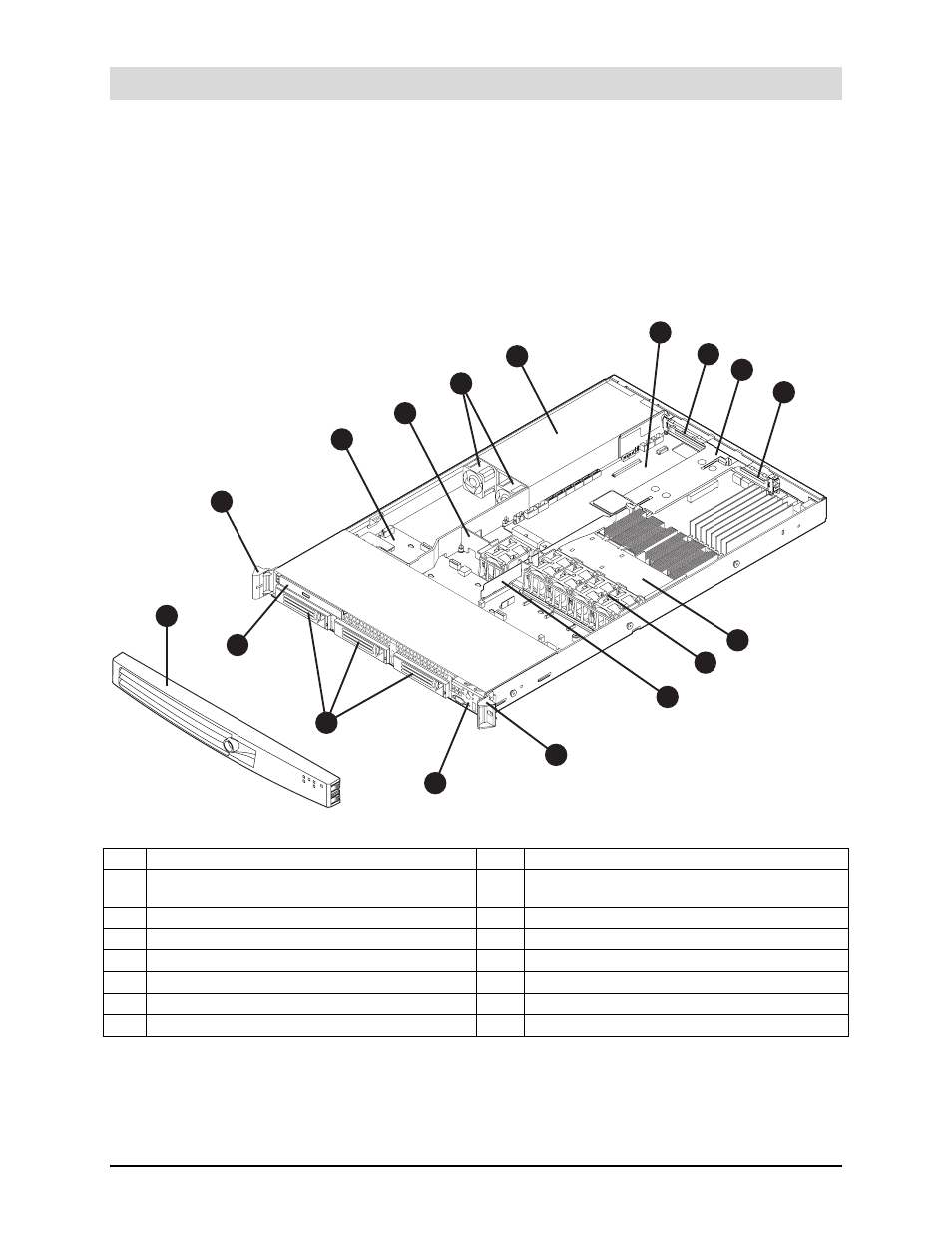

A Rack handles I PCI card bracket (low profile) – PCIe*
B Backplane – Passive SAS/SATA or Active
SAS/SAS RAID J Processor air duct
C Air baffle K Fan module
D Power supply fans L Bridge board
E 600 Watt Power supply M Control panel (standard control panel shown)
F Intel ® Server Board S5000PAL / S5000XAL N Hard drive bays (drives not included)
G PCI card bracket (full height) – PCI-X* or PCIe* O Slimline drive bay (drive not included)
H PCI add-in riser assembly P Front bezel (optional)
Figure 29. 1U – Intel
®
Server Chassis SR1500 Overview
