Description
9
Server Board Connectors and Components

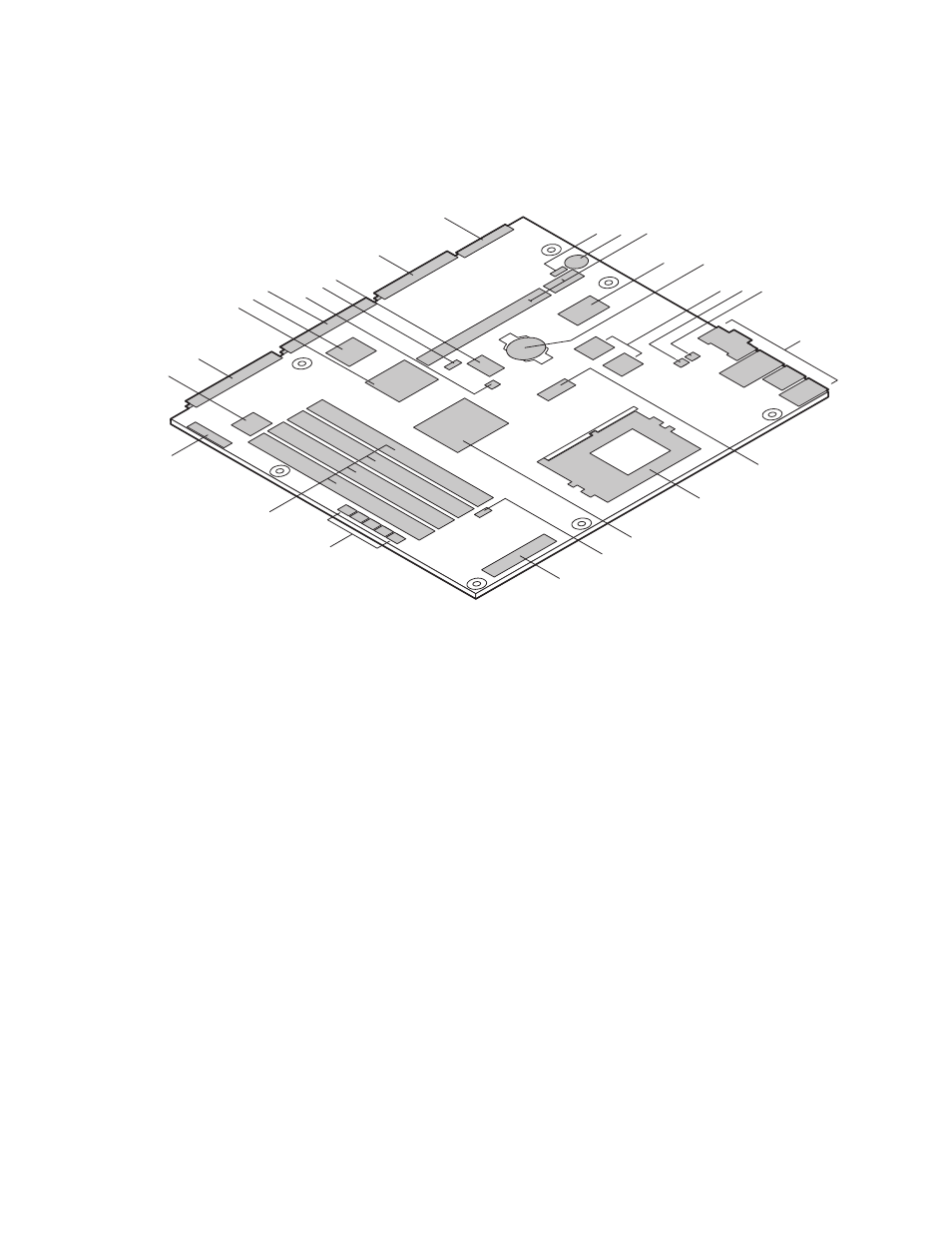

Figure 2 shows the locations of the server board connectors and components.
A
B
C
D
E
F
G H
J
I
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
AA
OMO9446
A.
Wake on LAN Connector
O.
System Fans Connectors
B.
Speaker
P.
DIMM Sockets
C.
PCI Riser Sideband and PCI Bus Connectors
Q.
Front Panel Connector
D.
SMSC I/O Controller
R.
Front Panel Controller
E.
Battery
S.
Primary IDE Connector
F.
Intel Pro/100+ Server (82559) Ethernet Controllers
T.
Intel 82371EB PIIX4E
G.
SCSI LED Connector
U.
Gluechip
H.
Wake on Ring Connector
V.
Secondary IDE Connector
I.
Back Panel I/O Connectors
W.
Password Clear Jumper
J.
Clock Generator
X.
BIOS Setup Configuration Jumper
K.
PGA370 Processor Socket
Y.
Flash Memory
L.
Intel 82443BX PAC
Z.
Diskette Drive Connector
M.
Heceta 2 Hardware Monitor Controller
AA.
High-Density Diskette Drive Connector
N.
Power Supply Connector
Figure 2. Server Board Connectors and Components
