GA-N680SLI-DQ6 Motherboard - 32 -
English

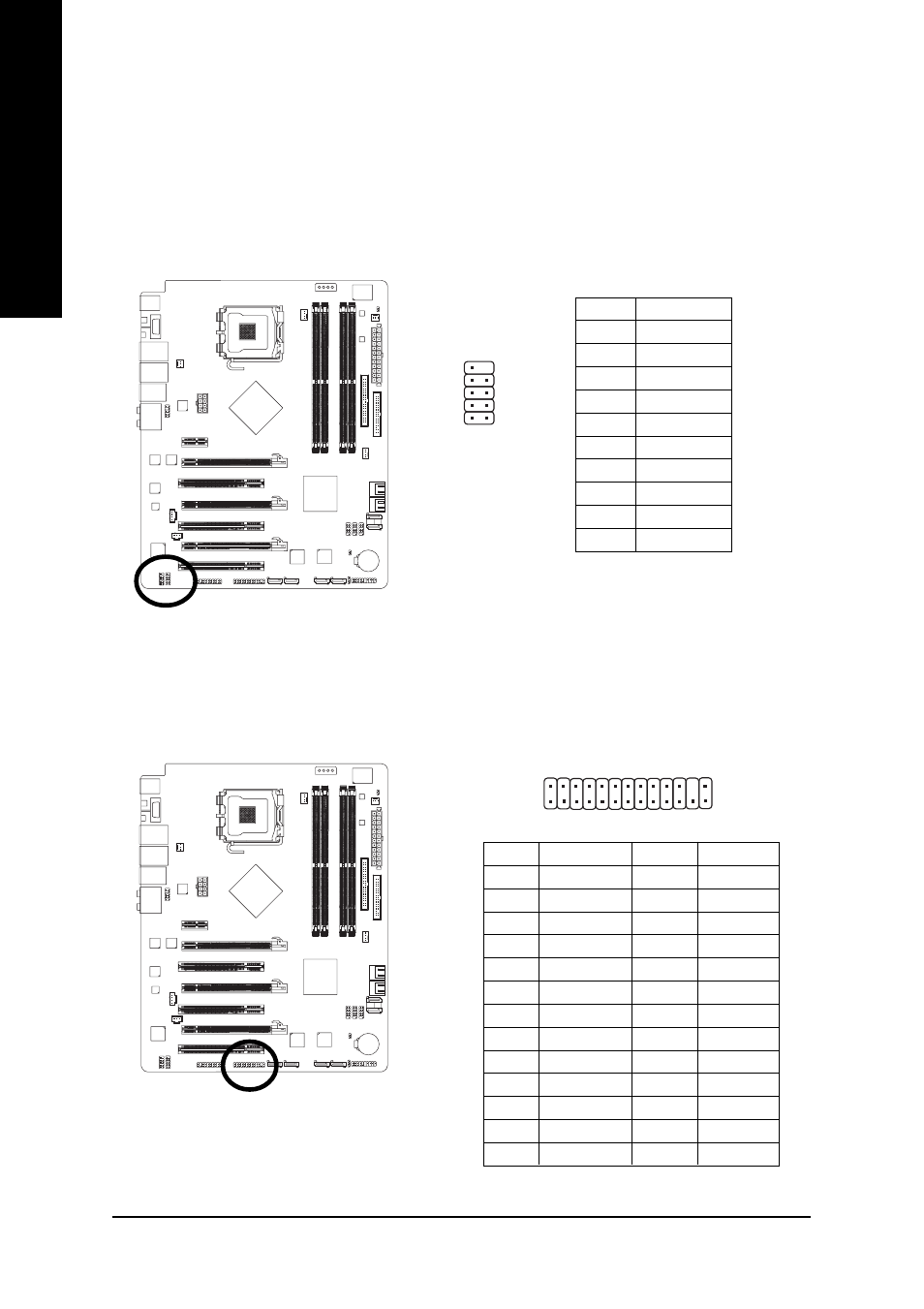

19) F1_1394 / F2_1394 (Front IEEE 1394 Connector)
Serial interface standard set by Institute of Electrical and Electronics Engineers, which has features
like high speed, high bandwidth and hot plug. Be careful with the polarity of the IEEE 1394
connector. Check the pin assignment carefully while you connect the IEEE 1394 cable, incorrect
connection between the cable and connector will make the device unable to work or even damage
it. For optional IEEE 1394 cable, please contact your local dealer.
Pin No. Definition
1 TPA+
2 TPA-
3 GND
4 GND
5 TPB+
6 TPB-
7 Power (12V)
8 Power (12V)
9 No Pin
10 GND
1
9
2
10
20) LPT Connector
The LPT connector allows connection of a printer, scanner and other peripheral devices.
1
2
25
26
Pin No. Definition
1 STB-
2 AFD-
3 PD0
4 ERR-
5 PD1
6 INIT-
7 PD2
8 SLIN-
9 PD3
10 GND
11 PD4
12 GND
13 PD5
Pin No. Definition
14 GND
15 PD6
16 GND
17 PD7
18 GND
19 ACK-
20 GND
21 BUSY
22 GND
23 PE
24 No Pin
25 SLCT
26 GND
