2.8 Drive Enclosure Device Addressing
Each enclosure has 16 drive bays. The SEL_ID of each drive is determined by the device slot
(0-15) in which it is installed and the address range setting, which is set by means of the
Enclosure ID switch on the Ops Panel (shown in
Figure 1–2 on page 2 ) at the rear of the
enclosure. The switch settings are shown in Table 2–2

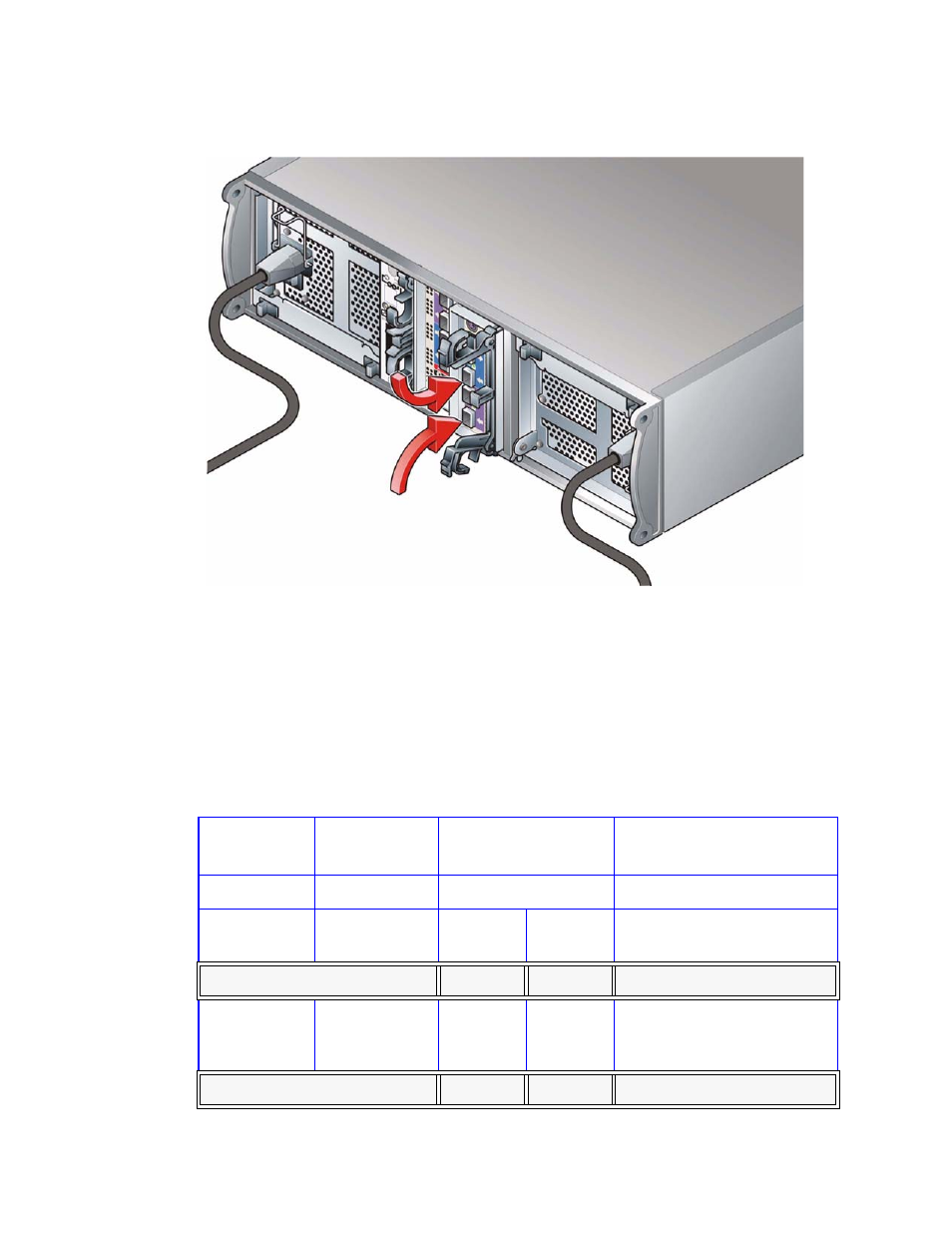

Figure 2–9 Installing an SCM I/O Module in Bay 4
Table 2–2 Ops Panel Switch Functions (Default settings for DCS9550 1S1 Storage Expansion Unit
SCM usage at 1Gb/s)
Switch
Number Function Recommended
Setting Definition
1 thru 6 Not Used Off
7 & 8 Drive Loop
Speed Select Sw 7 Sw 8
DCS9550 Controllers On Off Force 2Gb/s
9 & 10 Drive
Addressing
Mode Selection Sw 9 Sw 10
DCS9550 Controllers Off On Mode 1
