48

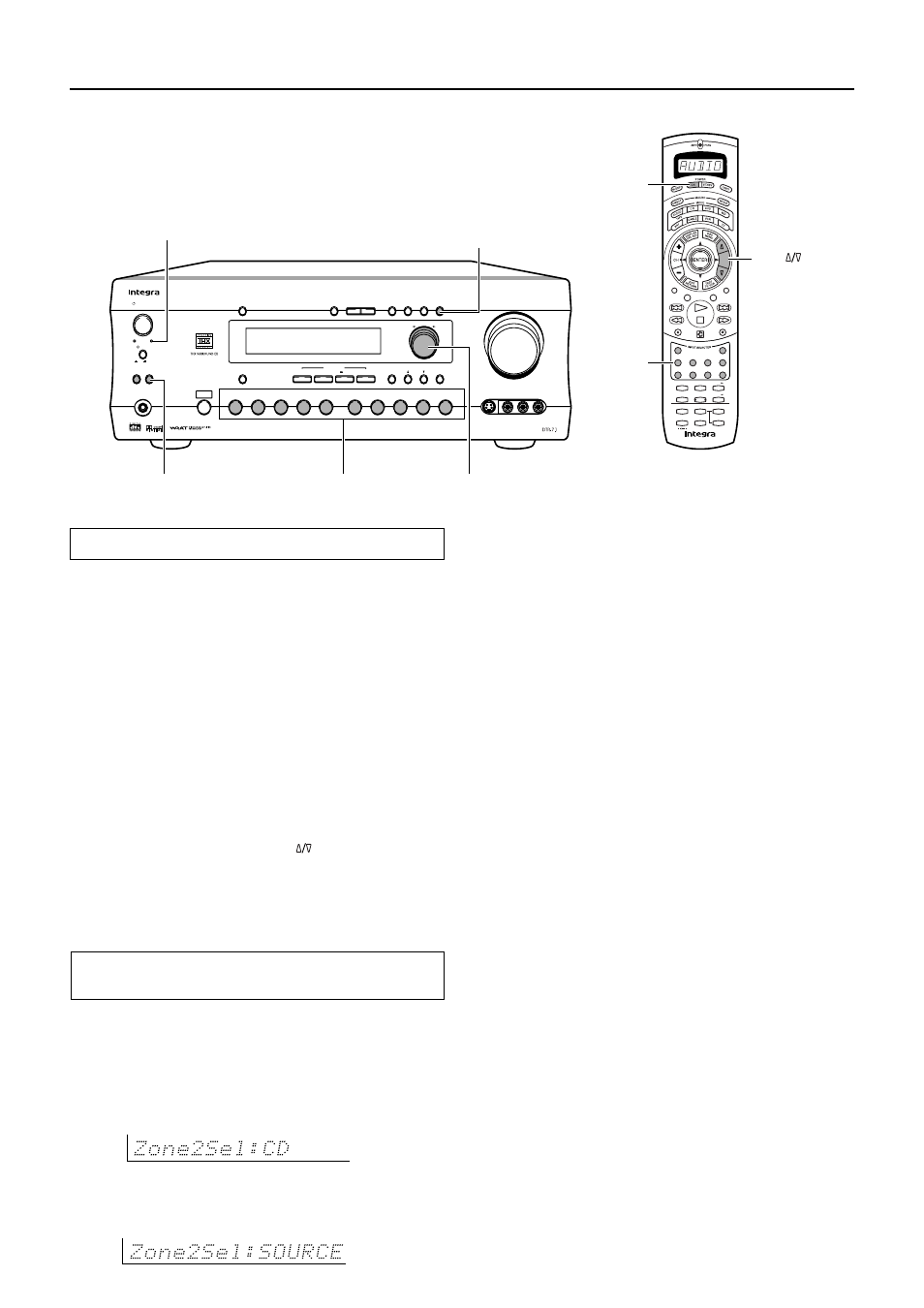

Enjoying music in the remote zone

Controlling the DTR-7.1 from the remote zone

1. Aiming at the remote sensor, press the ON

button on the remote controller.

Note:

Be aware that if you start using the system in the remote zone
(Zone 2) while a recording is going on in the main zone, the
recording will be stopped in the main zone.

2. Press the appropriate input selector button on

the remote controller to select the desired
source.

3. Adjust the volume to the desired level.

• When the speakers are connected to the ZONE 2 SPEAKERS

terminals:

Adjust the volume using the VOL

buttons on the remote

controller.

• When an amplifier is connected to the ZONE 2 OUT

terminals:

Adjust the volume at the amplifier in the remote zone (Zone 2).

Caution:

If you are not using the system in the remote Zone, always
press the Zone 2 button consecutively to turn the ZONE 2
function off.

Notes:

• If the source for the main zone is selected as the source for the

remote zone and the source for the main zone is changed, then
the source for the remote zone will change as well.

• The analog signals of the L and R channels for the selected

source are output to Zone 2.

• You can only play the source in the Stereo mode or Direct

mode in the main zone, when you are playing the source in the
remote zone.

(When speakers are connected to the ZONE 2 SPEAKERS
terminals.)

• If the Rec Out button is pressed in the main room while

someone is using the system in the remote zone, the Zone 2
function will be deactivated and the source will turn off in the
remote zone.

• The Zone 2 terminal is an analog output. Digital signals are not

output. If no sound is heard from the selected input source,

To select the same source for the remote zone that is selected
for the main zone, press the Zone 2 button again until
“Zone2Sel:SOURCE” appears in the display.

Controlling the DTR-7.1 without the remote
controller

1. Press the Zone 2 button on the DTR-7.1.

2. Select a source.

After pressing the Zone 2 button, you must press an input
source button within 3 seconds. The Zone 2 indicator lights.

Ex.: When the CD button is pressed.

When “Zone2Sel:Off” is displayed, the output to the remote
zone is turned off.

When speakers are connected to the ZONE 2 SPEAKERS
terminals, you can adjust the volume using the controls at the
DTR-7.1.

1. Press the Zone 2 Vol button.

2. While “ZONE 2Volume” is displayed, turn
the SSC dial to adjust the volume to the
desired level.

When an amplifier is connected to the ZONE 2 OUT terminals,
you cannot adjust the volume at the DTR-7.1. Adjust the
volume at the amplifier in the remote zone (Zone 2).

OPEN/COLSE

REC

AUDIO

MUTING

DISC

TRACK

DVD

CD

PH

TUN

T2

T1

V1

STEREO

1

2

3

6

5

4

7

+ 10

0

ENT

8

9

SURROUND

THX

DSP

LEVEL +

CH SEL

Re-EQ

LEVEL –

DIMMER

LATE NIGHT

DIRECT

DSP

V2

V3

V –

ON

VOL

Smart Scan

Controller

Push To Enter

DSP/Preset

Standby/On

Standby

Zone 2

Rec Out

Zone 2

Phones

Master Volume

Video 1

VCR 1

Video 2

Video 3

Tape

FM

AM

Phono

CD

DVD

Dimmer

Down

Up

Tuning

Stereo

Display

Listening Mode

/DTS

Surround

On

O f f

Power

FM Mute/

Mode

Character/

Memory

Bass/

Treble

Zone 2 Vol

CH Level

Exit

Direct

THX

Menu

Video 4 / Video Cam Input

S Video

Video

L Audio R

-

-

VCR 2

Video 4

Audio

Selector

HOME THEATER CONTROLLER

RC-418M

Zone 2

Zone 2 Vol

SSC

Input source buttons

Zone 2 indicator

INPUT

SELECTOR

buttons
