14

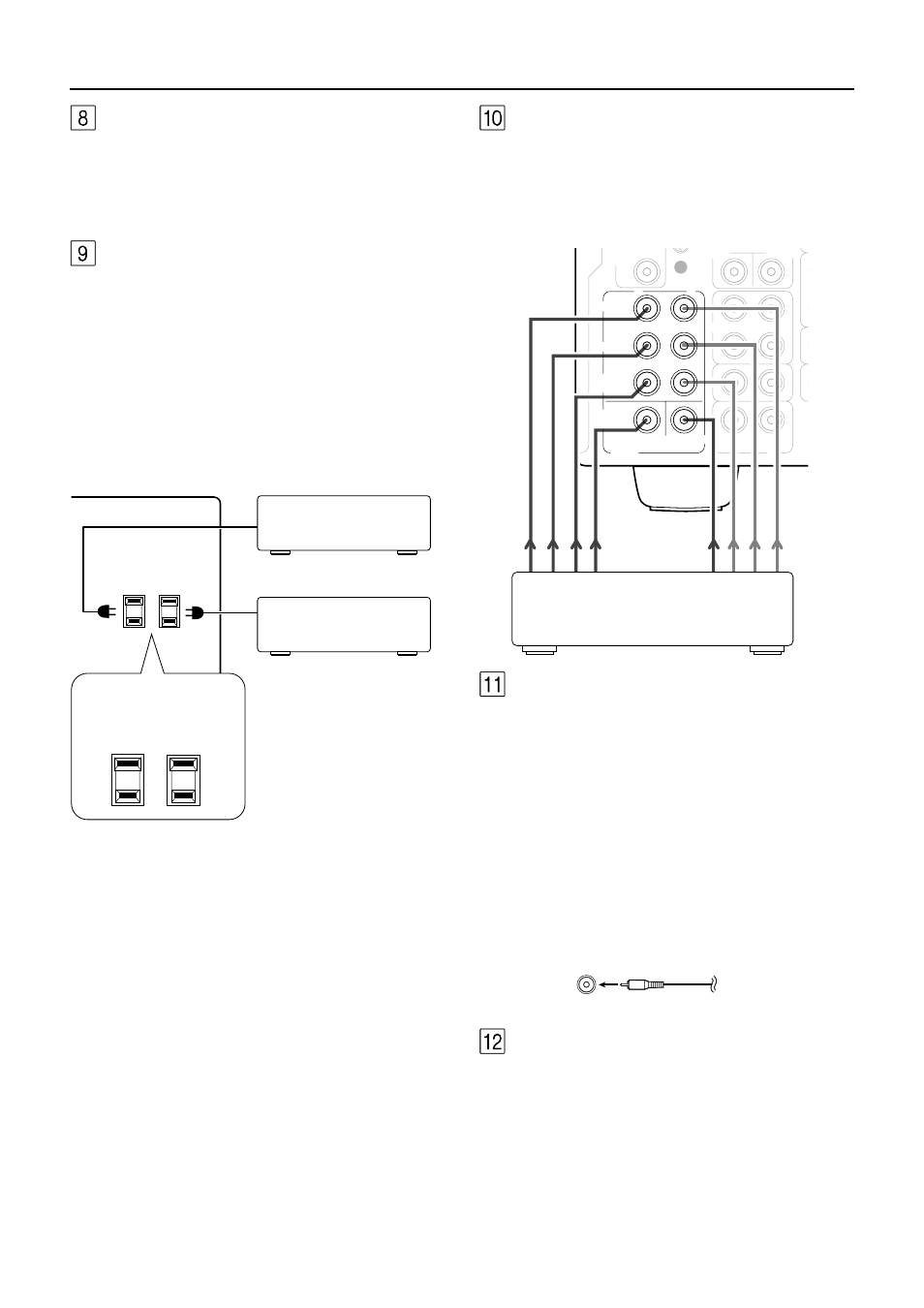

Rear panel facilities
MULTI CHANNEL INPUT
By connecting a DVD player, MPEG decoder, or other component
that has a multi channel port, you can playback the audio with 5.1
channel or 7.1 channel output. So, be sure to prepare a cable that
can properly connect the DTR-7.1 to the peripheral device.
AUDIO IN/OUT
These are the analog audio inputs and outputs. There are 7 audio
inputs (4 of which are linked to video inputs) and 3 audio outputs
(2 of which is linked to a video output). The audio jacks are
nominally labeled for cassette tape decks, compact disc players,
turntables, and DVD players. To the audio jacks for VIDEO 1 to 3
connect the audio output from VCRs, LD players, and other video
components. The audio inputs and outputs require RCA-type
connectors.
• When connecting a VCR or other video component, make sure
you connect the audio and video leads together (i.e., both to
VIDEO 3).
• The DTR-7.1 is designed for use with turntables that use
moving magnet cartridges.
RCA type
AC OUTLETS
AC 120V 60Hz
SWITCHED
TOTAL 120W 1A MAX.
MONITOR OUT
The monitor output includes both composite video and S video
configurations. This output is for connecting television monitors
or projectors.
SPEAKERS
6 terminals are provided for the front left, front right, front center,
surround left, surround right, and surround back speakers. Speaker
outputs are compatible with banana plug connectors (other than
European models).
AC OUTLETS
The DTR-7.1 is supplied with AC mains outlets for connecting the
power cords from other devices so that their power is supplied
through the DTR-7.1. By doing this, you can use the STANDBY/
ON button on the DTR-7.1 to turn on and off the connected
devices as well.
Caution:
Make sure that the total capacity of the other components
connected to this unit does not exceed the capacity that is printed
on the rear panel.
For this model, the capacity is 120 watts.
DTR-7.1 MULTI CHANNEL INPUT
INPUT
(COAXAL)
2
WOOFER
OUT
TAPE
CD
PH
R L
CENTER
IN
FRONT
SURR
SURR
BACK
SUB
WOOFER
MULTI CHANNEL
INPUT
(SB)
CENTER
R L
DVD player/MPEG decoder
