Rear panel facilities
• Insert all plugs and connectors securely. Improper
connections can result in noise, poor performance, or
damage to the equipment.
Improper connection
Inserted completely

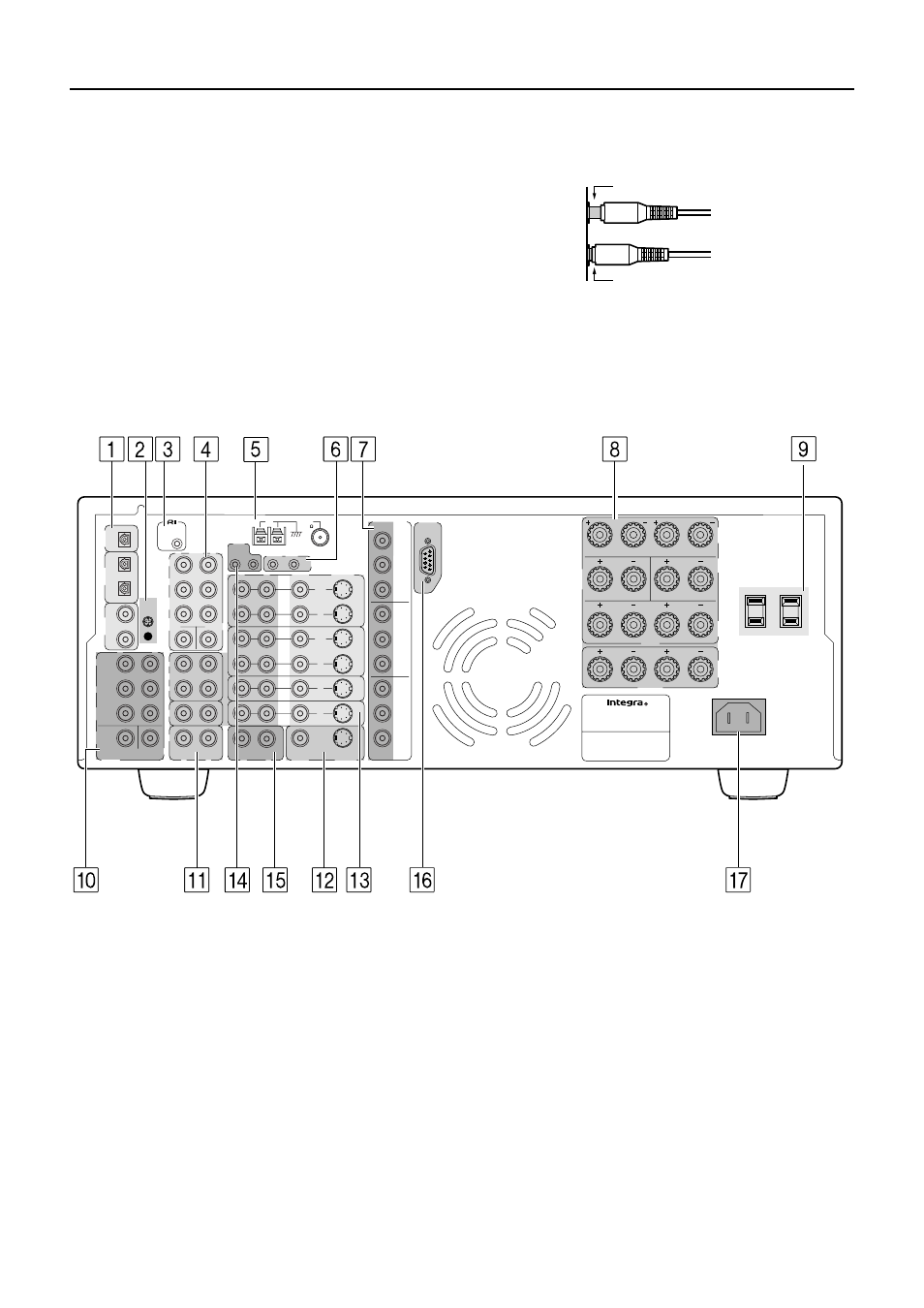

Here is an explanation of the terminals found on the rear of the
DTR-7.1 and how they are used. Before connecting your audio and
video components, be sure to read this section carefully and then
proceed to the explanations on how to connect each individual
component (see pages 16).
• Be sure to always refer to the instructions that came with
the component that you are connecting.
• Do not plug in the power cord until all connections have
been made.
• For input jacks, red connectors (marked R) are used for
the right channel, white connectors (marked L) are used
for the left channel, and yellow connectors (marked V) are
used for video connection.
• Do not bind audio/video connection cables with power
cords and speaker cables. Doing so may adversely affect
the picture and sound quality.
