SECTION 7—SEAT AND ARMS
34

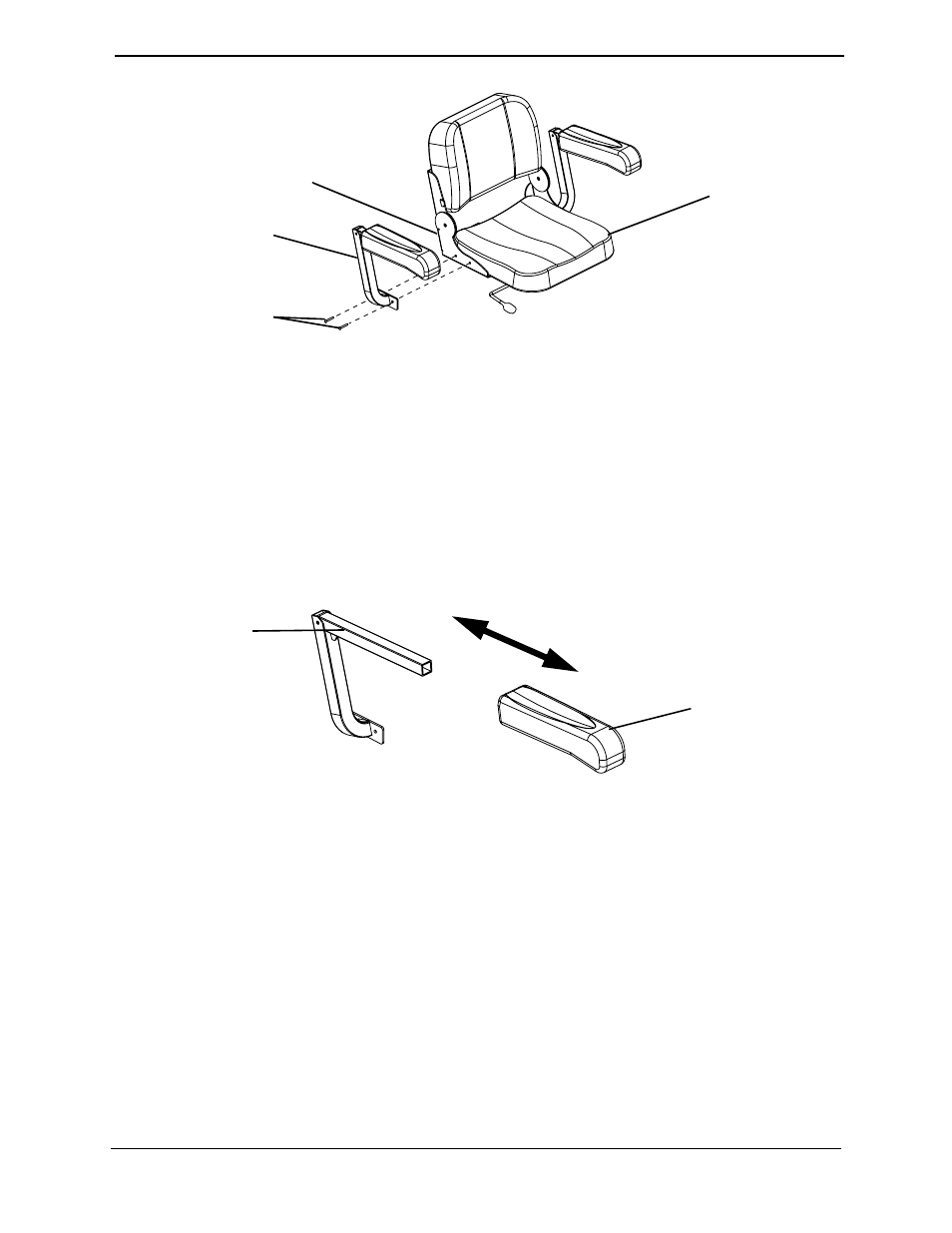

FIGURE 7.6 - Removing/Installing the Arms - Deluxe Seat Only
Replacing Armrest Pads - Deluxe Seat Only
NOTE: For this procedure, refer to FIGURE 7.7.
1. Slide the armrest pad from arm tube and discard.
2. Slide new armrest pad on to the arm tube.
3. Repeat STEPS 1-2 to replace the other armrest pad.
FIGURE 7.7 - Replacing Armrest Pads - Deluxe Seat Only
Seat Assembly
Seat Hinge
Arm
Mounting
Arm Tube
Armrest Pad
