4.

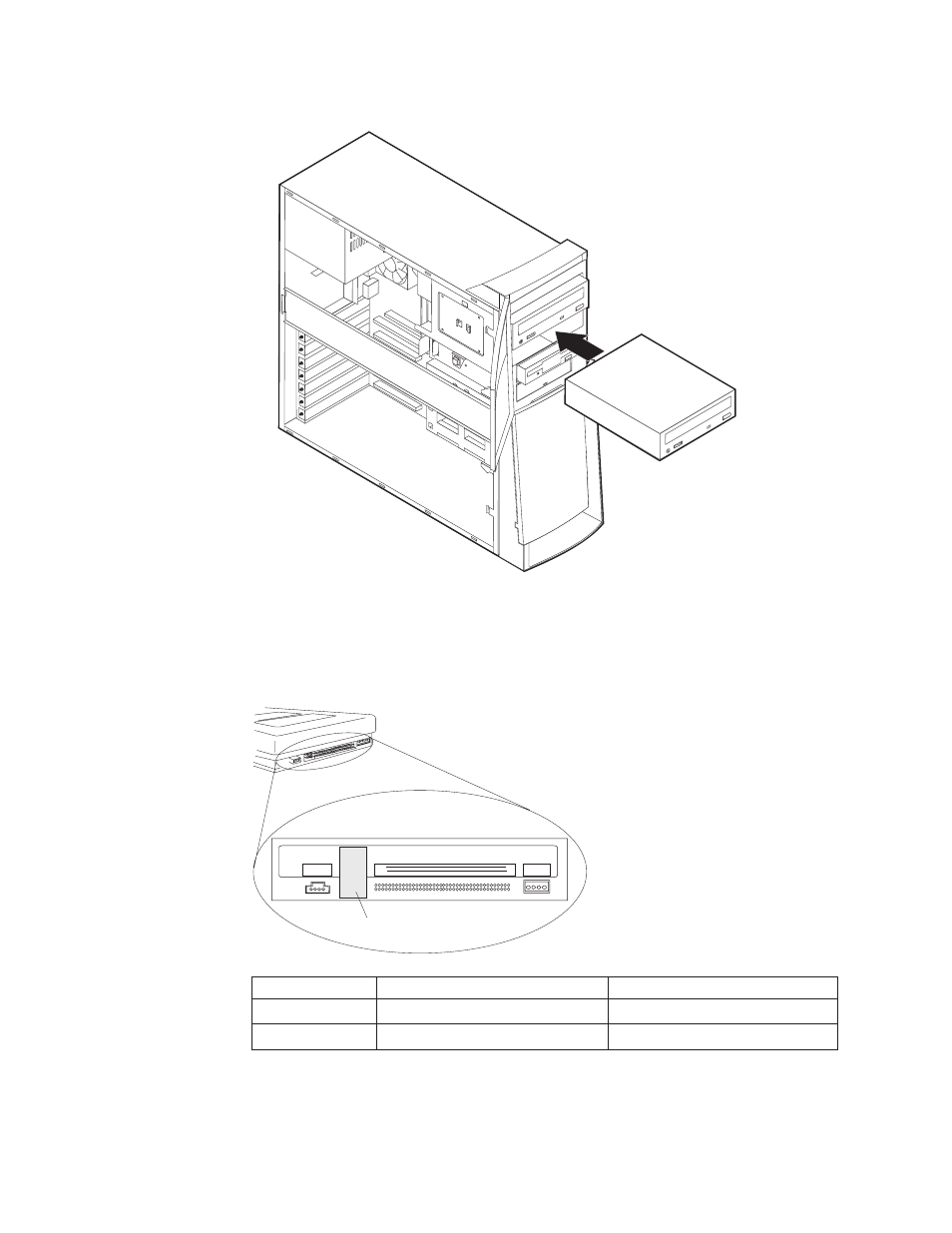

Install the drive into the bay. Align the screw holes and insert the two screws.
5.
Connect the power and signal cables to the drive.
CD-ROM drive jumper settings
CD-ROM and PC/CD-ROM drives use jumpers or tabs to set the drives as primary
(master) or secondary (slave). Refer to the drive connector labels or the figures
below for the drive settings.
AUDIO
IDE INTERFACE
See Jumper
Settings Below
DC INPUT
R G G L
5V G G 12V
39
40
1
2
CD-ROM
Primary (Master)
Secondary (Slave)
40X
: :
:
:
48X
: :
:
:
Installing internal drives in bays 5, 6 and 7
1.
Remove the cover (see “Removing the cover” on page 15).
18
Hardware Maintenance Manual A40 Type 6840 A40P Type 6841 A40i Type 2271: IBM NetVista Computer
