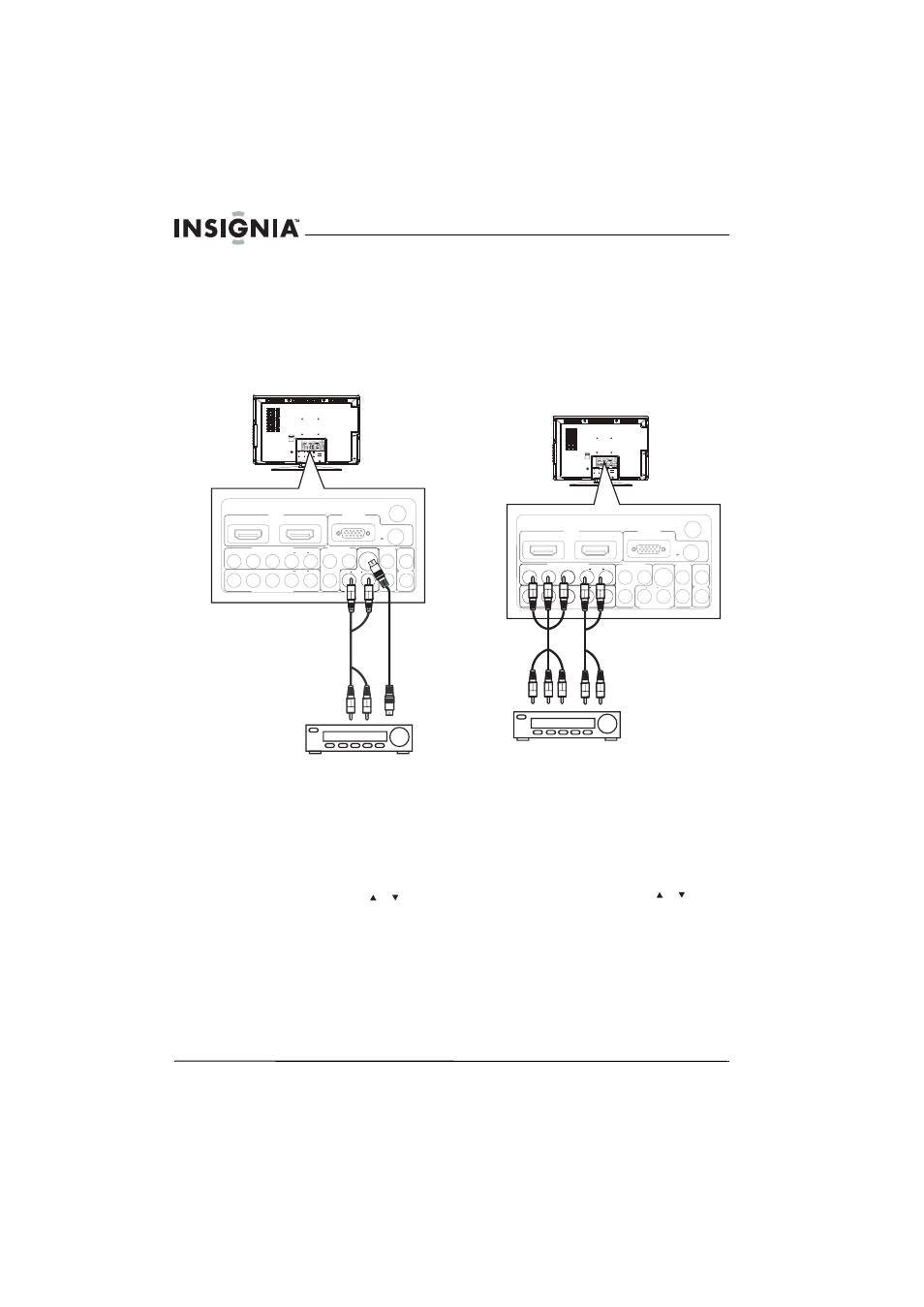

Connecting an S-Video device
To connect an S-Video device:
1 Make sure that your TV/DVD combo is turned
off and the power cord is disconnected.
2 Connect one end of an S-Video cable to the
S-VIDEO INPUT jack on the back of your
TV/DVD combo, then connect the other end of
the cable to the S-VIDEO OUT jack on the
S-Video device.
3 Connect one end of an audio cable to the
S-VIDEO INPUT (L/R AUDIO) jacks under the
S-VIDEO jack on the back of your TV/DVD
combo, then connect the other end of the cable
to the corresponding audio jacks on the
external device.
4 Turn on your TV/DVD combo.
5 Press INPUT on the remote control or the side of
your TV to display the input source menu, then
press INPUT repeatedly or press or to select
S-Video. Press OK/ENTER.
Connecting a component video device
To connect a component video device:
1 Make sure that your TV/DVD combo is turned
off and the power cord is disconnected.
2 Connect one end of the component video cable
to the COMPONENT1 INPUT (Y, CB/PB, and
CR/PR) or COMPONENT2 INPUT (Y, CB/PB, and
CR/PR) jacks on the back of your
TV/DVD combo, then connect the other end of
the cable to the corresponding component
video jacks on the external device.
3 Connect one end of an audio cable to the
COMPONENT1 INPUT (L/R AUDIO) or
COMPONENT2 INPUT (L/R AUDIO) to the right
of the video jacks you used on the back of your
TV/DVD combo, then connect the other end of
the cable to the corresponding audio jacks on
the external device.
4 Turn on your TV/DVD combo.
5 Press INPUT on the remote control or the side of
your TV to display the input source menu, then
press INPUT repeatedly or press or to select
Component1 or Component2. Press
OK/ENTER.
