PCA-6183 User’s Manual 128

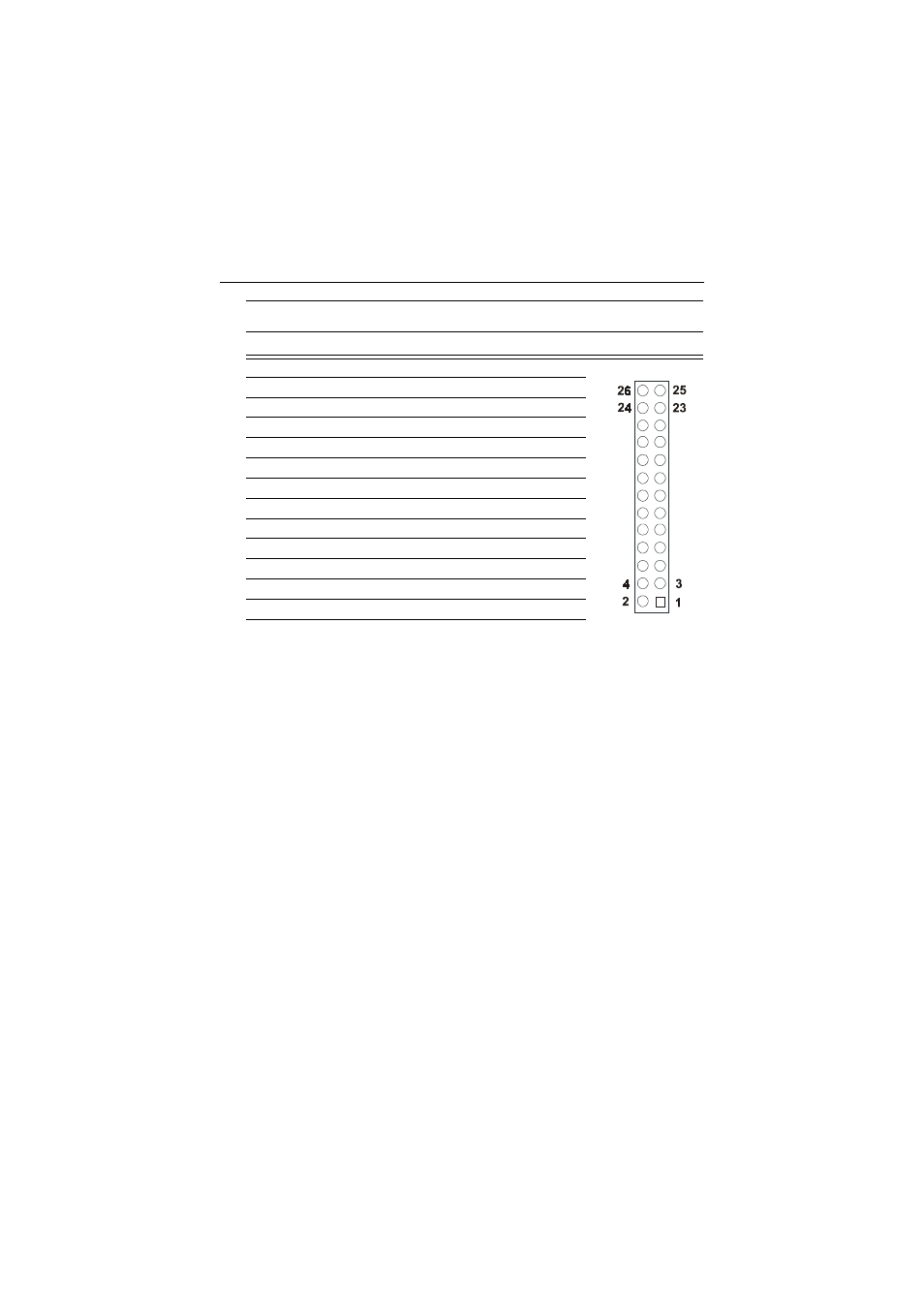

C.10 Parallel Port Connector (CN15)
Table C.10: Parallel Port Connector (CN15)
Pin Signal Pin Signal
1 STROBE* 2 AUTOFD*
3 D0 4 ERR
5 D1 6 INIT*
7 D2 8 SLCTINI*
9 D3 10 GND
11 D4 12 GND
13 D5 14 GND
15 D6 16 GND
17 D7 18 GND
19 ACK* 20 GND
21 BUSY 22 GND
23 PE 24 GND
25 SLCT 26 N/C
* low active
