PCA-6183 User’s Manual

120

Appendix C

Pin Assignments

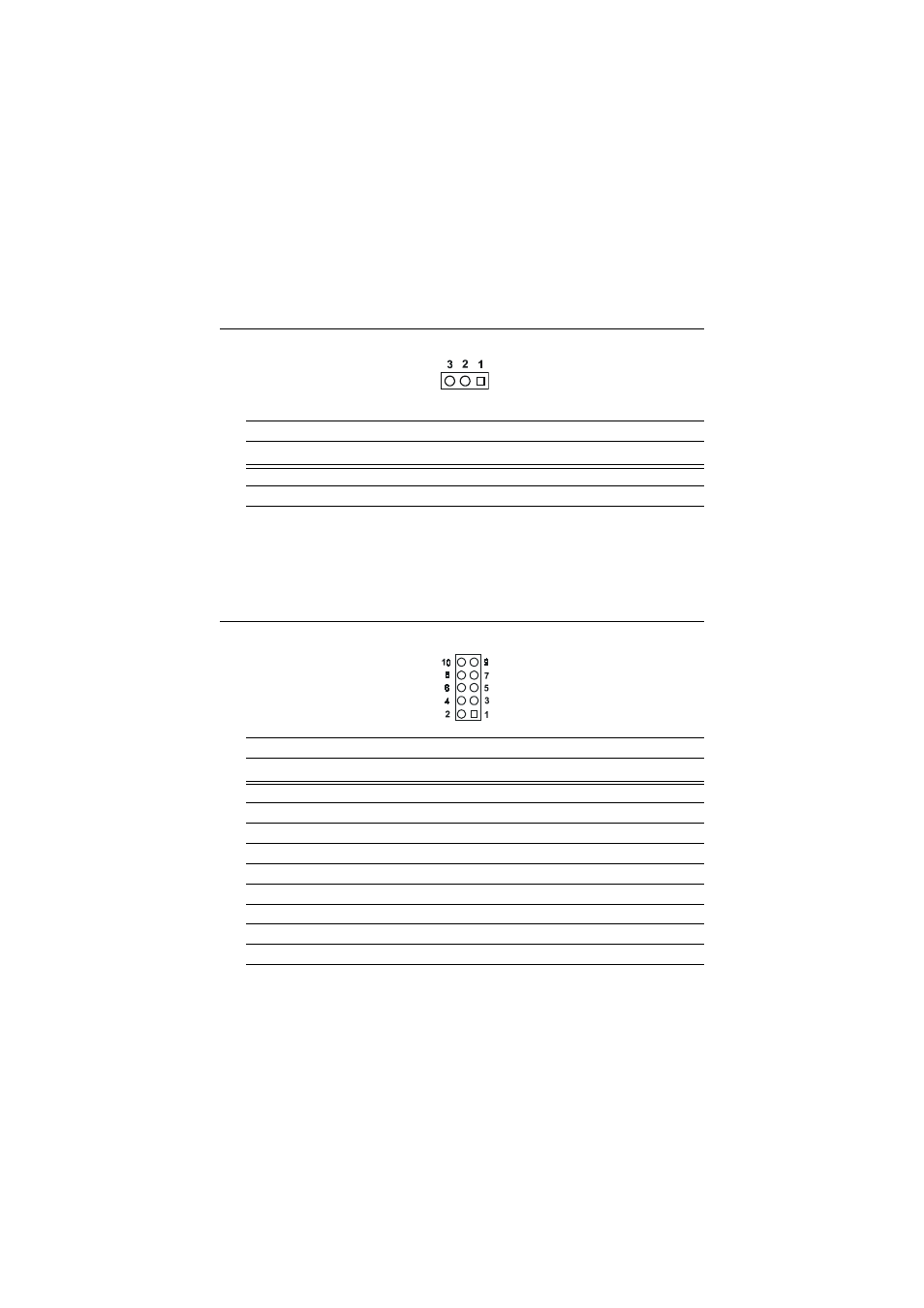

C.1 CPU Fan Power Connector (FAN 1)

C.2 Ethernet 10/100Base-T Connector (CN12)

Table C.1: IR connector (FAN 1)

Pin

Signal

1

Fan speed signal input

2

+5V

3

GND

Table C.2: Ethernet 10/100Base-T connector (CN12)

Pin

Signal

1

VCC

2

CRS LED

3

RCV+

4

RCV-

5

BNC LED

6

GND

7

N/C

8

GND

9

XMT+

10

XMT-
