3.5.6.4 IRQ Resources
3.5.6.4.1 IRQ-3/4/5/7/9/10/11/12/14/15 Assigned to
This item allows you to determine the IRQ assigned to the ISA bus and is not available to
any PCI slot. Legacy ISA for devices compliant with the original PC AT bus specification,
PCI/ISA PnP for devices compliant with the Plug and Play standard whether designed for
PCI or ISA bus architecture.
The choices: PCI Device, Reserved.
3.5.6.5 PCI / VGA Palette Snoop
Leave this field at Disabled.
The choices: Enabled, Disabled.
3.5.6.6 INT Pin 1/2/3/4/5/6/7/8 Assignment
This item is used to name the interrupt request (IRQ) line assigned to a device connected to
the PCI interface on the system.
The choices: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.
3.5.6.7 Maximum Payload Size
This item allows to set the maximum TLP payload size (unit in byte) for the PCI Express
devices.
The choices: 128, 256, 512, 1024, 2048, 4096.

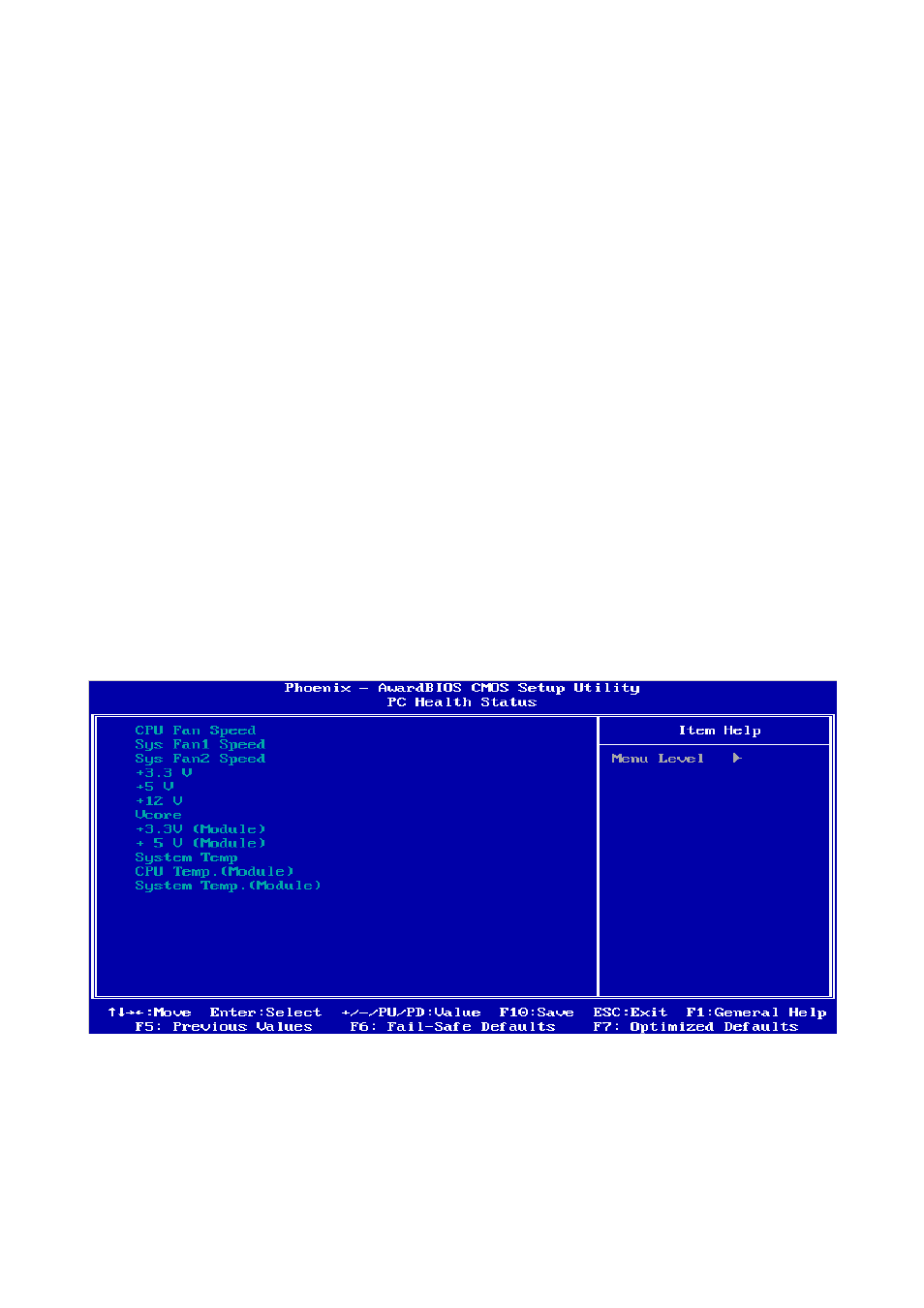

3.5.7 PC Health Status
This section shows the status of your CPU, Fan & System.
