24 ESM-2850 User’s Manual

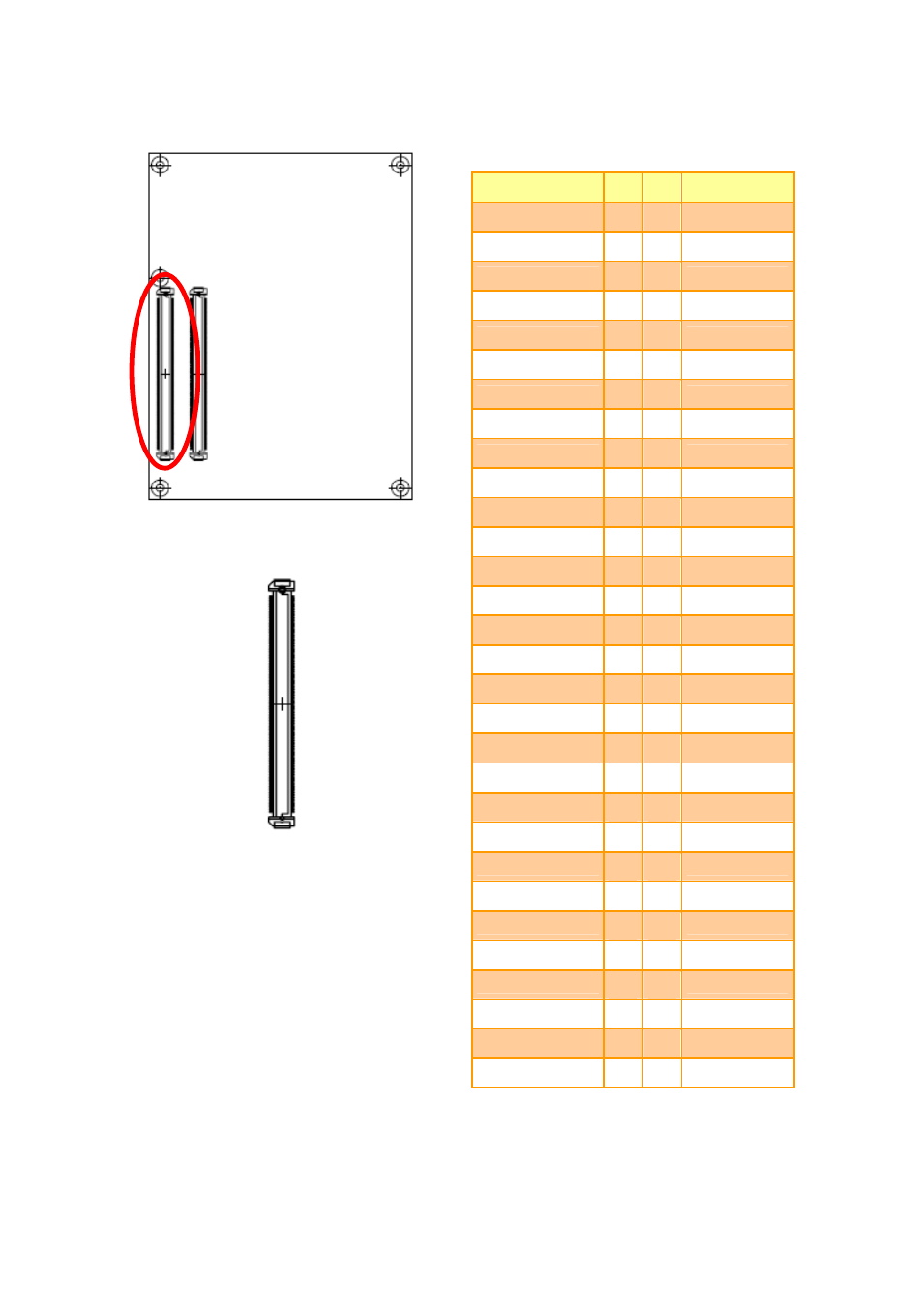

2.4.2 ETX Express Connector 1 (CN1A)
(Rear side)
Signal PIN PIN Signal
GND A1 B1 GND
GBE0_MD3- A2 B2 GBE0_ACT#
GBE0_MD3+ A3 B3 LPC_FRAME#
GBE0_Link100# A4 B4 LPC_AD0
GBE0_Link1000# A5 B5 LPC_AD1
GBE0_MD2- A6 B6 LPC_AD2
GBE0_MD2+ A7 B7 LPC_AD3
GBE0_Link# A8 B8 LPC_DRQ0#
GBE0_MD1- A9 B9 LPC_DRQ1#
GBE0_MD1+ A10 B10 LPC_CLK
GND A11 B11 GND
GBE0_MD0- A12 B12 PWRBTN#
GBE0_MD0+ A13 B13 SMB_CK
+2.5V A14 B14 SMB_DTA
SUS_S3# A15 B15 SMB_ALERT#
SATA0_TX+ A16 B16 SATA1_TX+
SATA0_TX- A17 B17 SATA1_TX-
SUS_S4# A18 B18 SUS_STAT#
SATA0_RX+ A19 B19 SATA1_RX+
SATA0_RX- A20 B20 SATA1_RX-
GND A21 B21 GND
SATA2_TX+ A22 B22 SATA3_TX+
SATA2_TX- A23 B23 SATA3_TX-
SUS_S5# A24 B24 PWR_OK
SATA2_RX+ A25 B25 SATA3_RX+
SATA2_RX- A26 B26 SATA3_RX-
BATLOW# A27 B27 WDT
ATA_ACT# A28 B28 AC_SDIN2
AC_SYNC A29 B29 AC_SDIN1
AC_RST# A30 B30 AC_SDIN0
