ESM-2850
20 ESM-2850 User’s Manual
2.2.1.2 Removing CPU
•
Unlock the Pentium M processor.
•
Carefully lift up the existing CPU to remove it from the socket.
•
Follow the steps of installing a CPU to change to another one.
2.2.2 Main Memory
ESM-2850 series provide two 200-pin SODIMM sockets to support DDR2 533 SDRAM.
The total maximum memory size is 1 GB.
Make sure to unplug the power supply before adding or removing DIMMs or
other system components. Failure to do so may cause severe damage to
both the board and the components.

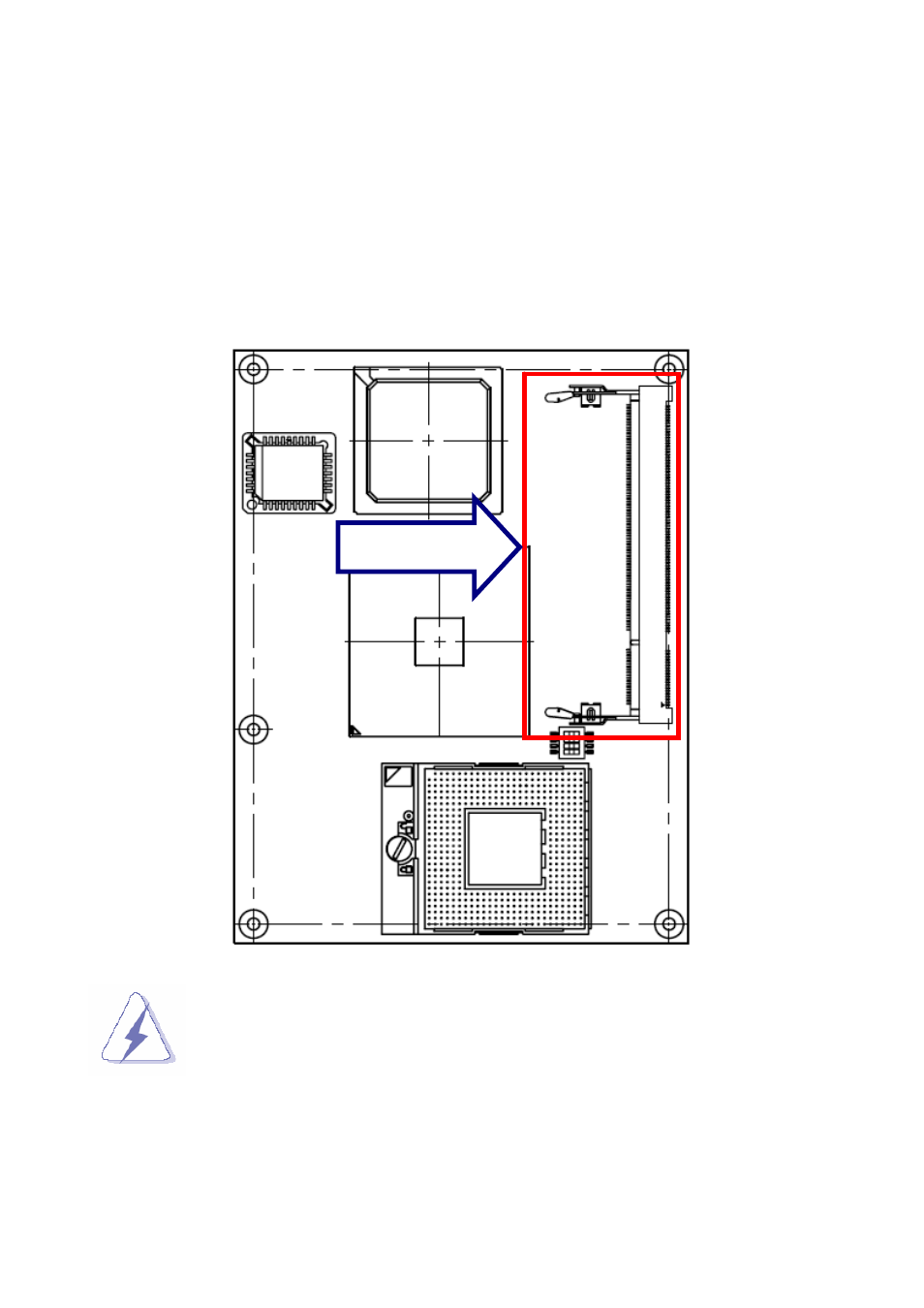

DIMM1
