37
In the SNMP field, type Y.
VLAN IDs Priorities Tags
Current Saved Current Saved
Ports Data VLANs are used only
Optics [0 ] [ 13 ] [0 ] [ 0 ] [ N ] if Tags are enabled on both
he Optics and Data Ports. Data [0 ] [ 0 ] [0 ] [ 0 ] [ Y ] t
Management VLAN.........................EXT Mgmt Tag
NMP....[0 ] [20 ] [0 ] [0 ] [ Y ] S
4. Press S or F3 to save the settings.
5. Type reboot.
Now the iMcV-Giga-FiberLinX-II is configured to pass only VLAN ID 13 from the
DATA port to the OPTICS (or UPLINK) port. Untagged packets arriving at the
OPTICS (or UPLINK) port (Tags = N) receive a tag (VLAN ID = 13) before being sent
out of the DATA port. The VLAN ID number used for a port must be different than
the number used for the Management VLAN ID tag (VLAN ID=20). The EXT MGMT
must have VLAN=20.
If Y is entered in the EXT MGMT Tag field, the VLAN ID for this port is the value in
the Management VLAN field. In this case, define a VLAN ID in the Management
VLAN field. If the unit is managed through the EXT MGMT port using untagged
frames, the Management VLAN does not need to be defined.

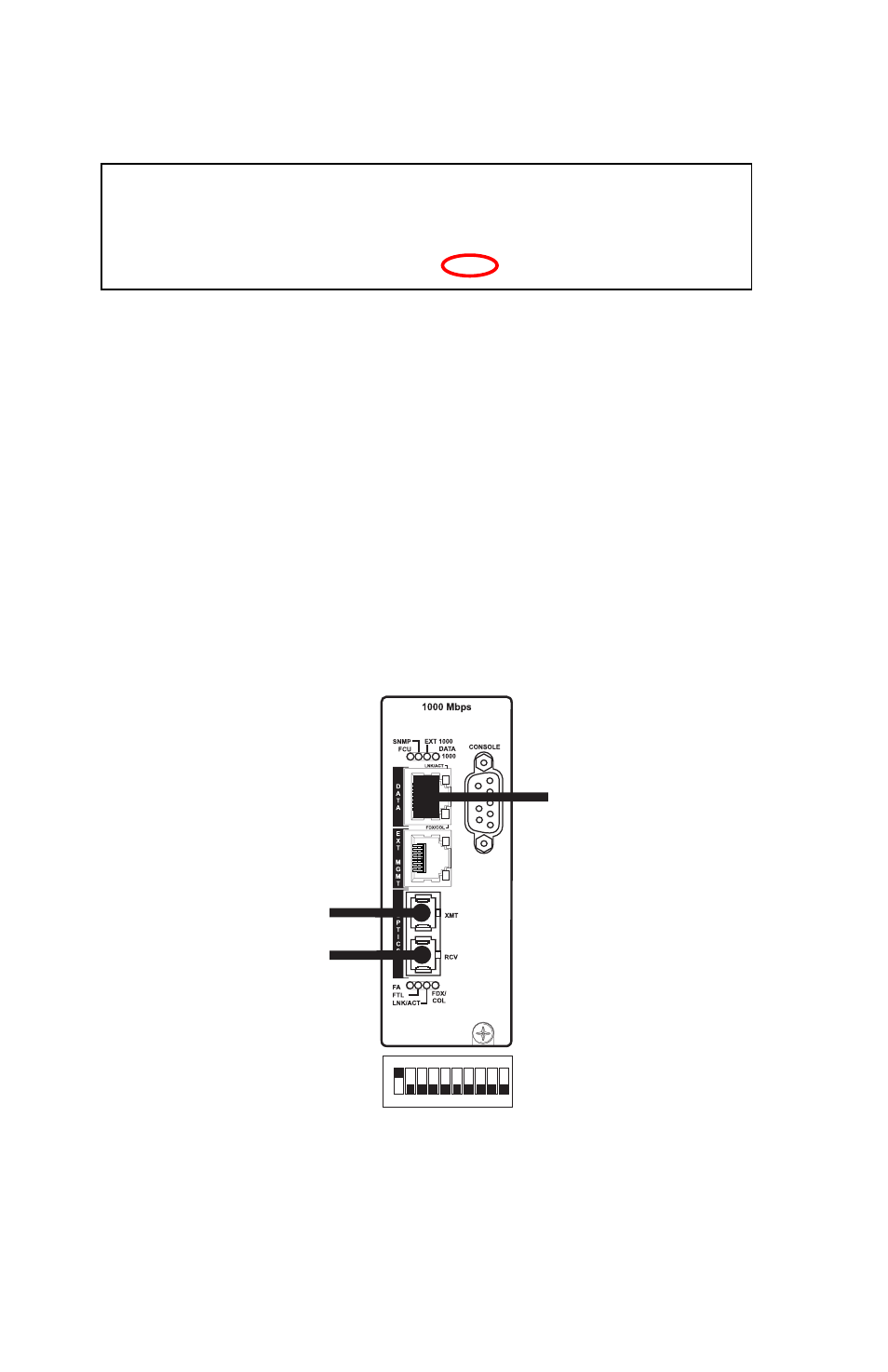

ON
S1
1 2 3 4 5 6 7 8 9 10
Giga-FiberLinX-II
DATA:
VLAN ID=13
EXT MGMT
VLAN ID=20
OPTICS:
Untagged
Data
1-EXT MGMT=ON
2-DATA=OFF
3-OPTICS=OFF
