Connecting the Speakers
When you have set the Multi-Channel Audio Function mode properly
in the software utility, connect your speakers to the correct phonejacks
in accordance with the setting in software utility.
„ 2-Channel Mode for Stereo-Speaker Output
When this mode is selected, it is recommended to attach the speakers
to the Line Out connector on the back panel instead of the Line Out
connector on the S-Bracket.

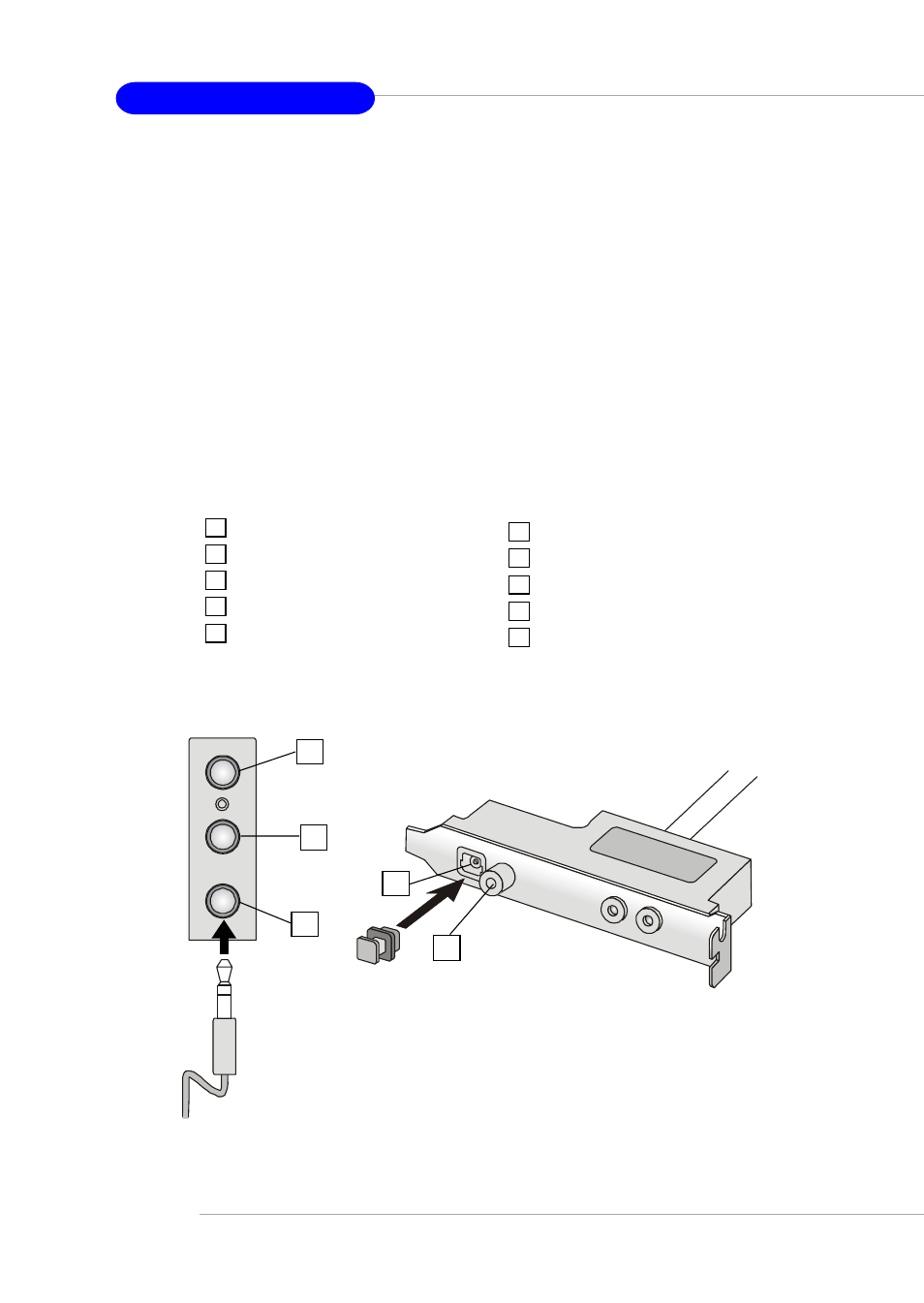

Refer to the following diagram and caption for the function of each
phonejack on the back panel when 2-Channel mode is selected.
1 MIC
2 Line In
3 Line Out (Front channels)
4 Optical SPDIF jack
5 Coaxial SPDIF jack
Back Panel
2
3
1
S-Bracket
4
5
Analog Output
1 MIC
2 Line In
3 Line Out (Front channels)
4 Optical SPDIF jack
5 Coaxial SPDIF jack
Digital Output
